CVRD series Conical Vacuum Ribbon Dryer For Pharmaceutical Industries
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | CVRD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | CVRD Series Conical Vacuum Ribbon Dryer For Pharmaceutical Industries | Application: | Powder Processing, Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing |
|---|---|---|---|
| Condition: | New Product 2021 | Place Of Origin: | Jiangsu, China |
| Power: | 380V | Key Selling Points: | Good Quality |
| Warranty: | 1 Year | Material: | Stainless Steel |
| Effective Volume: | 500-4000L | Stirring Speed: | 30-50rpm |
| Machine Type: | Conical Vacuum Dryer | ||
| Highlight: | Vacuum Drying Equipment,Vacuum Dryer |
||
Product Description
CVRD series Conical Vacuum Ribbon Dryer For Pharmaceutical Industries
Conical screw dryer is a vacuum contact dryer. Due to its contained closed system and indirect heating of the product it is particularly suited for drying hazardous and toxic products to a very low final moisture content. As a result of its unique, very gentle mixing character, even mechanically sensitive products are not destroyed. The product quality after the drying process is reproducible and as good as that of the initial product, whereas the driving forces required are very low.
The achievable, high endvacuum ensures low drying temperatures which is a clear advantage when drying temperature-sensitive products. It also ensures good heat transfer rates and short drying times, while at the same time requiring only little energy. The short drying times and the high containment level of the fully closed system make the conical dryer the best choice in instances where environmental and/ or product requirements are strict and remarkably high.
Product Features
- Strong applicablity: combined with the company's special drying process, can adapt to the viscosity, poor thermal penetration, easy ball, easy to hold together into a block of dry material.
- Production capacity: large capacity, the largest container can reach the effective volume of 80%.
- The high drying efficiency: effective heat transfer area, the container is 1.4 times the area of the material in the container, a spiral ascending, and them along the main axis of vortex was decreased, in the decentralized movement in uniform and effective heating head; high vacuum and high speed airflow at the bottom of combined with the material solvent away; dual channel vacuum pipe vacuum, to prevent clogging, reduce resistance, increase the pumping rate.
- It does not damage the material and product form: high requirements for heat sensitive products, shaped materials are not damaged. The drying process is fully sealed with nitrogen protection, no cross contamination, high cleanliness and high safety level. The gap between the mixer and the container wall is small, which can effectively prevent the material from stcking on the surface of the wall of the device.
- It meets the production requirements of sterile APIs: optional SIP and CIP online cleaning and online aseptic sampling. Sealed with the upper and lower process, the entire production process sealed production, to meet the requirements of the new version of GMP production.
Product Application
Taper ribbon blender widely used for powder, partilce raw material, it can also suit for mixing and stirring slurry, viscous raw material, it can equip the spraying system, it can be designed the vacuum state, under the pressure state, heating or cooling requirements as you requested. It meets requirements for mixing and stirring different kind raw material.
Technical Parameters
| Item | CVRD-500 | CVRD-750 | CVRD-1000 | CVRD-1250 | CVRD-1500 | CVRD-2000 | CVRD-3000 | CVRD-4000 |
| Effective volume | 500 | 750 | 100 | 1250 | 1500 | 2000 | 3000 | 4000 |
| Full volume | 650 | 800 | 1220 | 1600 | 1900 | 2460 | 3680 | 4890 |
| Heating area(m2) | 4.1 | 5.2 | 7.2 | 9.1 | 10.6 | 13 | 19 | 22 |
| Motor power(kw) | 11 | 11 | 15 | 15 | 18.5 | 22 | 30 | 37 |
| Net weight(kg) | 1350 | 1850 | 2300 | 2600 | 2900 | 3600 | 4100 | 4450 |
| Stirring speed(rpm) | 50 | 45 | 40 | 38 | 36 | 36 | 34 | 32 |
| Equipment height(m) | 3565 | 3720 | 4165 | 4360 | 4590 | 4920 | 5160 | 5520 |
| Container height(m) | 1455 | 1610 | 1965 | 2160 | 2300 | 2590 | 2380 | 3160 |
| Lug height(mm) | 895 | 995 | 1315 | 1480 | 1630 | 1860 | 1900 | 2240 |
| Boiler inner width(mm) | 1100 | 1200 | 1400 | 1500 | 1600 | 1750 | 2100 | 2100 |
| Installation lug width(mm) | 1270 | 1350 | 1560 | 1720 | 1900 | 2050 | 2400 | 2450 |
Product Structure

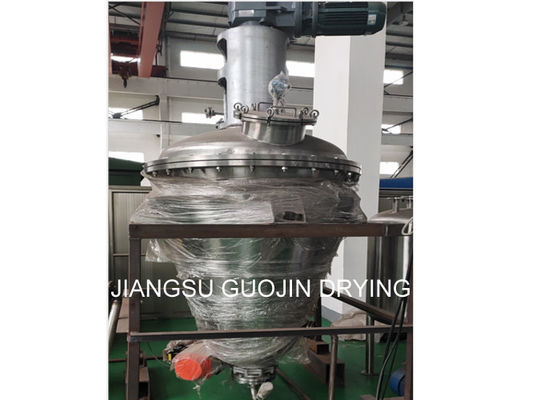

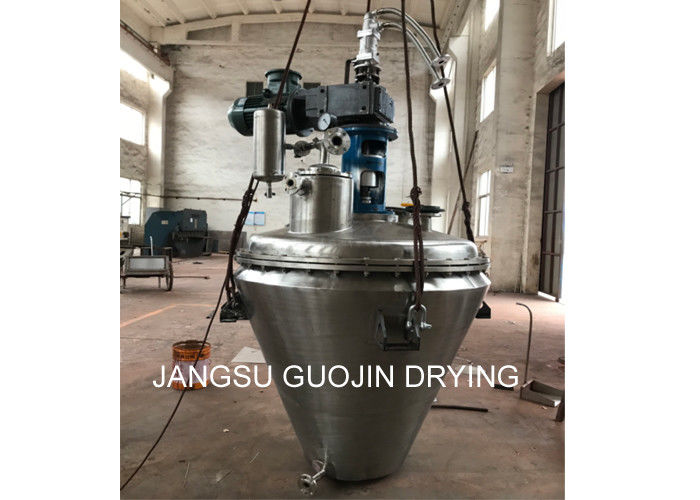

Product show
electrical, steam, natural gas or other
