Foodstuff Protein Powder Spray Dryer With PLC Control
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | CE, ISO |
| Model Number: | RWSD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Foodstuff Protein Powder Spray Dryer With PLC Control Spray Drying | Model Type: | Spray Dryer |
|---|---|---|---|
| Application: | Chemicals Processing | Voltage: | 220V - 450V |
| Power: | 9-99 | Certification: | ISO9001,CE |
| Key Selling Points: | Long Service Life | Warranty: | 1 Year |
| Material: | Stainless Steel / Carbon Steel | Rotary Speed: | 8000-25000 |
| Control: | PLC Touch Screen/button Type | Heating Source: | Electricity/LPG/Natural Gas/Oil/Steam |
| Inlet Air Temperature: | 140-350°C | Outlet Air Temperature: | 80-90°C |
| Highlight: | Foodstuff Protein Powder Spray Dryer,PLC Control Powder Spray Dryer,Foodstuff Protein Powder Spray Drying Machine |
||
Product Description
Foodstuff Protein Powder Spray Dryer With PLC Control spray Drying
| 1 | High speed centrifugal atomizer spray dryer / food spray dryer / industrial spary dryer |
| 2 | Liquid or slurry drying processor |
| 3 | Easy operation and control |
| 4 | Stainless steel |
Descriptions
RWSD food rotary spray dryer machine is widely applied in liquid process shaping and drying industry. It is a special drying equipment that is suitable for producing solid powder or practical products by drying liquid material like emulsion, suspension liquid, mash, liquor and so on. And it is a strong performer in drying polymer and resin; dye and pigment; ceramics, glass; rust remover; vermifuge; carbohydrate, dairy products; detergent and surfactant; fertilizer, organic compounds and inorganic compounds.
Application
High Speed Centrifugal Spray Dryer is widely used in foodstuff, pharmaceutical and chemical industry, such as egg powder, amino acid product, protein, blood, food flavor, food ingredients, pectin, carrageenan, spirulina, herbal extraction, pigment, cocoa, mushroom, PAC, malt dextrin, collagen, juice, yeast, Coffee, Creamer, coconut, milk, gelatin, gum and acacia etc.
Features and Outlines
Features
1. High speed of drying. After the spraying of the material liquid, the surface area of the material will be increased greatly. In the hot air flow, 95%-98% of water can be evaporated at the moment. The time of completing the drying needs only several seconds. It is especially suitable for drying the heat sensitive materials.
2. The final products own the good uniformity, mobility, and dissolving capacity. And the final products are high in purity and good in quality.
3. The production procedure is simple and the operational control easy. The liquid with the moisture contents 40-60%(for special materials, the contents may reach 90%.) can be dried into powder or particle products at a time. After the drying, there is no need for smashing and sorting, so as to reduce the operation procedures in the production and chance the product purity. The product particle diam enters, looseness and water contents can be adjusted through changing the operation codition in a certain scope, it is very convenient to carry out the control and management.
Outlines
1. Atomization: Atomizing system must ensure a uniform distribution of the fog drops, which is crucial to ensure a good qualified rate of products.
2. Contact of hot airflow and fog drops: when enough hot air enters into drying tower, the direction and angle of hot airflow have to be considered, no matter co-current flow, adverse current or mixed flow, must endure the sufficient heat exchange, it is crucial.
3. The angle design of pipelines and cone: It is very important to select the suitable angle, here we would like to share our experience and data from production of thousands of this equipment.
Technical Parameter
| Model | 5 | 25 | 50 | 100 | 150 | 200-10000 |
| Inlet temperature | 140-350 automatic control | |||||
| Outlet temperature | ~80-90 | |||||
| Max. moisture evaporation | 5 | 25 | 50 | 100 | 150 | 200-10000 |
| Centrifugal spray hear drive | Compressed air drive | Machanical drive | ||||
| Speed | 25000 | 18000 | 18000 | 18000 | 15000 | 8000-15000 |
| Spray disc diameter | 50 | 100 | 120 | 140 | 150 | 180-340 |
| Heat source | electric | electricity+steam | Electricity+steam,fuel,gas | Resolved by the user | ||
| Max. power of electric heating | 9 | 36 | 63 | 81 | 99 | |
| Outline dimension | 1.8x0.93x2.2 | 3x2.7x4.26 | 3.7x3.2x5.1 | 4.6x4.2x6 | 5.5x4.5x7 | Determined according to specific circumstances |
| Dry powder recovery | >95 | >95 | >95 | >95 | >95 | >95 |
What is the most suitable heating source supply ?
2. Electricity+steam
3. Electricity+steam/oil/gas
Notes: It can been settled by customers yourselves.
What is the different characteristic of centrifugal spray dryer from others ?
2. The tower body is provided with an automatic vibrating device.
3. The tower body, the pipeline is equipped with the quick opening cleaning hole and the sewage hole.
4. Automatic control of constant temperature feeding tank.
5. Manual high-pressure washing tower random accessories.
6. The part in contact with the material is made of stainless steel material (or all stainless steel manufacturing.
7. The material collection adopts the two-stage cyclone dust collector, or the first stage cyclone dust collector and the wet type dust collector.
8. Automatic control of inlet air temperature and continuous device.
9. Equipped with air sweep device.
In order to quota you the right rotary atomizer spray dryer price / rotary atomizer spray dryer / lab rotary atomizer type spray dryer price, we would like to get the following information include in your inquiry:
- -What is the raw material? Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.
- -What is the capacity per hour you need (kg/h)?
- -What is the initial moisture and final moisture of finished products you require to get?
- -What about the maximum heat temperature of raw material?
- -What kind of fuel you use to heat the dryer? Natural gas, electricity, fuel oil or steam?
- -Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?
- -Provide us your country’s electricity information, such as phases, voltage, HZ?
- -How about dust collect requirements?
- -Other special requirements?

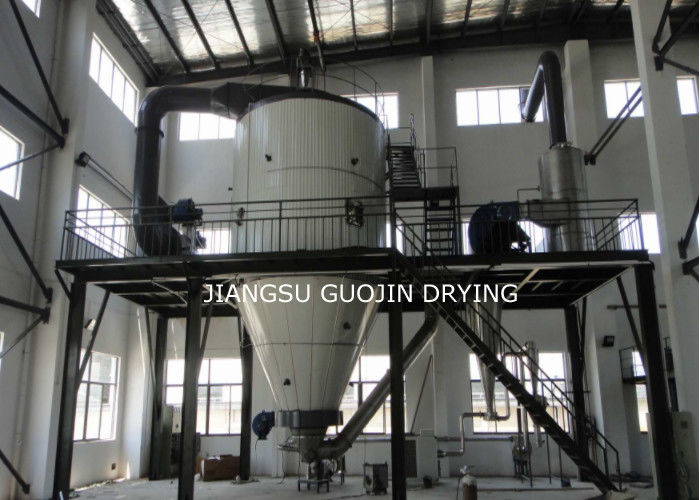

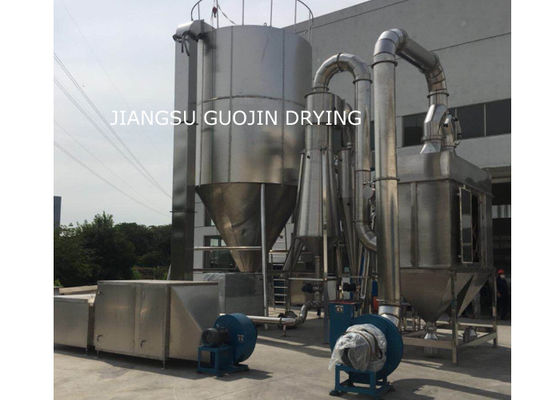

Product Show
