Lab Electrical Heating Rotary Extruding Pelletizer Machine 600kg/h
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | REG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | REG Lab Testing Rotary Extruding Pelletizer Machine | Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing |
|---|---|---|---|
| Condition: | New | Place Of Origin: | Jiangsu, China |
| Certification: | ISO9001 | Key Selling Points: | Long Service Life |
| Warranty: | 1 Year | Material: | Stainless Steel |
| Granulating Type: | Batch Granulating | Heating Source: | Electrical |
| Highlight: | Lab Pelletizer Machine,Pelletizer Machine 600kg/h,Electrical Heating Pelletizer Equipment |
||
Product Description
REG Lab Testing Rotary Extruding Pelletizer Machine
The REG rotary granulator is widely used in industries such as pharmacy, foods, medicinal granules, chemicals, and solid beverage. It can press the mixed substance into the demanded particles or smash wasted tablets and dried cubes and then roll them into particles. It is especially suitable for highly sticky substance. The part where the rotary granulator contacts with the substance is made of stainless steel. It possesses a beautiful appearance, proper structure, a high efficiency of particle formation. The particles are beautiful, too. It sends out substance automatically so as to avoid damage caused by manual sending, so it is suitable for line production. The roller blade and the swaging rotate in the opposite directions by means of mechanical rotation. The swaging leaf is placed at a certain angle to push the substance downward into the roller blade, then the large-angle helical blade pushes the substance into the sieve's wall, at last, the blade squeezes the substance into particles through the sieve pores.
1.The particle strength is not high, when the water is dispersed and rapidly dissolves;
2.It is very convenient to change the sieve into different diameter particles;
3.Extruded particles through a sieve mesh evenly.
Technical Parameters
| Size of miling knife(mm) | 250 | 300B | 30D |
| Granule diameter(mm) |
Ø2-2.2 according to custoemer's requrements |
Ø1.2-3 according to custoemer's requrements |
Ø0.5-6 according to custoemer's requrements |
| Overall dimensions(mm) | 700*540*1300 | 800*640*1300 | 1300*800*1200 |
| Motor power(kw) | 3 | 4 | 7.5-6 |
| Weight(kg) | 350 | 400 | 780 |
| Production capacity(kg/h) | 100-200 | 140-400 | 300-600 |

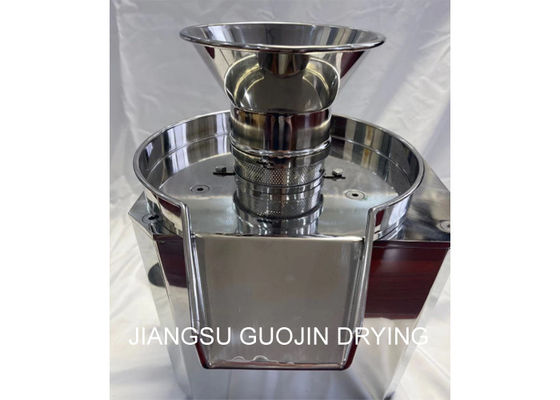

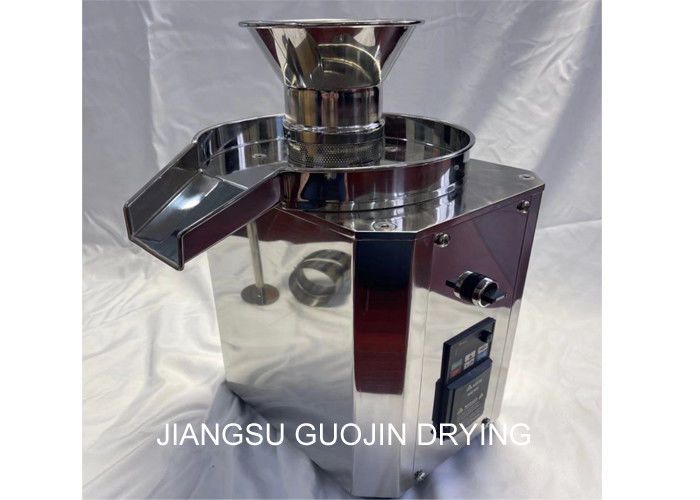

Product Detailed Images
Product Show
electrical, steam, natural gas or other
