CHPD Series Continous Hollow Paddle Dryer
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | CHPD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | CHPD Series Continous Hollow Paddle Dryer | Application: | Medicine Processing, Chemicals Processing, Plastics Processing |
|---|---|---|---|
| Condition: | New | Place Of Origin: | Jiangsu, China |
| Power: | Depand On The Model | Certification: | ISO9001 |
| Key Selling Points: | Long Service Life | Material: | Stainless Steel , Carbon Steel |
| Drying Type: | Continous Drying | Heating Source: | Steam,Thermal Oil |
| Rotating Speed: | 5-20 Rpm | Weight: | 4500-14000kg |
| Highlight: | Vacuum Drying Equipment,Vacuum Dryer |
||
Product Description
CHPD Series Continous Hollow Paddle Dryer
Paddle dryer consists of two rotating shafts with wedged paddles, jacketed drying chamber, drive motor and support frame. The drying process is completed in sealed drying chamber to prevent pollution by evaporated.
Paddle dryer is indirect heating drying processor. Heat medium can be steam, hot water or thermal oil which can flow through the hollow shafts and paddle via revolving joints, as well as jacketed drying chamber. Wet material is evenly fed into the drying chamber by screw feeder. With the rotation of two shafts and paddles, wet material is completely mixed and stirred to contact with the hot surface and move towards the discharge and heat transfer happens and moisture evaporates rapidly.
Product Working Principle
The exhaust gases can be treated by cyclone, condenser and scrubber to considerably reduce air contamination. For those wet materials of heat sensitive, easy oxidized, containing organic solvents which need to be recovered, vacuum design is available.
To evaporate 1kg of water only requires about 1.2kg of steam for slurry materials.
Product Feature
Low Operation Cost
- Easy to operate
- Requires minimal attention
- Simple instruments monitor the process
- High efficiency
- Low off-gas volume
Low Maintenance Cost
- Designed for high torque and low operating speed
- Simple durable design for easy and low maintenance
- No internal parts to adjust or maintain
- No metal to metal contact
- Shafts, pillow block bearings, and drive components are designed for long life under adverse conditions, insuring long term mechanical integrity
- Robust frame supports split pillow block bearings
- Grease-purged stuffing boxes. Alternate seal designs are available
Low Installation Cost
- Designed with compact structure
- Small off-gas system
- Vertical shaft removal reduces building size requirements
Technical Advantage
1) High thermal efficiency which can reach 95%
2) Heat transfer medium does not contact the product.
3) Gas is not used to convey the product. Off-gas flow is minimal.
4) Precise control of temperature
5) Uniform product quality, through mixing and movement of the product
6) Continuous process on a once-through basis
7) High heat transfer area to process volume ratio - reduced floor space
8) Easy to operate, requires minimal attention
9) Safer than direct drying when processing combustible material
10) Simple durable design for easy and low maintenance
11) Dual counter-rotating shafts with unique intermeshing discs produce intimate mixing, uniform heat transfer, a high heat transfer rate, and a self-cleaning effect.A large heat transfer area to volume ratio is achieved by the use of hollow discs and a jacketed vessel, through which the heating medium flows. The result is a compact machine with less space requirements and lower installation cost.
12) The KJG series Paddle Dryer transports material, regardless of its handling characteristics. Sticky, pasty materials can be transported. Pre-conditioning the feed by mixing with recycled dried product, to make it conveyable, is not required. This results in lower capital, operating, and maintenance cost.
HEAT SOURCES(Temperature at 180ºC - 250ºC)
Heating by Steam
Steam enters the hollow shaft through a rotary joint and is evenly distributed to all paddles. Condensate is removed with each revolution.
Heating by Hot Oil(thermal fluid)
Hot oil(thermal fluid) enters and exits the hollow shaft through a rotary joint. Pressure from the supply pump forces liquid through the hollow paddles.
Product Application
Blade dryer has been successfully used in food, chemical, petrochemical, dye, industrial sludge and other fields. Equipment heat, cooling, mixing features make it to complete the following unit operations: calcination (low temperature), cooling, drying (solvent recovery), heating (melting), response and sterilization. Mixing blades at the same time the heat transfer surface, the effective volume per unit area of heat transfer increases, reducing the processing time. Heat transfer surfaces in wedge-shaped blades with self-cleaning function. Compression - Expansion mixing features make the material mixed uniformly. Material along the axis into a "plug flow" movement, in the axial zone, the material temperature, humidity, mixing a very small degree of gradient.
1. Conducting oil to do with the heat medium, blade dryer to complete the work of low-temperature calcination. Such as: calcium sulfate dihydrate (Ca2SO4 · 2H2O) calcined into calcium sulfate hemihydrate (Ca2SO4 · 1/2H2O). Sodium bicarbonate (NaHCO3) into calcined soda (Na2CO3) and so on.
2. Pass into the cooling medium, such as water, salt, etc. can be used to cool the cooling. Such as: use of soda ash industry in blade-type cooler base machine to replace the old air-cooled cooler base machine, saving energy and exhaust gas processing equipment, lower operating costs, but also for titanium, nickel alloy powder and all kinds of powder granular materials cooling. On a single machine where the material can be cooled from 1000 °C to less than 40 °C.
3.Dry, the main function of equipment, do not use hot air to solvent recovery, energy consumption, environmental control is easy to deal with the ideal state. On the need to recover solvents, heat-sensitive materials, particularly flammable adapt easily oxidized. Has been widely used in fine chemical, petrochemical, dye industry.
4. Axial range, temperature, humidity, mixing degree of uniformity, so equipment can be used to heating or melting, or some solid material response. In the compound and modified starch industries have been successfully used. Blade dryer can be used to carry out sterilization of food and flour. Unit within the effective volume of a large heating area, will soon be material heated to sterilization temperature, to avoid prolonged heating change the quality of materials.
Application of Materials:
Petrochemical Industry: polyolefin powder, polycarbonate resin, high and low density polyethylene, linear low density polyethylene, polyacetal particles, nylon 6, nylon 66, nylon 12, cellulose acetate, polyphenylene sulfide, propylene base resin, engineering plastics, polyvinyl chloride, polyvinyl alcohol, polystyrene, polypropylene, polyester, polyoxymethylene, styrene ~ Acrylonitrile, ethylene propylene copolymer ~.
Environmental protection industry: PTA sludge, electroplating sludge into the water, boiler ash, pharmaceutical waste, sugar residue, glutamate factory waste, coal ash.
Feed Industry: soy sauce residue, bone-based feed, grains, food Scraps, apple, orange peel, soybean meal, chicken feed, fish meal, feed additives, bio-sludge
Food industry: starch, cocoa beans, corn kernels, salt, modified starch, pharmaceuticals.
Chemical industry: soda ash, NPK fertilizer, kaolin, bentonite, white carbon black, carbon black, phosphorus gypsum, oxidation of sodium fluoride, calcium nitrate, magnesium carbonate, sodium cyanide, aluminum hydroxide, barium sulfate, sulfuric acid , calcium carbonate, dyes, molecular sieve, saponin.
Technical Parameters
| Model | HPD-3 | HPD-9 | HPD-13 | HPD-18 | HPD-29 | HPD-41 | HPD-52 | HPD-68 | HPD-81 | HPD-95 | HPD-110 | HPD-125 | HPD-140 |
| Heat transfer area(m2) | 3 | 9 | 13 | 18 | 29 | 41 | 52 | 68 | 81 | 95 | 110 | 125 | 140 |
| Effective volume(m3) | 0.06 | 0.32 | 0.59 | 1.09 | 1.85 | 2.8 | 3.96 | 5.21 | 6.43 | 8.08 | 9.46 | 10.75 | 12.18 |
| Speed range(rpm) | 5-20 | 5-20 | 5-20 | 5-20 | 5-20 | 5-10 | 5-10 | 5-10 | 5-10 | 1-8 | 1-8 | 1-8 | 1-8 |
| Transmission power(kw) | 2.2 | 4 | 5.5 | 7.5 | 11 | 18.5 | 30 | 37 | 45 | 55 | 75 | 90 | 110 |
| Device width(m) | 306 | 584 | 762 | 940 | 1118 | 1296 | 1474 | 1655 | 1828 | 2032 | 2210 | 2480 | 2610 |
| Overall width(m) | 736 | 841 | 1066 | 1320 | 1474 | 1676 | 1854 | 2134 | 2186 | 2438 | 2668 | 2732 | 2935 |
| Equipment length(m) | 1956 | 2820 | 3048 | 3328 | 4114 | 4724 | 5258 | 5842 | 6020 | 6124 | 6850 | 7500 | 7860 |
| Total length(m) | 2972 | 4876 | 5486 | 5918 | 6808 | 7570 | 8306 | 9296 | 9678 | 9704 | 10300 | 11800 | 12900 |
| Center height(m) | 380 | 450 | 534 | 610 | 762 | 915 | 1066 | 1220 | 1430 | 1560 | 1650 | 1760 | 1856 |
| Total Equipment height(m) | 762 | 838 | 1092 | 1270 | 1524 | 1778 | 2032 | 2362 | 2464 | 2566 | 2668 | 2769 | 2838 |
Why choose Guojin?
- International high quality certification product chain.
- Manufacturer, more reasonable price.
- Solid technical support and after-sales service.
- Uphold the principle of “Customer Supreme”.
- Exports to more than 20 countries and regions, good customers feedback.
- One-stop service, customized exclusive project feasibility report
Frequently Asked Questions
Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year. Our company is near Shanghai.It only takes you about 1 hour to get Changzhou.Or we can visit you in Shanghai.
Q: What’s the quality of your products?
A:Parts of our products come with best quality, and our products passed CE certification, exported to lots countries around the world, such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.
Q: What to do if the machine has a problem?
A:24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
Q: How long is the warranty of your equipment?
A: Our warranty period is one year generally.
Q: What is your payment term?
A: Our usual payment term is: 30% TT in advance, 70% TT before shipment. Other ways can also be received after we both sides discussion and agreement.
Q: Does your price include freight?
A: Our usual price is based on FOB Shanghai, if you request CIF, please give us your delivery port, and we will give you CIF price.
Scketch of Structure

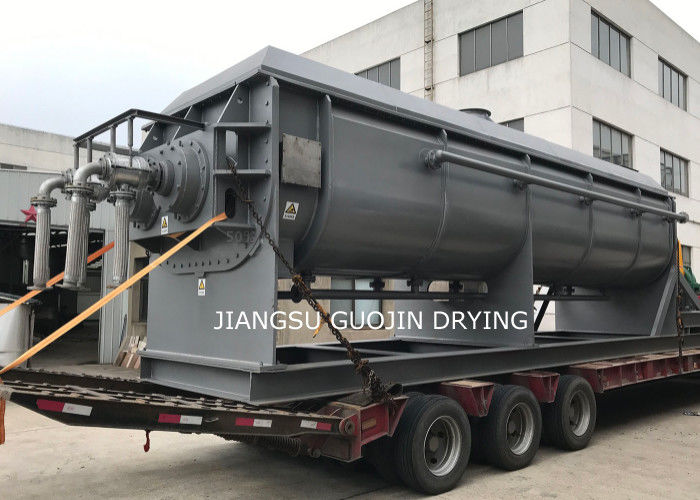

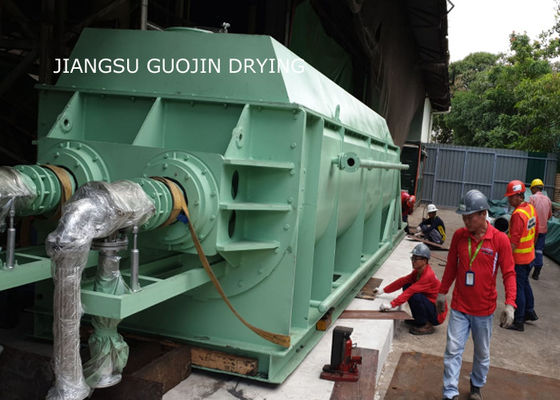

Product Show
