Small Nano Vacuum Protein Powder Milk Drying Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE;ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Type: | Vacuum Drying Equipment | Drying Capacity (kg): | 2 Kg |
|---|---|---|---|
| Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing | Condition: | New |
| Voltage: | 380V 50Hz | Power(W): | 120kw |
| Dimension(L*W*H): | 12500*8000*10000mm | Key Selling Points: | Easy To Operate |
| Warranty: | 1 YEAR | After-sales Service Provided: | Online Support, Video Technical Support |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts | Applicable Industries: | Food & Beverage Factory, Farms, Home Use, Food & Beverage Shops, Chemical Process |
| Local Service Location: | None | Showroom Location: | None |
| Weight: | 2kg | Material: | Stainless Steel |
| Usage: | Drying Wet Materials | Heating Source: | Electricity Steam |
| Temperature Range: | 40°C ~ 300°C Adjustable | Power Supply: | 220V50HZ(1phase 2wire)/380V/50HZ(3phase 4wire) |
| Feature: | High Efficiency Low Cost | Dryer Time: | 1~1.5s |
| Size: | 1300x650x800mm | ||
| Highlight: | Nano Milk Drying Machine,Protein Powder Milk Drying Machine,2000ml/h Milk Powder Dryer |
||
Product Description

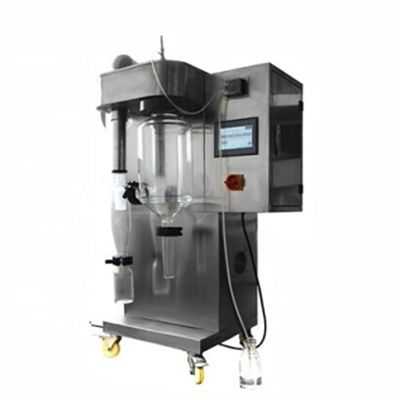

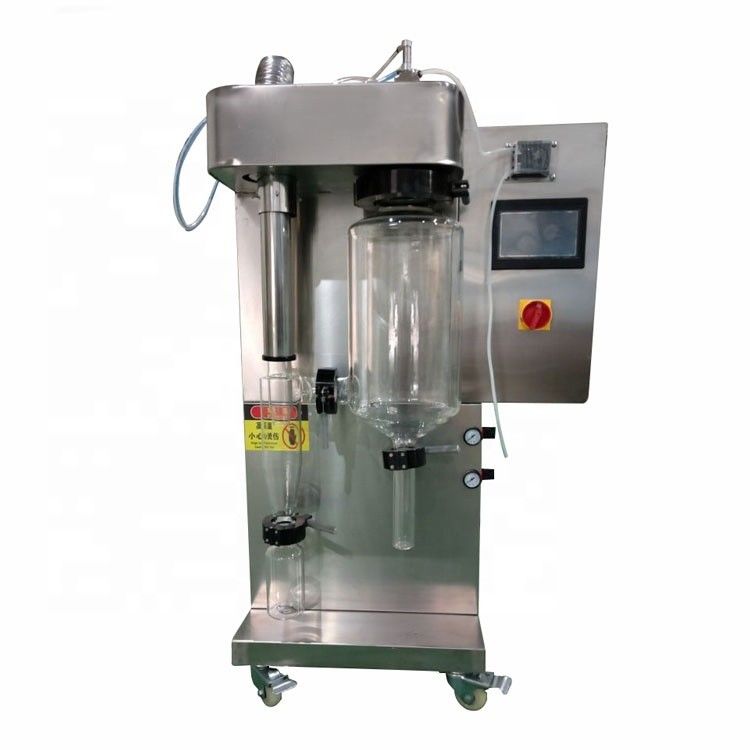

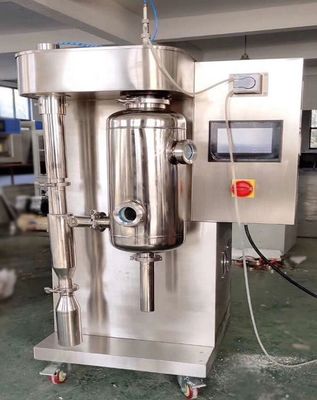

Small Nano Vacuum Protein Powder Milk Drying Machine
Nano whey protein powder small milk powder making machine spray dryer
Features
1. High efficient jet imported for spray drying equipment.
2. LCD touch screen displays temperature, airflow, air pressure, pump speed and jet cleaner frequency.
3. Auto controlling: one touch on/off, once processing parameters are set, peristaltic pump will be auto started; screen displays animation of the whole process of experiment.
4. Manual controlling is available, be able to adjust technical parameters during the process of experiment.
5. With jet cleaner (stylet), its frequency can be automatically adjusted.
6. Power off thermal-protection, push off button and the equipment will stop at once, except draught fan, make sure equipment won't be burned out by incorrect operation (Forcibly shut fan).
7. Spray chamber, cyclone separator, and receiving tank are all made of transparent heat-resistant high-borosilicate glass; it creates a no-pollution environment for the drying process. All the spare parts are easy to install and wash.
8. Build in oil-free air compressor. The sound is low than 60db, and following the GMP standards.
9. Two-flow spray atomizing structure, whole machine is made of high quality stainless steel, compact design no accessory equipment is needed.
10. Use PID controller, the accuracy of heating temperature is around±1°C.
11. A filter has been equipped to the inlet unit to prevent the sample from contamination.
12. The self-priming peristaltic pump delivers the sample liquid from a container through a small diameter jet into the main chamber to avoid secondary pollution. To make sure the process conducted steady and smoothly.
13. Narrow size distribution, more than 95% of the dry powders are in the same range of particles.
14. Automatic jet cleaner (stylet) prevents the jet from becoming blocked and variably controlled.
15. Innovative tower wall purging device, improves the material recycling rate
Working Principle
The air is filtered and heated into the top of the dryer air distributor, hot air into the spiral evenly into the drying chamber. The material liquid is sprayed into a fine atomized liquid droplet through the high-speed centrifugal nebulizer at the top of the tower body, and can be contacted with the hot air in a very short time and can be dried into finished products. The finished product is continuously discharged from the bottom of the drying tower and the cyclone, and the exhaust gas is drained by the draft fan.
Technical specification
|
Item
|
Unit
|
Milk spray dryer
|
|
Max capacity
|
ml/h
|
1500~2000
|
|
Temperature range of inlet air
|
℃
|
40°C -300°C
|
|
Adjustable
|
Yes
|
|
|
Temperature range of outlet air
|
℃
|
30°C ~ 140°C
|
|
Precision of temperature
|
℃
|
±1
|
|
Dryer time
|
S
|
1.0 ~ 1.5
|
|
Speed of squirt pump
|
ml/h
|
50-2000ml/h
|
|
Spray system
|
/
|
nozzle (0.75/1.0/1.5/2.0/2.5mm, base on your needs)
|
|
Spray direction
|
/
|
Downwards co-current
|
|
Heat source
|
/
|
Electric
|
|
Total power
|
/
|
3KW 220~230V
|
|
Dried powder restoring rate
|
%
|
≥95
|
|
Dimemsion
|
mm
|
1300x650x800mm
|
