Dry Powder Energy Saving Vacuum Belt Milk Drying Machine

Dry Powder Energy Saving Vacuum Belt Milk Drying Machine

Product Details:

Place of Origin: China
Brand Name: OEM
Certification: CE;ISO

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export Carton
Delivery Time: 20-30days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Get Best Price Contact Now

Detail Information

Type: Vacuum Drying Equipment Application: Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing
Condition: New Voltage: 3Phase/220v/380v/50Hz
Power(W): 25.5kw Dimension(L*W*H): 17300*2800*4150mm
Key Selling Points: Energy Saving Warranty: 1 YEAR
After-sales Service Provided: Online Support, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Engineers Available To Service Machinery Overseas Applicable Industries: Food & Beverage Factory, Pharmaceutical Factory
Application Material: For Food/chemical/pharmaceutical Industry Material: SS304 Steel
Low Temperature: The Drying Temperature Can Be Lower To 30 ℃ Drying Time: 30-90 Minutes
Dryer Features: Continuous Dryer Temperature: 30-150℃ Adjustable
High Theral Efficiency: Vacuum Belt Dryer Dryig Process: Continuous Feed-in,dry,granulate,discharge In Vacuum State
Weight: 42ton
Highlight:

Vacuum Belt Milk Drying Machine

,

Dry Powder Milk Drying Machine

,

Vacuum Belt Milk Powder Dryer

Product Description

Dry Powder Energy Saving Vacuum Belt Milk Drying Machine




Product Description

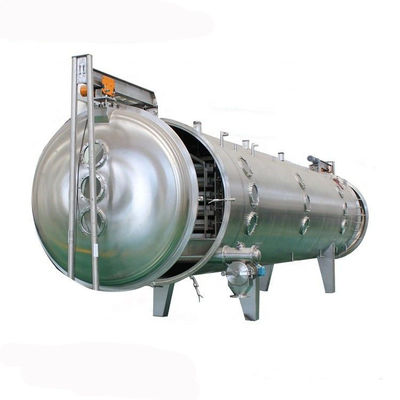

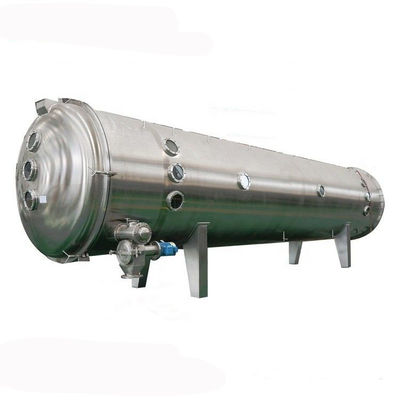

Vacuum belt dryer is a continuous infeed and discharge vacuum drying equipment. Liquid product is conveyed into dryer body by infeed pump, evenly spread on belts by distribution device. Under high vacuum, the boiling point of the liquid is lowered; water in the liquid material is evaporated. Belts move on the heating plates evenly. Steam, hot water, hot oil can be used as heating media. With the moving of the belts, the product goes through from the beginning evaporating, drying, cooling to discharging in the end. The temperature decreases through this process, and can be adjusted for different products. Special vacuum crusher is equipped at the discharge end to produce different size end product. The dry powder or granule product can be automatically packed or continue with subsequent process.

EQUIPMENT  ADVANTAGE:

1. Less labor cost and energy consumption
2. Little loss of product and solvent recycling possible
3. PLC automatic control system & CIP cleaning system
4. Good solubility & excellent quality of the products
5. Continuous feed-in, dry, granulate, discharge in vacuum state
6. Completely closed system and no contamination
7. Adjustable drying temperature (30-150℃)& drying time (30-60min)
8. GMP standards




Model

Diameter

Length

Height

Heating area

Moisture contentoffeeding material

Moisture content of dried product

Heating
resource

Water Evaporation

Dryer body
power



mm

mm

mm

Square meter

%

%



kg/h

kw

MJY30-4

1700

9800

2700

30

20-80
Mobility

0.2-5
Adjustable


Steam or Hot water or
Hot oil

15-25

10.00

MJY60-6

2200

10800

3650

60

45-55

14.00

MJY80-6

2200

13500

3650

80

60-75

14.50

MJY100-6

2200

16100

3650

100

80-90

15.50

MJY120-7

2200

16100

3650

120

100-110

16.50

MJY160-8

2800

17300

4100

160

120-140

18.50

MJY200-10

2800

17300

4150

200

160-180

25.50


If the solvent of raw material is organic (ethanol, acetone, methanol etc.),evaporation capacity would rise. Evaporation capacity is closely related with drying temperature.
Dry Powder Energy Saving Vacuum Belt Milk Drying Machine 0


Dry Powder Energy Saving Vacuum Belt Milk Drying Machine 1

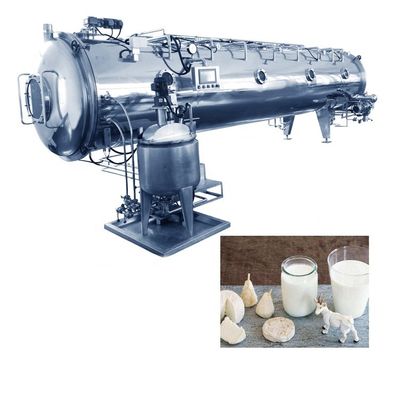

Vacuum belt dryer (VBD) is mainly used in drying many kinds of liquid or paste raw material, such as Traditional & western medicines, food, biological products, chemical material, health foods, food additive etc, especially suitable for drying material with high-viscosity, easy agglomeration, or thermoplastic, thermal sensitivity, or material that can not be dried by traditional dryer.



FAQ


Question 1: What is the working principle of vacuum belt dryer?
Answer:Vacuum belt dryer is a continuous infeed and discharge vacuum drying equipment. Liquid product is conveyed into dryer body by infeed pump, evenly spread on belts by distribution device. Under high vacuum, the boiling point of the liquid is lowered; water in the liquid material is evaporated under low temperature, thus protect active ingredients in the product.

Question 2: What is the cleaning way? Whether does the machine accord with GMP standards?
Answer:with CIP cleaning, vacuum belt dryer is the best choice for GMP performance.

Question 3: What kind of products can vacuum belt dryer dry?
Answer:all kinds of liquid material for vacuum belt dryer.

Question 4:How to ship vacuum belt dryer?
Answer: Flat Rack+container

Question 5:What is the delivery time?
Answer: 120 days
