Powder Centrifugal Atomizer Spray Drying Machine
Product Details:
| Place of Origin: | Spray Drying Series |
| Brand Name: | OEM |
| Certification: | CE;ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Model Type: | Spray Dryer | Condition: | 100% New |
|---|---|---|---|
| Steel Material: | Mainly Drying Material Contact Parts Are Stainless Steel | Color: | Carbon Spray Paint As Customers' Prefer |
| Atomizer Speed: | 8000-25000 Rpm, Adjustable | Heating Source: | Water, Heat-transfer Oil, Etc. |
| Electric Power: | 380V, 50Hz, 3 Phase | Warranty: | 1 Year |
| Type: | Spray Drying Equipment | Application: | Chemical,Food Processing,Medicine Processing,Industry |
| Highlight: | Atomizer Spray Drying Machine,Centrifugal Spray Drying Machine,25000rpm Spray Drying Equipment |
||
Product Description
Powder Centrifugal Atomizer Spray Drying Machine
Brief Introduction of Spray Dryer:
| Item Name |
Economical and Practical type electricity and steam heating centrifugal spray dryer |
| Common Size |
The max size we supply before is LPG-7000, the spraying desc is 7m. |
| Rotarion Speed | the rotary speed can been adjustable from 8000 rpm to 25000 rpm. |
| Dried Powder Collecting | more than 95% |
| Kinds of Spray Dryer |
(1). Centrifugal spray (3). Traditional Chinese medicine spray
(4). Air spray
|
How is the centrifugal spray dryer work ?
The air is filtered and heated into the top air distributor in the top of the dryer. The hot air is spirally and uniformly into the drying chamber. The high speed centrifugal atomizer at the top of the tower is made into very fine mist droplets and can be dried in a very short time with the hot air. The finished product is continuously made of the bottom and spin of the drying tower. In the air separator, the exhaust gas is emptied by the fan.
If indeed, you can also contact us and ask for an animation demo version.
What is the different characteristic of centrifugal spray dryer from others ?
- The tower body has cold wind jacket.
- The tower body is provided with an automatic vibrating device.
- The tower body, the pipeline is equipped with the quick opening cleaning hole and the sewage hole.
- Automatic control of constant temperature feeding tank.
- Manual high-pressure washing tower random accessories.
- The part in contact with the material is made of stainless steel material (or all stainless steel manufacturing.
- The material collection adopts the two-stage cyclone dust collector, or the first stage cyclone dust collector and the wet type dust collector.
- Automatic control of inlet air temperature and continuous device.
- Equipped with air sweep device.
Why choose the centrifugal spray dryer to drying ?
- The drying speed is fast and the surface area of the liquid is greatly increased after atomization. In the hot air flow, 95% -98% moisture can be evaporated instantly. The drying time is only a few seconds, which is especially suitable for the drying of thermos-sensitive materials.
- The product has good uniformity, fluidity and solubility, high purity and good quality.
- Simplified production process, easy operation and control. For 40-60% moisture content (special materials up to 90%) liquid can be dried into powder products, control and management are very convenient.
How many pieces of selection informations we need ?
You can choose to fill in the selection form as following:

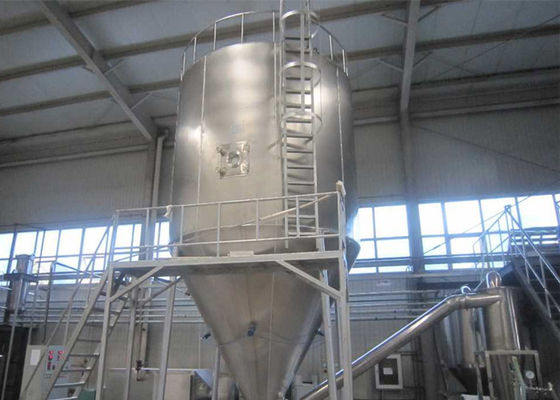

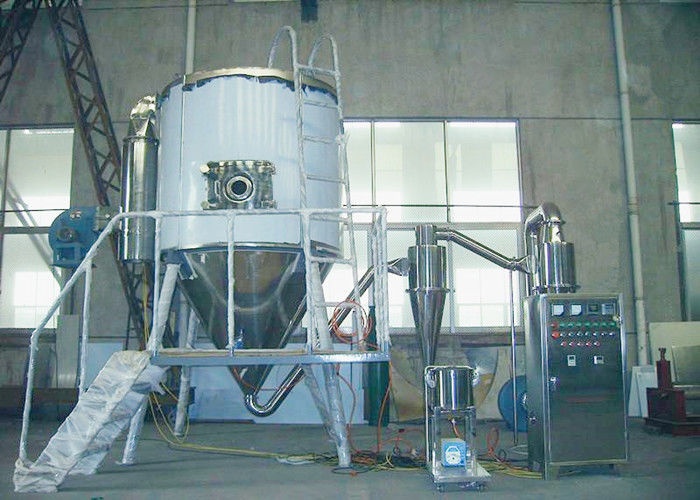

Pictures of Centrifugal Spray Dryer:
