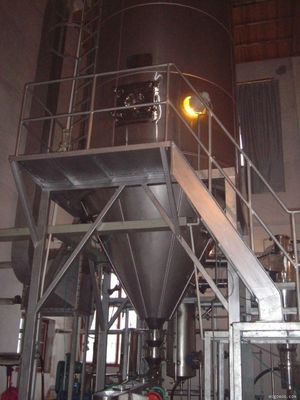

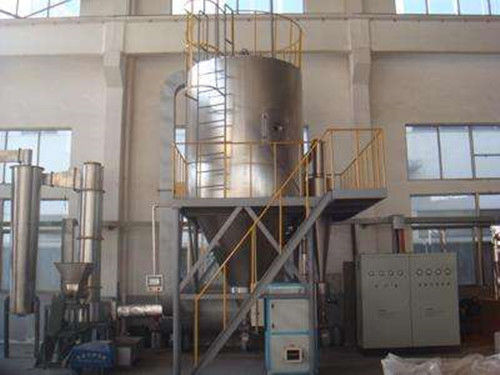

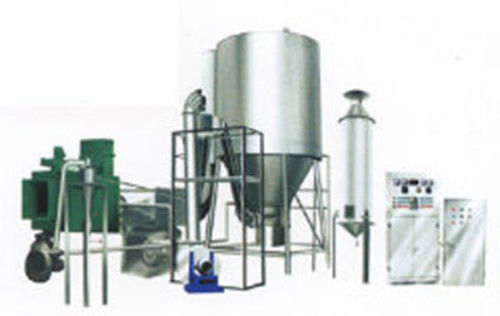

Stainless Steel Tower 100Kg/H Spray Drying Machine
Product Details:
| Place of Origin: | Spray Drying Series |
| Brand Name: | OEM |
| Certification: | CE;ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Type: | Spray Drying Machine | Water Evaporation Capaciy: | 100 Kg/h |
|---|---|---|---|
| Electric Power: | 153 Kw | Heat Source: | Steam Pius Electricity |
| Inlet Air Temperature: | 150-200 ℃ | Outlet Air Temperture: | 80-100 ℃ |
| Overall Dimension: | 11000 Mm*6200 Mm*8100 Mm | Warranty: | 1 Year |
| Condition: | New | Certification: | CE ISO |
| Application: | Chemical,Food Processing,Medicine Processing | Material: | Stainless Steel |
| Highlight: | 100Kg/H Spray Drying Machine,Stainless Steel Spray Drying Machine,100Kg/H Spray Drying Equipment |
||
Product Description
Stainless Steel Tower 100Kg/H Spray Drying Machine
Technical Parameters:
| Spec | spray drying machine |
| Overall Dimension | 11000 mm*6200 mm*8100 mm |
| Water Evaporation Capacity | 100 kg/h |
| Process Amount of Material Liquid | 100-135 kg/h |
| Output of Finished Product | 18.4-28 kg/h |
| Solid Content of Material Liquid | 18-25 % |
| Moisture Content of Finished Product | 3-5 % |
| Electric Power | 153 kw |
| Inlet Air Temperature | 150-200 ℃ |
| Outlet Air Temperture | 80-100 ℃ |
Descriptions:
Traditional Chinese medicine medicinal extract special-purpose to spray desiccator to absorb to suitable for point low, high in candy content traditional Chinese medicine dry machinery of product foreign technological development, is it glue wall, supplies coking, difficult to inhale such characteristics as the tide, etc. to have. This device confirms and sprays the dry process conditions according to characteristic and nature of the dry products, the automatic degree is high, easy to operate, accord with GMP demand, the success development of this device, solving low traditional Chinese medicine products high in candy content of wanting a lot of to melt in year more can’t use and spray the dry technological difficult point, it is a new development of dry application technical research in traditional Chinese medicine pharmacy to spraying too
Features:
1. Tower body has jacket of air.
2. Tower body is equipped with automatic vibration and beating device.
3. Tower body and pipe line have cleaning hole and sewage discharge hole that can open quickly.
4. Thermostat ending tank.
5. Accompanied parts of high pressure washing tower.
6. The parts that can contact with raw material are made of stainless steel fully.
7. The collecting of raw material adapts two grade cyclone duster or one-grade cyclone duster and one-grade damp duster.
8. The temperature of inlet air can be controlled automatically and continuously.
9. Equipped with air sweeping device.
