Large Capacity Dense Phase Pneumatic Conveying System PLC Controlled
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | DPCS-1.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 sets per month |
|
Detail Information |
|||
| Product Name: | Large Capacity Dense-Phase Pneumatic Conveying Machinery Transfer System | Model: | DPCS-1.5 |
|---|---|---|---|
| Body Inner Diameter Volume: | 1200mm | Total Volume: | 1.5 M3 |
| Operation Temperature: | <120 Degree | Max. Design Pressure: | 0.78 Mpa |
| Operation Pressure: | Basis On The Conveying Distance | Max. Conveying Distance: | <1000Meter |
| Outlet Conveying Diameter: | DN 100 | Air Consumption: | 5-10 M3/min |
| Highlight: | PLC Dense Phase Pneumatic Conveying System,Large Capacity Pneumatic Conveying System,10m3/min Dense Phase System |
||
Product Description
Large Capacity Dense-Phase Pneumatic Conveying Machinery Transfer System
Dense-phase pneumatic conveying system is specially applied to a variety of dust long-distance sealed transport; the adaptive conveying distance equivalent is 50-500 meters, transport materials: fly ash, lime powder, cement, aluminum powder, mineral powder, saw dust, straw and so on. The equipment is simple, with small occupation area, it can make full use of space, and pipelines can be flexible layout, so that the configuration of the plant equipment will be more rational. System configuration is complete, PLC set control the entire system, fully automated operation, easy maintenance.
Product Features
1) It is suitable for scattered transportation from one place to several places. That is, the feed point is one, and the discharge point can be one or more.
2) Compared with the suction type, the concentration and transport distance can be greatly increased.
3) Under the condition of positive pressure, the material is easily removed from the discharge port, so the structure of separator and precipitator is simple, and generally there is no need to lock the air.
4) Blower or air compressor at the first end of the system, requiring low level of air purification.
5) Under the positive pressure, the material is not easy to enter the conveying pipe, so the structure of the feeding device is more complicated.
6) The material runs in the closed tube, does not raise dust, and the environment is clean and tidy.
7) Low energy consumption and low noise.
8) The pipeline layout is flexible and covers a small area.
9) Can be long-distance transmission, up to more than 500 meters.
Product Paremeter
| Model | DPCS-1.5 |
| Body Inner diameter(mm) | 1200 |
| Total volume(M3) | 1.5 |
| Body material | Q235-B |
| Operation Temperature(oC) | <120 |
| Max. design pressure(Mpa) | 0.78 |
| Operation pressure(Mpa) | 0.2-0.5(Basis on the conveying distance) |
| Max. conveying distance(m) | <1000 |
| Outlet conveying diameter | DN100 |
| Air consumption(m3/min) | 5-10 |
Structure composition

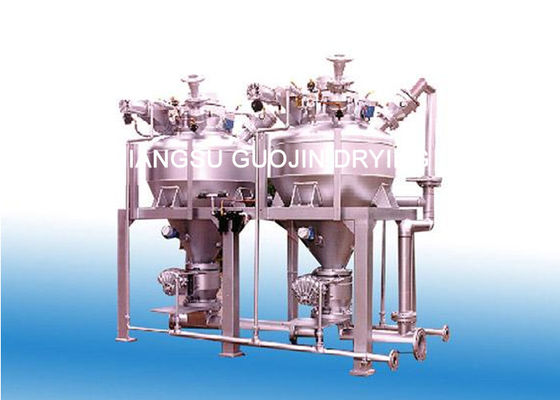

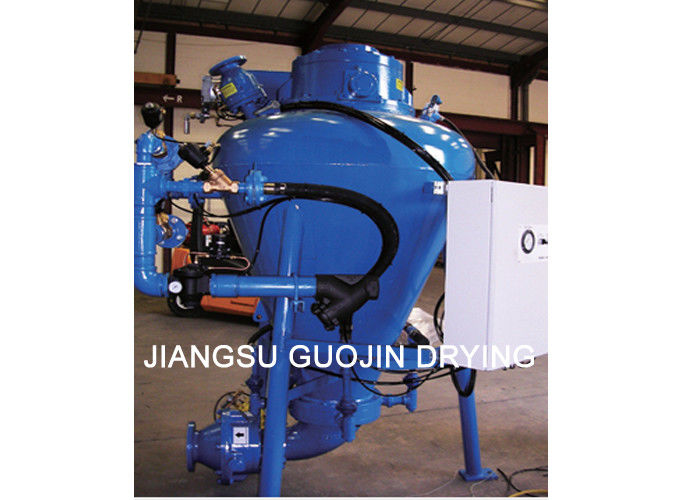

Product Picture
