Roots Blower Small Particle Grains Pneumatic Conveyor 17m Suction
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | PCS-30 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 sets per month |
|
Detail Information |
|||
| Product Name: | Environmental Roots Blower 17m Suction Small Particle Grains Pneumatic Conveyor | Model: | PCS-30 |
|---|---|---|---|
| Max Delivery Volume: | 30 | Roots Blower Model (Caliber): | 200 |
| Blower Power: | 45KW | Discharger Power: | 3 KW |
| Diameter Of Feeder Pipe: | 200 MM | Suction: | 17 M |
| Height Of Discharger: | 3 M | ||
| Highlight: | Small Particle Grains Pneumatic Conveyor,17m Suction Pneumatic Conveyor,Roots Blower Pneumatic Conveying System |
||
Product Description
Environmental Roots Blower 17m Suction Small Particle Grains Pneumatic Conveyor
Pneumatic Conveying System uses compressed air or gas as the medium to transfer the bulk materialswith pipe from position A to position B. It is helpful to production and environmental protection.
These materials are dry pulverized or free flowing or light powdery materials like cement, fly ash / aluminium / zinc / calcine / clinker dust / sand / bentonite / sinter dust, etc. for industries like Cement / Steel / Paper / Foundry / Chemical / Process, etc.
Working Principle

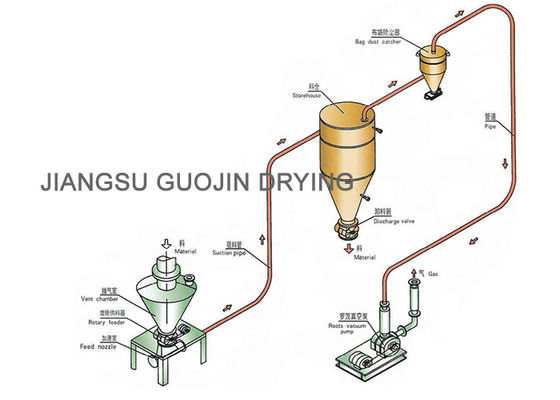

Its working principle is negative pressure air stream generated by the high pressure blower though the suction nozzle, suctioning the materials into the hose tube, then materials through the separation tube, air and material separated, material fell off into the air locker downward, then materials will be conveyed to the required place by positive pressure air flow. The air separated will go into the blower through the separator tube or the dust collector.
Product Features
1.Strong power and big conveying quantity
Pneumatic Conveyor has been exported to different countries as Russia, Saudi Arab, Iran, South Africa, Kenya, Ghana, Philippine, Thailand, Malaysia, Indonesia, Vietnam, Mexico and so on.
2.Flexible application and grain hanging conveyor
3. Advanced technology and cost-saving
4. Safe and simple installation and commissioning.
5. Simple structure and less&easy maintenance.
6. High efficiency and energy-saving.
7. Easy operation.
Product Paremeter
| Model | PCS-30 |
| Max delivery volume (m3/h.When the proportion is 1:1) | 30 |
| Roots Blower Model (Caliber) | 200 |
| Blower power(kw) | 45 |
| Discharger power(kw) | 3 |
| Diameter of feeder pipe(mm) | 200 |
| Suction(m) | 17 |
| Height of discharger(m) | 3 |

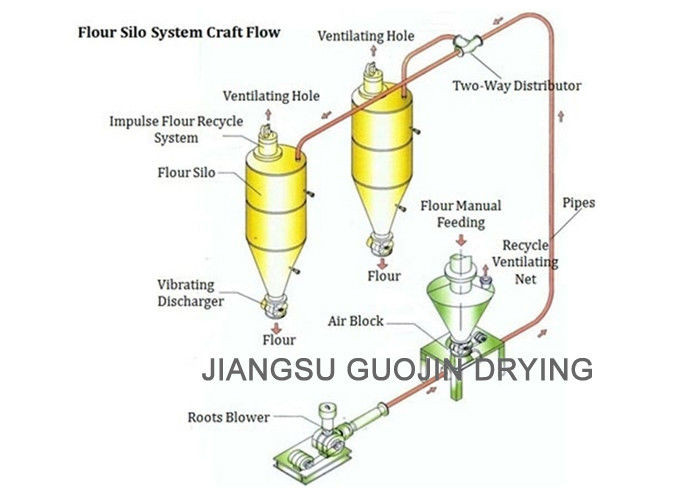

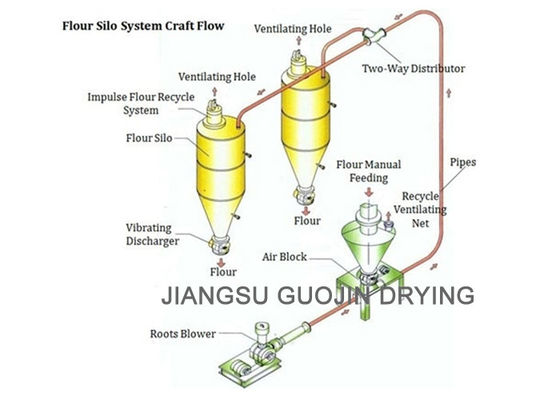

Product Picture
