Large Capacity Dense Phase Pneumatic Conveying Machinery 1.0M3 Volume
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | DPCS-1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 sets per month |
|
Detail Information |
|||
| Product Name: | 1.0M3 Volume Large Capacity Dense-phase Pneumatic Conveying Machinery | Model: | DPCS-1.0 |
|---|---|---|---|
| Body Inner Diameter Volume: | 1000mm | Total Volume: | 1.0 M3 |
| Operation Temperature: | <120 Degree | Max. Design Pressure: | 0.78 Mpa |
| Operation Pressure: | Basis On The Conveying Distance | Max. Conveying Distance: | <1000 Meter |
| Outlet Conveying Diameter: | DN 100 | Air Consumption: | 5-10 M3/min |
| Highlight: | Dense Phase Pneumatic Conveying Machinery,1.0M3 Volume Pneumatic Conveying Machinery,Q235B Pneumatic Transfer System |
||
Product Description
1.0M3 Volume Large Capacity Dense-phase Pneumatic Conveying Machinery
Dense phase transport, also known as airflow transport, utilizes the energy of the airflow to transport particulate material along the airflow direction in a closed duct. It is a specific application of fluidization technology. The pneumatic conveying device is simple in structure, easy to operate, and can be used for horizontal, Vertical or oblique transport, physical or chemical operations such as heating, cooling, drying and gas grading of materials can be carried out simultaneously during transport. Materials which has a lot of water content, and it has adhesiveness or materials which are easy to generate static electricity during high-speed movement are not suitable for pneumatic conveying.
Product Features
1) It is suitable for scattered transportation from one place to several places. That is, the feed point is one, and the discharge point can be one or more.
2) Compared with the suction type, the concentration and transport distance can be greatly increased.
3) Under the condition of positive pressure, the material is easily removed from the discharge port, so the structure of separator and precipitator is simple, and generally there is no need to lock the air.
4) Blower or air compressor at the first end of the system, requiring low level of air purification.
5) Under the positive pressure, the material is not easy to enter the conveying pipe, so the structure of the feeding device is more complicated.
6) The material runs in the closed tube, does not raise dust, and the environment is clean and tidy.
7) Low energy consumption and low noise.
8) The pipeline layout is flexible and covers a small area.
9) Can be long-distance transmission, up to more than 500 meters.
Product Paremeter
| Model | DPCS-1.0 |
| Body Inner diameter(mm) | 1000 |
| Total volume(M3) | 1.0 |
| Body material | Q235-B |
| Operation Temperature(oC) | <120 |
| Max. design pressure(Mpa) | 0.78 |
| Operation pressure(Mpa) | 0.2-0.5(Basis on the conveying distance) |
| Max. conveying distance(m) | <1000 |
| Outlet conveying diameter | DN100 |
| Air consumption(m3/min) | 5-10 |
Structure composition

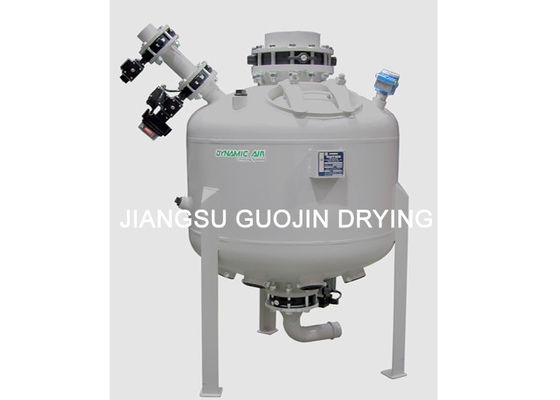

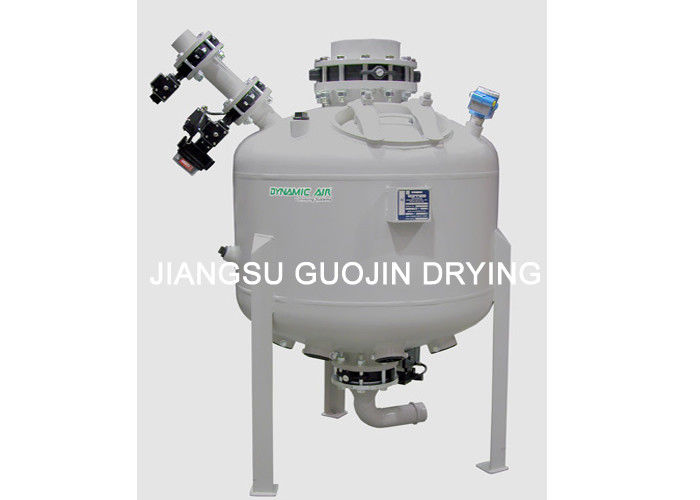

Product Picture
