Dense Phase Pneumatic Conveying System 1.0M3 Volume
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | DPCS-1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 sets per month |
|
Detail Information |
|||
| Product Name: | Cement Powder Dry Fly Ash Dense Phase Pneumatic Conveyor | Model: | DPCS-1.0 |
|---|---|---|---|
| Body Inner Diameter Volume: | 1000 MM | Total Volume: | 1.0 M3 |
| Operation Temperature: | <120Degree | Max. Design Pressure: | 0.78Mpa |
| Operation Pressure: | Basis On The Conveying Distance | Max. Conveying Distance: | <1000 Meter |
| Outlet Conveying Diameter: | DN100 | Air Consumption: | 5-10 M3/min |
| Highlight: | Pneumatic Conveying System 1.0M3 Volume,Horizontal Pneumatic Conveying System,Dense Phase Pneumatic Conveyor |
||
Product Description
1.0M3 Volume Dense-Phase Pneumatic Conveying Machine
Dense phase transport, also known as airflow transport, utilizes the energy of the airflow to transport particulate material along the airflow direction in a closed duct. It is a specific application of fluidization technology. The pneumatic conveying device is simple in structure, easy to operate, and can be used for horizontal, Vertical or oblique transport, physical or chemical operations such as heating, cooling, drying and gas grading of materials can be carried out simultaneously during transport. Materials which has a lot of water content, and it has adhesiveness or materials which are easy to generate static electricity during high-speed movement are not suitable for pneumatic conveying.
Product Features
1. Pneumatic conveying system are relatively economical to install and operate
2. Pneumatic conveying system are totally enclosed and if required can operate entirely without moving parts coming into contact with the conveyed material. Being enclosed there are hygiene & cleanlinesss benefits
3. A pneumatic conveying system can convey a product to any place with tubes. its flexible.
4. Pneumatic conveying system offer greatly reduced capital cost for long distance conveying.
5. Pneumatic Conveying System are much better suitable to powder handling than mechanical conveyor because the conveyance channels used in pneumatic conveyors are completely enclosed.
6.Pneumatic conveyors can be designed to move products between floor levels and around difficult angles.
Product Paremeter
| Model | DPCS-1.0 |
| Body Inner diameter(mm) | 1000 |
| Total volume(M3) | 1.0 |
| Body material | Q235-B |
| Operation Temperature(oC) | <120 |
| Max. design pressure(Mpa) | 0.78 |
| Operation pressure(Mpa) | 0.2-0.5(Basis on the conveying distance) |
| Max. conveying distance(m) | <1000 |
| Outlet conveying diameter | DN100 |
| Air consumption(m3/min) | 5-10 |
Structure composition
It is usually composed of material conveying valve, intake check valve, conveying pipe and valve, gas separation equipment, silo and auxiliary equipment, positive pressure fan and control system, etc.

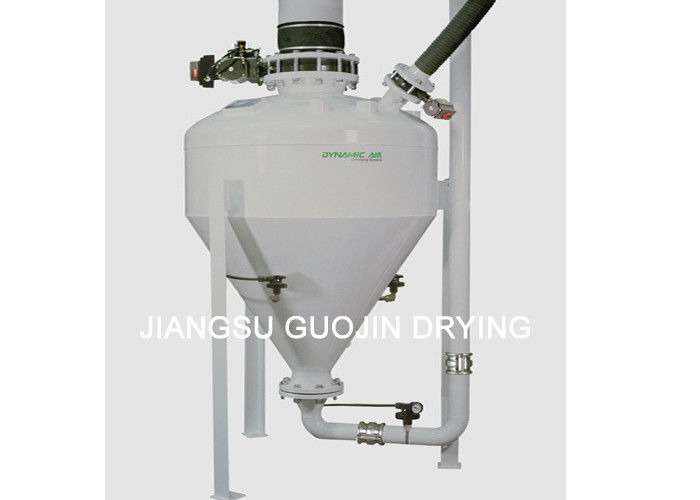

Product Picture
