Dense Phase Dust Pneumatic Conveyor Machine 100M Conveying Distance
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | DPCS-0.6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 sets per month |
|
Detail Information |
|||
| Product Name: | 100M Conveying Distance Dense Phase Dust Pneumatic Conveyor Machine | Model: | DPCS-0.6 |
|---|---|---|---|
| Body Inner Diameter Volume: | 800MM | Total Volume: | 0.6M3 |
| Body Material: | Q235-B | Operation Temperature: | <120 Degree |
| Diameter Of Feeder Pipe: | 200mm | Max. Design Pressure: | 0.78 Mpa |
| Operation Pressure: | 0.2-0.5Mpa(Basis On The Conveying Distance) | Max. Conveying Distance: | <1000meter |
| Outlet Conveying Diameter: | DN80 | Air Consumption: | 3.5-7M3/min |
| Highlight: | Dense Phase Dust Pneumatic Conveyor,100M Conveying Distance Pneumatic Conveyor,Enclosed Pneumatic Conveying System |
||
Product Description
100M Conveying Distance Dense Phase Dust Pneumatic Conveyor Machine
1. Pneumatic conveying system are relatively economical to install and operate
2. Pneumatic conveying system are totally enclosed and if required can operate entirely without moving parts coming into contact with the conveyed material. Being enclosed there are hygiene & cleanlinesss benefits
3. A pneumatic conveying system can convey a product to any place with tubes. its flexible.
4. Pneumatic conveying system offer greatly reduced capital cost for long distance conveying.
5. PLC full automation
6. Pneumatic Conveying System are much better suitable to powder handling than mechanical conveyor because the conveyance channels used in pneumatic conveyors are completely enclosed.
7. Pneumatic conveyors can be designed to move products between floor levels and around difficult angles.
8. The whole system is composed of compressed air source, pneumatic vessel, control cabinet,conveying pipe and ash storage.
Product Application
1. It can transport almost all powder and particle materials.
2. It can be transported long distance.
3. It can be sent from one point to many points.
4. Can start in full tube state
Product Features
1. Compressed air is injected separately and controllable along the transport pipeline to make ultra-dense phase ultra-low speed transport.
2. The highest transmission efficiency, the most energy saving, the most environmental protection.
3. Few spare parts and high reliability.
4. Long-term operation of the system.
Product Paremeter
| Model | DPCS-0.6 |
| Body Inner diameter(mm) | 800 |
| Total volume(M3) | 0.6 |
| Body material | Q235-B |
| Operation Temperature(oC) | <120 |
| Max. design pressure(Mpa) | 0.78 |
| Operation pressure(Mpa) | 0.2-0.5(Basis on the conveying distance) |
| Max. conveying distance(m) | <1000 |
| Outlet conveying diameter | DN80 |
| Air consumption(m3/min) | 3.5-7 |

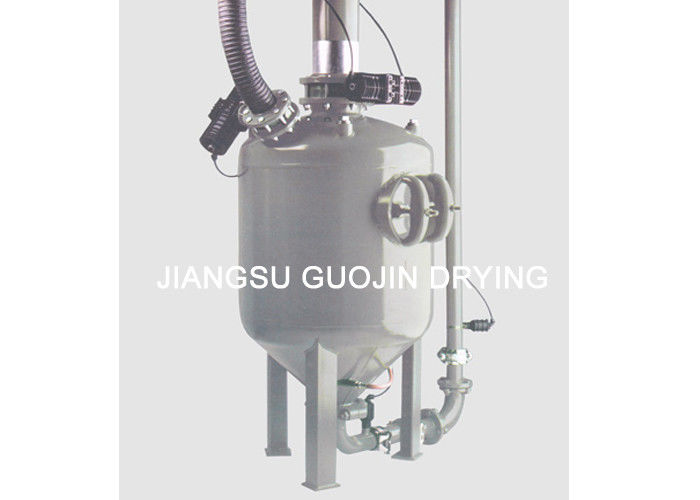

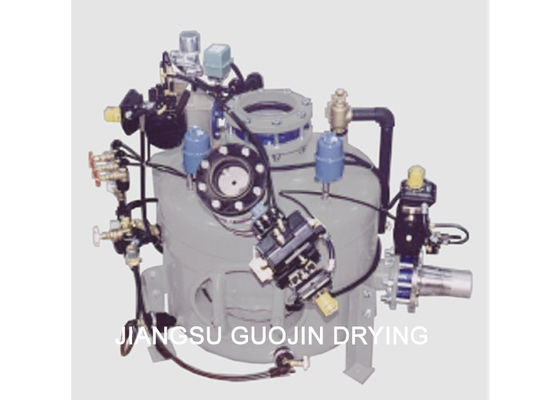

Product Picture
