Roots Blower Pneumatic Conveyor 17m Suction For Granule Fertilizers
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | PCS-30 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 sets per month |
|
Detail Information |
|||
| Product Name: | Environmental Roots Blower 17m Suction Cement Dry Fly Ash Pneumatic Conveyor | Model: | PCS-30 |
|---|---|---|---|
| Max Delivery Volume: | 30 | Roots Blower Model (Caliber): | 200 |
| Blower Power: | 45 KW | Discharger Power: | 3KW |
| Diameter Of Feeder Pipe: | 200MM | Suction: | 17M |
| Height Of Discharger: | 3M | ||
| Highlight: | 45kw Roots Blower Pneumatic Conveyor,17m Suction Pneumatic Conveyor,Granule Fertilizers Pneumatic Conveying System |
||
Product Description
Environmental Roots Blower 17m Suction Cement Dry Fly Ash Pneumatic Conveyor
Pneumatic Conveyor is mainly used in warehouses, food processing plants, small tonnage dock for unloading bulk granular absorbing materials, such as wheat, rice, rice bran,corn, rapeseed, soybean, cottonseed, fodder, etc., can also be used to promote the granule-like fertilizers, plastics cement and other handling, especially out of the warehouse transshipment operations applicable to storage of materials.
Product Details

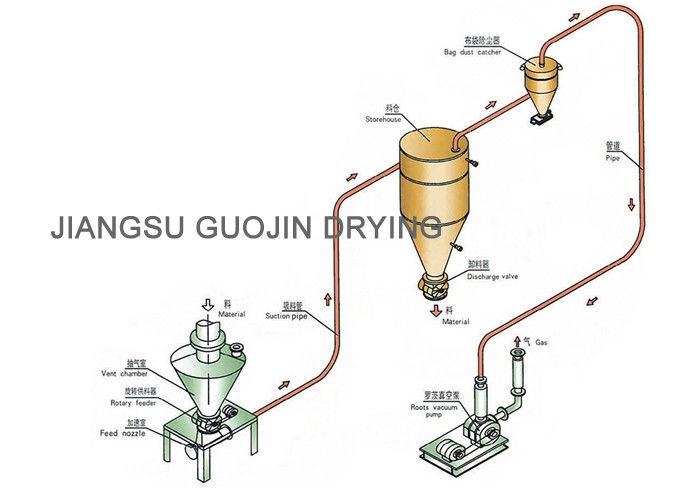

Pneumatic conveyor is composed of the high pressure blower, air flow control valve, separator tube, air locker, connecting pipe, suction nozzle and conveying pipelines and other components.
Working Principle
Its working principle is negative pressure air stream generated by the high pressure blower though the suction nozzle, suctioning the materials into the hose tube, then materials through the separation tube, air and material separated, material fell off into the air locker downward, then materials will be conveyed to the required place by positive pressure air flow. The air separated will go into the blower through the separator tube or the dust collector.
Product Features
1. Strong power and big conveying quantity
Pneumatic Conveyor has been exported to different countries as Russia, Saudi Arab, Iran, South Africa, Kenya, Ghana, Philippine, Thailand, Malaysia, Indonesia, Vietnam, Mexico and so on.
2. Flexible application and grain hanging conveyor
3. Advanced technology and cost-saving
4. Safe and simple installation and commissioning.
5. Simple structure and less&easy maintenance.
6. High efficiency and energy-saving.
7. Easy operation.
Product Paremeter
| Model | PCS-30 |
| Max delivery volume (m3/h.When the proportion is 1:1) | 30 |
| Roots Blower Model (Caliber) | 200 |
| Blower power(kw) | 45 |
| Discharger power(kw) | 3 |
| Diameter of feeder pipe(mm) | 200 |
| Suction(m) | 17 |
| Height of discharger(m) | 3 |
Product Picture
