Small Particles Pneumatic Grain Conveyor With Roots Blower 30KW
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | PCS-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 sets per month |
|
Detail Information |
|||
| Product Name: | Roots Blower 30KW Small Particles Grains Pneumatic Conveyor | Model: | PCS-20 |
|---|---|---|---|
| Max Delivery Volume: | 20 | Roots Blower Model (Caliber): | 150 |
| Blower Power: | 30 KW | Discharger Power: | 2.2 Kw |
| Diameter Of Feeder Pipe: | 150 Mm | Suction: | 17 M |
| Height Of Discharger: | 3 M | ||
| Highlight: | Small Particles Pneumatic Grain Conveyor,Roots Blower Pneumatic Grain Conveyor,30KW Roots Blower Pneumatic Conveyor |
||
Product Description
Roots Blower 30KW Small Particles Grains Pneumatic Conveyor
1. Pneumatic conveying system are relatively economical to install and operate
2. Pneumatic conveying system are totally enclosed and if required can operate entirely without moving parts coming into
contact with the conveyed material. Being enclosed there are hygiene & cleanlinesss benefits
3. A pneumatic conveying system can convey a product to any place with a pipeline. its flexible.
4. Pneumatic conveying system offer greatly reduced capital cost for long distance conveying.
Application:
Pneumatic Conveying System uses compressed air or gas as the medium to transfer the bulk materialswith pipe from position A to position B. It is helpful to production and environmental protection.
These materials are dry pulverized or free flowing or light powdery materials like cement, fly ash / aluminium / zinc / calcine / clinker dust / sand / bentonite / sinter dust, etc. for industries like Cement / Steel / Paper / Foundry / Chemical / Process, etc.
Product Details
Pneumatic conveyor is composed of the high pressure blower, air flow control valve, separator tube, air locker, connecting pipe, suction nozzle and conveying pipelines and other components.

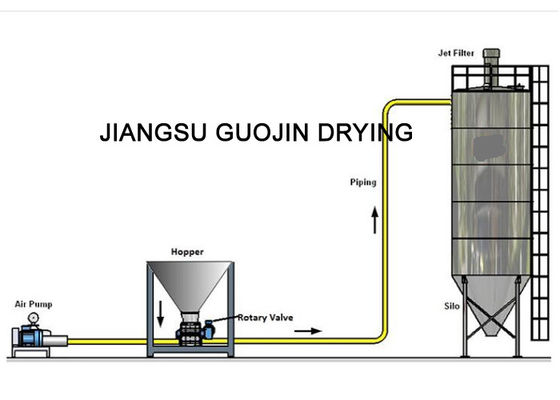

Working Principle
Its working principle is negative pressure air stream generated by the high pressure blower though the suction nozzle, suctioning the materials into the hose tube, then materials through the separation tube, air and material separated, material fell off into the air locker downward, then materials will be conveyed to the required place by positive pressure air flow. The air separated will go into the blower through the separator tube or the dust collector.
Product Paremeter
| Model | PCS-20 |
| Max delivery volume (m3/h.When the proportion is 1:1) | 20 |
| Roots Blower Model (Caliber) | 150 |
| Blower power(kw) | 30 |
| Discharger power(kw) | 2.2 |
| Diameter of feeder pipe(mm) | 150 |
| Suction(m) | 17 |
| Height of discharger(m) | 3 |

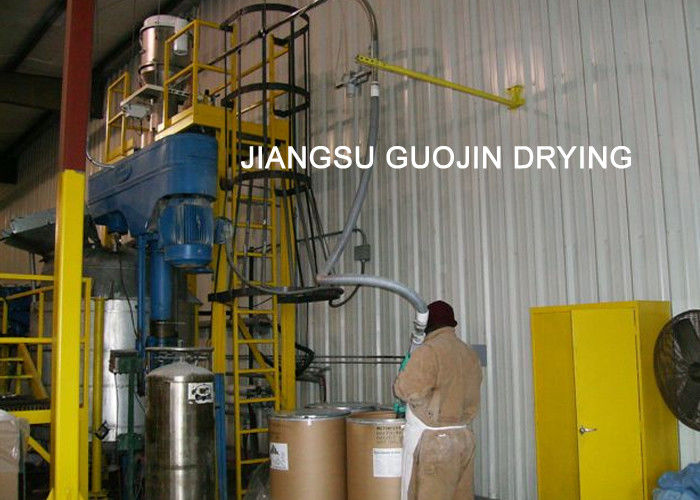

Product Picture
