Vertical Pneumatic Material Handling System 20m3/H For Barley Malt
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | PCS-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 sets per month |
|
Detail Information |
|||
| Product Name: | Roots Blower Small Particles Grains Pneumatic Conveyor System | Model: | PCS-20 |
|---|---|---|---|
| Max Delivery Volume: | 20 | Roots Blower Model (Caliber): | 150 |
| Blower Power: | 30KW | Discharger Power: | 2.2KW |
| Diameter Of Feeder Pipe: | 150mm | Suction: | 17m |
| Height Of Discharger: | 3m | ||
| Highlight: | Vertical Pneumatic Material Handling System,20m3/h Pneumatic Material Handling System,Barley Malt Pneumatic Conveying System |
||
Product Description
Roots Blower Small Particles Grains Pneumatic Conveyor System
Pneumatic conveyor is an advanced material conveying machine. It is compact, flexible and labor-saving. It can be used to convey granular materials on horizontal, inclined and vertical such as soybean, rice, wheat, corn, sorghum, barley malt, plastics and resins etc.
Application:
Pneumatic Conveying System uses compressed air or gas as the medium to transfer the bulk materials with pipe from position A to position B. It is helpful to production and environmental protection.
These materials are dry pulverized or free flowing or light powdery materials like cement, fly ash / aluminium / zinc / calcine / clinker dust / sand / bentonite / sinter dust, etc. for industries like Cement / Steel / Paper / Foundry / Chemical / Process, etc.
Product Details
Pneumatic conveyor is composed of the high pressure blower, air flow control valve, separator tube, air locker, connecting pipe, suction nozzle and conveying pipelines and other components.
Working Principle
Its working principle is negative pressure air stream generated by the high pressure blower though the suction nozzle, suctioning the materials into the hose tube, then materials through the separation tube, air and material separated, material fell off into the air locker downward, then materials will be conveyed to the required place by positive pressure air flow. The air separated will go into the blower through the separator tube or the dust collector.
Product Paremeter
| Model | PCS-20 |
| Max delivery volume (m3/h.When the proportion is 1:1) | 20 |
| Roots Blower Model (Caliber) | 150 |
| Blower power(kw) | 30 |
| Discharger power(kw) | 2.2 |
| Diameter of feeder pipe(mm) | 150 |
| Suction(m) | 17 |
| Height of discharger(m) | 3 |

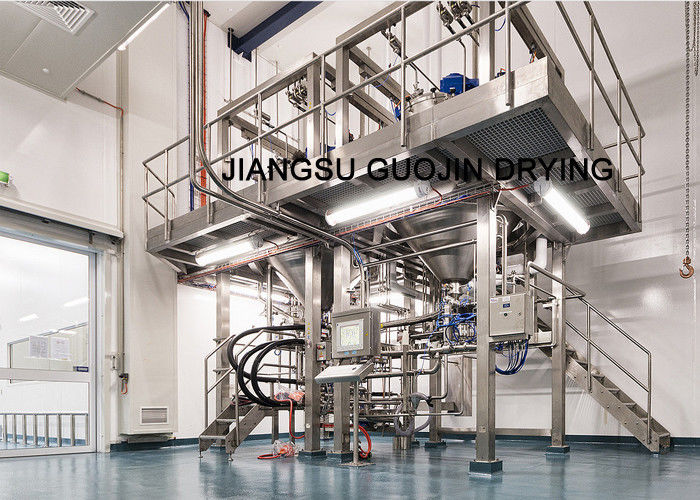

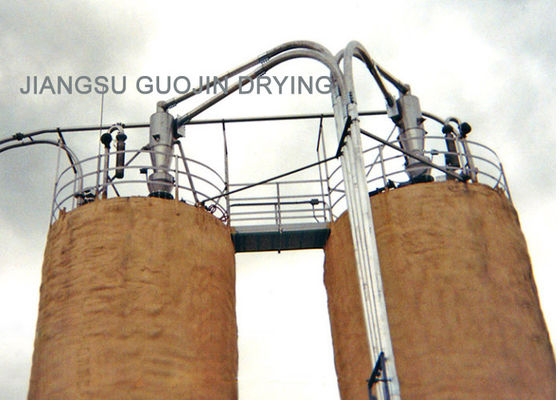

Product Picture
