Negative Pressure Pneumatic Conveying Equipment For Cement Industries
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | PCS-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 sets per month |
|
Detail Information |
|||
| Product Name: | Roots Blower Negative Pressure Pneumatic Conveying Equipment For Dry Fly Ash | Model: | PCS-10 |
|---|---|---|---|
| Max Delivery Volume: | 10 | Roots Blower Model (Caliber): | 125 |
| Blower Power: | 15KW | Discharger Power: | 2.2kw |
| Diameter Of Feeder Pipe: | 150 Mm | Suction: | 17 M |
| Height Of Discharger: | 3 M | ||
| Highlight: | 15KW Negative Pressure Pneumatic Conveying Equipment,Cement Industries Pneumatic Conveying Equipment,3m Discharger Pneumatic Conveying System |
||
Product Description
Roots Blower Negative Pressure Pneumatic Conveying Equipment For Dry Fly Ash
Pneumatic conveyor is an advanced material conveying machine. It is compact, flexible and labor-saving. It can be used to convey granular materials on horizontal, inclined and vertical such as soybean, rice, wheat, corn, sorghum, barley malt, plastics and resins etc.
1. Pneumatic conveying system are relatively economical to install and operate
2. Pneumatic conveying system are totally enclosed and if required can operate entirely without moving parts coming into
contact with the conveyed material. Being enclosed there are hygiene & cleanlinesss benefits
3. A pneumatic conveying system can convey a product to any place with a pipeline. its flexible.
4. Pneumatic conveying system offer greatly reduced capital cost for long distance conveying.
Application:
Pneumatic Conveying System uses compressed air or gas as the medium to transfer the bulk materialswith pipe from position A to position B. It is helpful to production and environmental protection.
These materials are dry pulverized or free flowing or light powdery materials like cement, fly ash / aluminium / zinc / calcine / clinker dust / sand / bentonite / sinter dust, etc. for industries like Cement / Steel / Paper / Foundry / Chemical / Process, etc.
Product Details
Pneumatic conveyor is composed of the high pressure blower, air flow control valve, separator tube, air locker, connecting pipe, suction nozzle and conveying pipelines and other components.
Product Paremeter
| Model | PCS-10 |
| Max delivery volume (m3/h.When the proportion is 1:1) | 10 |
| Roots Blower Model (Caliber) | 125 |
| Blower power(kw) | 15 |
| Discharger power(kw) | 2.2 |
| Diameter of feeder pipe(mm) | 150 |
| Suction(m) | 17 |
| Height of discharger(m) | 3 |

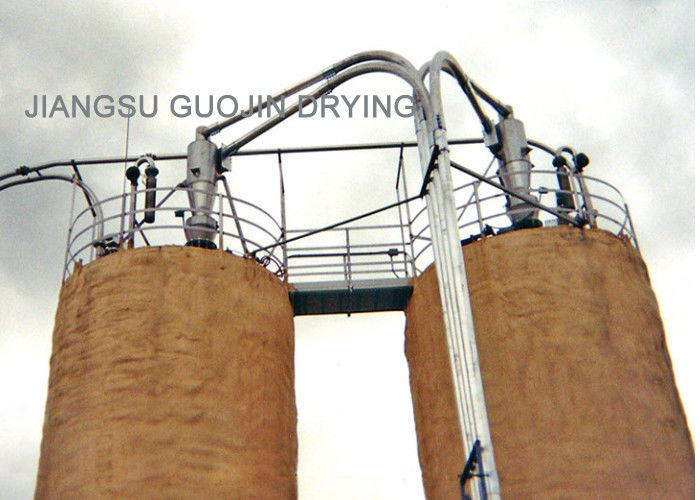

Product Picture
