Negative Pressure Dilute Phase Pneumatic Conveying System Heat Resistant
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | PCS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 sets per month |
|
Detail Information |
|||
| Product Name: | Roots Blower Negative Pressure Dilute Phase Pneumatic Conveying System | Model: | PCS |
|---|---|---|---|
| Material Feature: | Heat Resistant | Voltage: | 220V / 380V / 415V / 440V |
| Application: | It Is Mainly Used To Transport Granular And Bulk Materials: Such As Crushed Coal, Pulverized Coal, Cement Powder, Sand, Grains, Chemical Materials, Clay, Etc. Widely Used In Agriculture And Wood Processing | Conveying Capacity: | 3t/h-130t/h |
| Power: | 4-110KW | ||
| Highlight: | Dilute Phase Pneumatic Conveying System,Dilute Phase Pneumatic Conveying System 220V,130t/h Negative Pressure Pneumatic Conveyor |
||
Product Description
Roots Blower Negative Pressure Dilute Phase Pneumatic Conveying System
4 Key Reasons to choose pneumatic conveying system:
1. Pneumatic conveying system are relatively economical to install and operate
2. Pneumatic conveying system are totally enclosed and if required can operate entirely without moving parts coming into
contact with the conveyed material. Being enclosed there are hygiene & cleanlinesss benefits
3. A pneumatic conveying system can convey a product to any place with a pipeline. its flexible.
4. Pneumatic conveying system offer greatly reduced capital cost for long distance conveying.
Application:
Pneumatic Conveying System uses compressed air or gas as the medium to transfer the bulk materialswith pipe from position A to position B. It is helpful to production and environmental protection.
These materials are dry pulverized or free flowing or light powdery materials like cement, fly ash / aluminium / zinc / calcine / clinker dust / sand / bentonite / sinter dust, etc. for industries like Cement / Steel / Paper / Foundry / Chemical / Process, etc.
Suitable for the material conveying from enclosed device to another enclosed device because the high pressure in pipe, eg., from silo to silo, hopper to silo....
The conveying pipe is flexible arrangement according to the different topographical, it is easy to convey in the way of centralized, high-height and long-distance, the distance can reach 800meters.
Product Paremeter
| Model | PCS-10 |
| Max delivery volume (m3/h.When the proportion is 1:1) | 10 |
| Roots Blower Model (Caliber) | 125 |
| Blower power(kw) | 15 |
| Discharger power(kw) | 2.2 |
| Diameter of feeder pipe(mm) | 150 |
| Suction(m) | 17 |
| Height of discharger(m) | 3 |

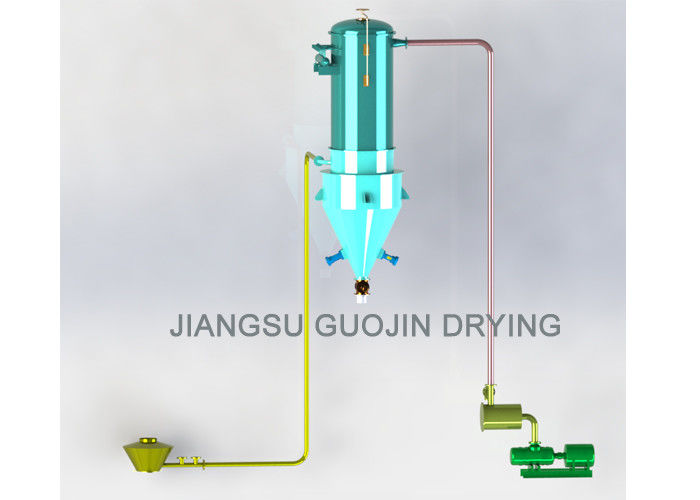

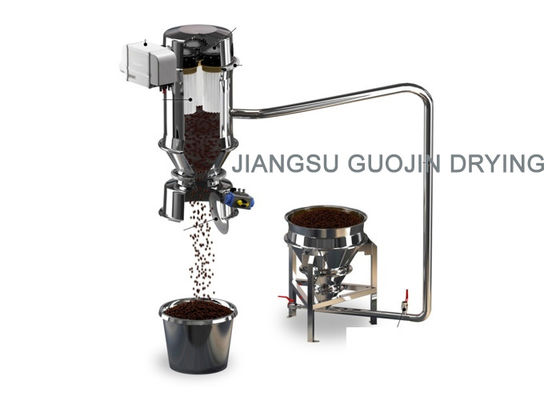

Product Picture
