Automatic Pneumatic Sealing Fluid Bed Coater Air Flow Controlled

Automatic Pneumatic Sealing Fluid Bed Coater Air Flow Controlled

Product Details:

Place of Origin: China
Brand Name: Guojin
Certification: ISO
Model Number: FBG-120

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export Carton
Delivery Time: 20-30days
Supply Ability: 10 sets per month
Get Best Price Contact Now

Detail Information

Item Name: FBG-120 Fluid Bed Granulator LC Payment Terms For Pakistan Customers Application: Chemical Processing, Pharmaceutical Processing
Container Volume: 420 Liter Diameter: 1200mm
Max Capacity: 160KG Min Capacity: 80KG
Fan Capacity: 4500m3/h Fan Pressure: 950mmH2O
Fan Power: 18.5KW Dimension: 2.2x1.65x3.3M
Highlight:

Automatic Pneumatic Sealing Fluid Bed Coater

,

Air Flow Control Fluid Bed Coater

,

420 Liter Fluid Bed Granulator

Product Description

FBG-120 Fluid Bed Granulator LC Payment Terms For Pakistan Customers


Phamaceutical industry: tablet, capsule, low sugar or no sugar granule of chinese medicine.
Fodstuff: cocoa, coffee, milkpowder, juice of granulate, flavoring and so on.
Other industries: peticide, feed chemical fertilizer, pigment, dyestuff and so on.
Drying of powder or granule wet material.
Coating: granule, pill protection layer, color preparedness, sustained release, film, enteric coating





FBG-120 Fluid Bed Granulator Working Principle
FL series fluid bed granulator is a batch type top spray powder granulation/agglomeration processor which has been widely used in pharmaceutical, chemical and foodstuff industry. Raw materil (free-flowing dry powder or small granules ) is loaded in the granulating bowl of which the bottom is made by perforated plate. Clean hot air flows through the perforated plate to completely fluidize the material. Meanwhile, liquid binder is sprayed onto the fluidized material. Fine powder collides with droples and stick together to form granules or agglomerates with good flowability and instant solubility.




FBG-120 Fluid Bed Granulator Technical Advantage

1. GMP Design: 150 grit exterior finish, mirror finish on internal surfaces. The system can meet GMP standard;
2. HEPA air filter: The air filter consists of primary stage, secondary stage and high efficiency stage air filter and the air cleanness can reach 100,000 grade;
3. Automatic pneumatic sealing: two pneumatic cylinders lift the granulation bowl for sealing with the top chamber; the inflated square rubber ring will seal the bottom chamber to create a completely sealed granulation chamber;
4. Two-bag-filter-chamber system: The top bag filtering system has two chambers which work alternately to avoid air pressure onto the filter bag. The product rate can reach 99%.
5. Accurate air flow control: The exhaust fan is combined with Siemens inverter to accurately control the air flow rate for achieving perfect fluidization.
6. Good working condition: The whole system is working under negative pressure, so there is no powder leaking at all. Exhaust fan is equipped with silencer as well as isolated installation, the noise is below 75 dB(A).
7. Safety measures: The whole system adopts following measure to 100 % make sure safety during operation:
1) Function interlocked: All the function buttons in the control panel are interlocked (only proper operation steps can run the system) to prevent any mistakable operation to the machine.
2) Explosion proof design: Granulation chamber is equipment with venting. When the pressure inside the chamber is getting higher than the rated one (say 2 bar), the rupture membrane will break to release the pressure.
3) Pressure monitoring: Pressure sensor is equipped to monitor pressure change inside the granulation chamber. When pressure is getting higher (especially when the bag filter is choked) and positive pressure condition is formed, electrical heater and exhaust fan will stop automatically and pressure release valve will open.





FBG-120 Fluid Bed Granulator Technical Parameters

Automatic Pneumatic Sealing Fluid Bed Coater Air Flow Controlled 0

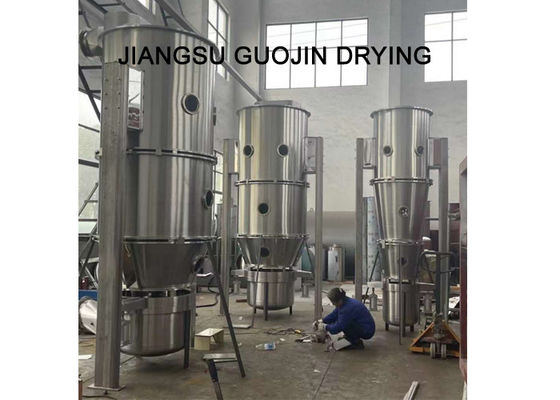

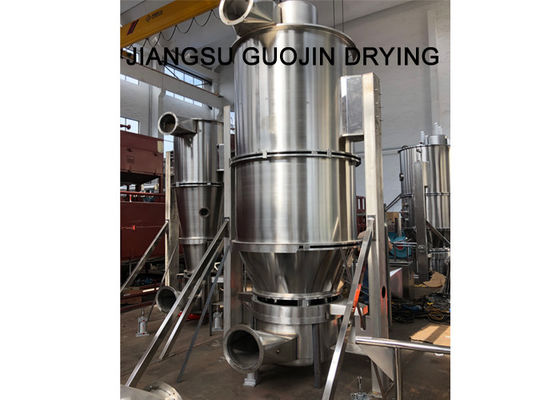

Product Show

Automatic Pneumatic Sealing Fluid Bed Coater Air Flow Controlled 1

Contact Me
Automatic Pneumatic Sealing Fluid Bed Coater Air Flow Controlled 2


electrical, steam, natural gas or other
