150kg/h Water Evaporation Foodstuff Centrfugal Spray Dryer
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | RWSD-150 |
|
Detail Information |
|||
| Model Name: | 150Kg/H Water Evaporation Foodstuff Industrial Centrfugal Spray Dryer | Model Type: | RWSD-150 |
|---|---|---|---|
| Water Evaporaton: | 150kg/h | Application: | Foodstuff Industry |
| Rotate Speed: | 15000 | Max Power: | 99kw |
| Outlet Air Temperature: | 80-90 | Heating Source: | Electrcity+Steam, Fuel, Gas |
| Spray Disc Diameter: | 150mm | ||
| Highlight: | Foodstuff Centrfugal Spray Dryer,150kg/h Centrfugal Spray Dryer,150kg/h Spray Drying Machine |
||
Product Description
150Kg/H Water Evaporation Foodstuff Industrial Centrfugal Spray Dryer
RWSD food rotary spray dryer machine is widely applied in liquid process shaping and drying industry. It is a special drying equipment that is suitable for producing solid powder or practical products by drying liquid material like emulsion, suspension liquid, mash, liquor and so on. And it is a strong performer in drying polymer and resin; dye and pigment; ceramics, glass; rust remover; vermifuge; carbohydrate, dairy products; detergent and surfactant; fertilizer, organic compounds and inorganic compounds.
Centrfugal Spray Dryer Principle Of Work
Centrfugal Spray DryerApplication
High Speed Centrifugal Spray Dryer is widely used in foodstuff, pharmaceutical and chemical industry, such as egg powder, amino acid product, protein, blood, food flavor, food ingredients, pectin, carrageenan, spirulina, herbal extraction, pigment, cocoa, mushroom, PAC, malt dextrin, collagen, juice, yeast, Coffee, Creamer, coconut, milk, gelatin, gum and acacia etc.
Centrfugal Spray Dryer Features
Features
1. High speed of drying. After the spraying of the material liquid, the surface area of the material will be increased greatly. In the hot air flow, 95%-98% of water can be evaporated at the moment. The time of completing the drying needs only several seconds. It is especially suitable for drying the heat sensitive materials.
2. The final products own the good uniformity, mobility, and dissolving capacity. And the final products are high in purity and good in quality.
3. The production procedure is simple and the operational control easy. The liquid with the moisture contents 40-60%(for special materials, the contents may reach 90%.) can be dried into powder or particle products at a time. After the drying, there is no need for smashing and sorting, so as to reduce the operation procedures in the production and chance the product purity. The product particle diam enters, looseness and water contents can be adjusted through changing the operation codition in a certain scope, it is very convenient to carry out the control and management.
Technical Parameter
| Model | RWSD-150 |
| Inlet temperature | 140-350 automatic control |
| Outlet temperature | ~80-90 |
| Max. moisture evaporation | 150 |
| Centrifugal spray hear drive | Machanical drive |
| Speed | 15000 |
| Spray disc diameter | 150 |
| Heat source | electric+Steam, fuel, gas |
| Max. power of electric heating | 99 |
| Outline dimension | 5.5x4.5x7 |
| Dry powder recovery | >95 |
What is the different characteristic of centrifugal spray dryer from others ?
1. The tower body has cold wind jacket.
2. The tower body is provided with an automatic vibrating device.
3. The tower body, the pipeline is equipped with the quick opening cleaning hole and the sewage hole.
4. Automatic control of constant temperature feeding tank.
5. Manual high-pressure washing tower random accessories.
6. The part in contact with the material is made of stainless steel material (or all stainless steel manufacturing.
7. The material collection adopts the two-stage cyclone dust collector, or the first stage cyclone dust collector and the wet type dust collector.
8. Automatic control of inlet air temperature and continuous device.
9. Equipped with air sweep device.

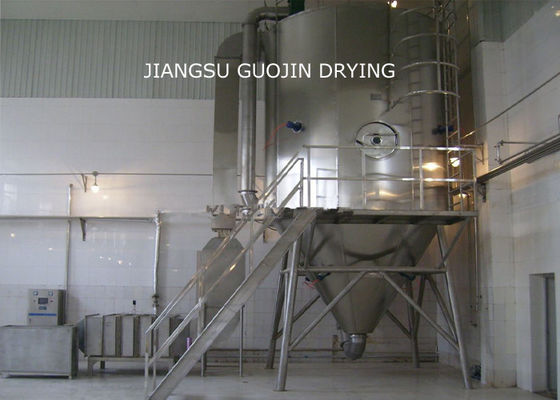

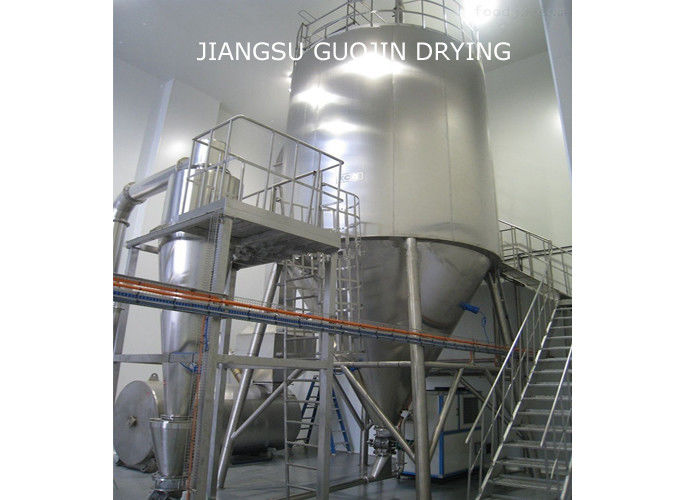

Product Show
