Continuous Fruit / Vegetable Industrial Spray Dryer
Product Details:
| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE;ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Type: | Vacuum Drying Equipment | Application: | Medicine Processing, Chemicals Processing, Food Processing |
|---|---|---|---|
| Condition: | New | Voltage: | 3 Phase/220v/380v/50Hz |
| Power(W): | 25.5kw | Dimension(L*W*H): | 17300*2800*4150mm |
| Key Selling Points: | Automatic | Warranty: | 1 YEAR |
| After-sales Service Provided: | Online Support, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Engineers Available To Service Machinery Overseas | Applicable Industries: | Fruit / Vegetable |
| Material: | SS304 Steel | Low Temperature: | The Drying Temperature Can Be Lower To 30 C0 |
| Drying Time: | 30-90 Minutes | Dryer Features: | Continuous |
| Dryer Feature: | 30-80℃ Drying Temperature | High Theral Efficiency: | Vacuum Belt Dryer |
| Weight: | 42ton | ||
| Highlight: | Vegetable Industrial Spray Dryer,Continuous Industrial Spray Dryer,Fruit Industrial Spray Dryer |
||
Product Description

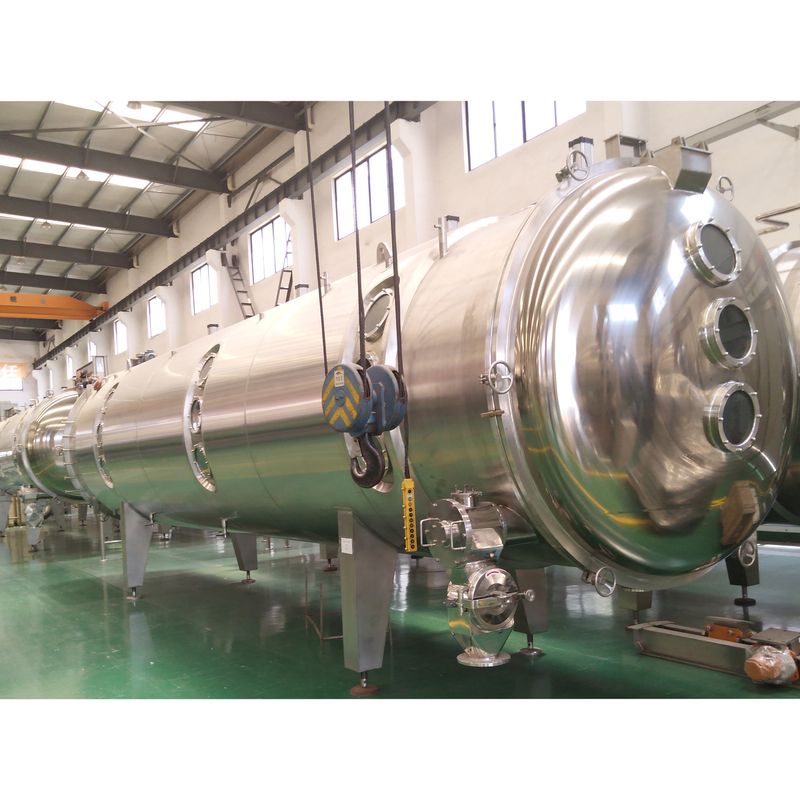

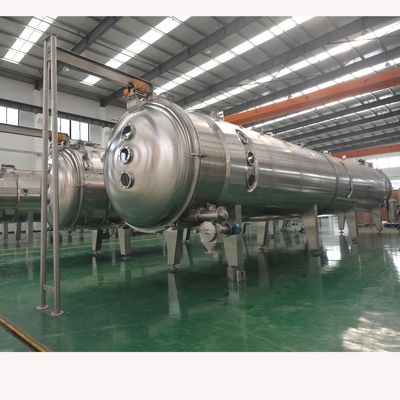

Continuous Fruit / Vegetable Industrial Spray Dryer
vacuum belt yeast extract spray dryer design low temperature continuous GMP standard CE/ISO9001 certified is a continuous infeed and discharge vacuum drying equipment. Liquid product is conveyed into dryer body by infeed pump, evenly spread on belts by distribution device. Under high vacuum, the boiling point of the liquid is lowered; water in the liquid material is evaporated. Belts move on the heating plates evenly. Steam, hot water, hot oil can be used as heating media. With the moving of the belts, the product goes through from the beginning evaporating, drying, cooling to discharging in the end. The temperature decreases through this process, and can be adjusted for different products. Special vacuum crusher is equipped at the discharge end to produce different size end product. The dry powder or granule product can be automatically packed or continue with subsequent process.
Equipment Advantage:
1. Less labor cost and energy consumption
2. Little loss of product and solvent recycling possible
3. PLC automatic control system & CIP cleaning system
4. GMP standards
5. Good solubility & excellent quality of the products
6. Continuous feed-in, dry, granulate, discharge in vacuum state
7. Completely closed system and no contamination
8. Adjustable drying temperature (30~150℃)& drying time (30~60min)
APPLICATION SCOPE:
vacuum belt yeast extract spray dryer design low temperature continuous GMP standard CE/ISO9001 certified is mainly used in drying many kinds of liquid or paste raw material, such as traditional & western medicines, food, biological products, chemical material, health foods, food additive etc, especially suitable for drying material with high-viscosity, easy agglomeration, or thermoplastic, thermal sensitivity, or material that can not be dried by traditional dryer.
For above materials, VBD is the best choice:
Pharmaceutical industry:chinese medicine extract, plant extract, egg embryo, PVPK series, fermenting liquid etc
Food industry:malt extract, carbohydrate, instant beverage, tea powder, cocoa powder, corn paste etc Chemical Industry:lithium battery, emamectin benzoate etc
|
Type |
Diameter |
Length |
Height |
Heating area |
Evaporation capacity |
Power |
|
MJY200-10 |
mm |
mm |
mm |
m2 |
kg/h |
kw |
|
2800 |
17300 |
4150 |
200 |
160-180 |
25.5 |
Heating medium: hot water or oil
Moisture content of dried product 0.2-0.5%
Moisture content of infeed material:20-80%
Heating circumstance temperature: 30-150℃
(Minjie series continuous vaccum belt dryer's types from MJY5-200, pls feel free contact us for detail information, thank you very much)
