XZG-6 Stirrer Spin Flash Dryer For Filter Cake From 15% Dry To 0.5%
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | CE |
| Model Number: | XZG-6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | XZG-6 Stirrer Spin Flash Dryer For Filter Cake From 15% Dry To 0.5% | Barrel Diameter: | 600 MM |
|---|---|---|---|
| Main Machine Dimensions: | 700x4200 MM | Main Machine Power: | 20-29 Kw |
| Treatment Wind Capacity: | 2500-5000 M3/h | Water Evaporation: | 40-200 KG/H |
| Material: | SS304, SS316 | Heating Source: | Electricity Or Steam Or Gas Or Others |
| Highlight: | XZG-6 Stirrer Spin Flash Dryer,Cake Stirrer Spin Flash Dryer,Stirrer Hot Air Drying Machine |
||
Product Description
XZG-6 Stirrer Spin Flash Dryer For Filter Cake From 15% Dry To 0.5%
Raw material: Medical ingredients filter cake
Initial moisture: 15-16%
Final moisture: less 0.5%
Finished capacity: 500kg/h
Air inlet temperature: 180-190
Exhaust temperature: 85-90
Heat source: thermal oil
XZG-6 Stirrer Spin Flash Dryer Features
(1) Dynamic integration of cyclone, fluidized, spouted and grinding classification technologies.
(2) Equipments are compact and small-sized, enabling high efficiency and continuous production, achieving "small equipment, large-scale production".
(3) Great drying intensity, low energy consumption, high thermal efficiency.
(4) Short material residence time, good product quality, available for drying heat sensitive materials.
(5)Negative or slightly negative pressure operation, good impermeability, high efficiency, eliminating environmental pollution.
(2) Equipments are compact and small-sized, enabling high efficiency and continuous production, achieving "small equipment, large-scale production".
(3) Great drying intensity, low energy consumption, high thermal efficiency.
(4) Short material residence time, good product quality, available for drying heat sensitive materials.
(5)Negative or slightly negative pressure operation, good impermeability, high efficiency, eliminating environmental pollution.
XZG-6 Stirrer Spin Flash Dryer Application
Organic compounds: atrazine (pesticides), cadmium laurate, benzoic acid, germicide, sodium oxalate, cellulose acetate, the organic pigments, and so on;
Dye: santhraquinone, black iron oxide, indigo pigments, butyric acid, titanium hydroxide, zinc sulfide, various azo intermediate;
Inorganic: borax, calcium carbonate, hydroxide, copper sulfate, ferric oxide, barium carbonate, antimony trioxide, all kinds of metallic hydroxide, all kinds of heavy metal salt, synthetic cryolite and so on;
Food: soy protein, gelatinized starch, distillers' grains, triticin, wheat starch and so on.
Dye: santhraquinone, black iron oxide, indigo pigments, butyric acid, titanium hydroxide, zinc sulfide, various azo intermediate;
Inorganic: borax, calcium carbonate, hydroxide, copper sulfate, ferric oxide, barium carbonate, antimony trioxide, all kinds of metallic hydroxide, all kinds of heavy metal salt, synthetic cryolite and so on;
Food: soy protein, gelatinized starch, distillers' grains, triticin, wheat starch and so on.
XZG-6 Stirrer Spin Flash Dryer Technical Parameters
| Type | Barrel diameter(mm) | Main machine dimensions(mm) | Main machine power(kw) | Treatment wind capacity(m3/h) | Water evaporatoion(kgg/h) |
| SFD-2 | 200 | 250x2800 | 5-9 | 300-800 | 10-20 |
| SFD-3 | 300 | 4400x3300 | 8-15 | 600-1500 | 20-50 |
| SFD-4 | 400 | 500x3500 | 10-17.5 | 1250-2500 | 25-70 |
| SFD-5 | 500 | 600x4000 | 12-24 | 1500-4000 | 30-100 |
| SFD-6 | 600 | 700x4200 | 20-29-2500 | 5000 | 40-200 |
| SFD-8 | 800 | 900xx4600 | 24-35 | 3000-8000 | 60-600 |
| SFD-10 | 1000 | 1100x5000 | 40-62 | 5000-12500 | 100-1000 |
| SFD-12 | 1200 | 1300x5200 | 50-89 | 10000-20000 | 150-1300 |
| SFD-14 | 1400 | 1500x5400 | 60-105 | 14000-27000 | 200-1600 |
| SFD-16 | 1600 | 1700x6000 | 70-135 | 18700-36000 | 250-2000 |
XZG-6 Stirrer Spin Flash Dryer Flowchart

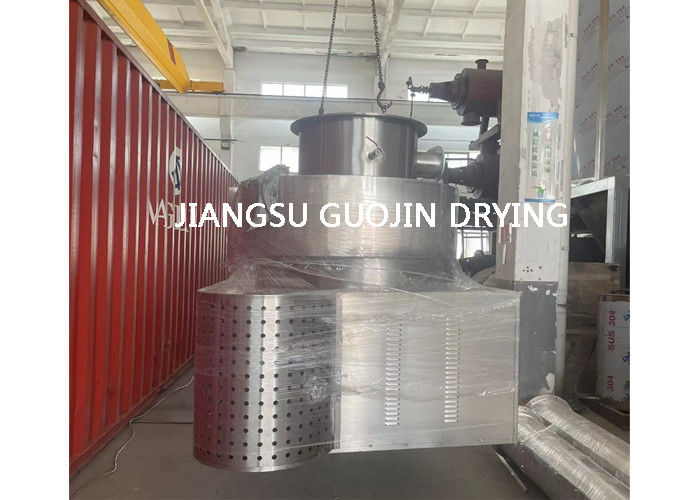

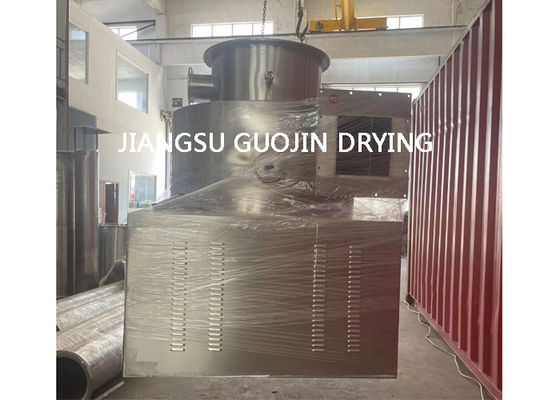

XZG-6Stirrer Spin Flash Dryer Show
