Thermal Oil Heat Source XZG-6 Stirrer Spin Flash Dryer For Filter Cake

Thermal Oil Heat Source XZG-6 Stirrer Spin Flash Dryer For Filter Cake

Product Details:

Place of Origin: China
Brand Name: Guojin
Certification: CE
Model Number: XZG-6

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export Carton
Delivery Time: 20-30days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Get Best Price Contact Now

Detail Information
Item Name: Thermal Oil Heat Source XZG-6 Stirrer Spin Flash Dryer For Filter Cake Application: Industry Processing
Barrel Diameter: 600 Mm Main Machine Dimensions: 700x4200 Mm
Main Machine Power: 20-29 KW Treatment Wind Capacity: 2500-5000 M3/h
Water Evaporation: 40-200kg/h Material: SS304 Or Others
Heating Source: Electricity,Steam,Gas
Highlight:

Thermal Oil Spin Flash Dryer

,

SS304 Material Spin Flash Dryer

,

500kg/h Flash Dryer

Product Description

Thermal Oil Heat Source XZG-6 Stirrer Spin Flash Dryer For Filter Cake


Raw material: Medical ingredients filter cake
Initial moisture: 15-16%
Final moisture: less 0.5%
Finished capacity: 500kg/h
Air inlet temperature: 180-190
Exhaust temperature: 85-90
Heat source: thermal oil

The flash dryer is widely used in the dispersion and drying of granular, powdery, paste-like and filter cake-like false agglomerates in the chemical, pharmaceutical, building materials, food, feed, and other industries.
The flash dryer has the advantages of the small occupied area, low energy consumption, high thermal efficiency, and continuous mass production. The flash dryer body is provided with a rotary cutting device, and the dry material is subjected to shearing, rotating, collision, friction, etc., so that the material is pulverized and refined, and is highly dispersed, thereby achieving the effect of efficiently and rapidly evaporating water. The dryer is equipped with an air filter to achieve the cleanliness of the hot air and to provide production conditions for the hygiene requirements of the food industry. The machine sets the cyclone separation and collecting materials. In addition, the bag dust removal receipt is added to increase the material recovery rate. It can improve the economic efficiency of enterprises. The dryer can be customized according to user needs.



XZG-6 Stirrer Spin Flash Dryer Features

This machine combines the whirl technology with the fluidity ejection and smashing step technologies. The equipment is compact and small in size, high in production efficiency and continuous in the production. It has realized that a small equipment can perform the large production.
The drying capacity for this machine is big but its energy consumption is low. Its hear efficiency can go up to more than 70%. The material star time is very short. The quality of the final products is very good. The machine can be used for drying the hest sensitive materials. For the negative pressure or the micro-negative pressure operation, the machine is good for its tightness and high in the efficiency so as to eliminate the environmental pollution.





XZG-6 Stirrer Spin Flash Dryer Application

1. Different kinds of feeding device can be chose, feeding is continuous and stable, there is on bridge phenomenon.
2. There is special cooling device at the bottom of dryer, it can avoid the material deteriorate in the bottom high temperature area.
3. Special air sealing device and bearing cooling device and make the life of transmission device longer effectively.
4. There is special air distributing device, it reduces the resistance of equipment, and make the air speed in drying chamber be balanced.
5. There are classification rings and turbojet plates in the drying chamber, fineness and final moisture of product and be adjusted and controlled.
6. In the drying chamber air speed is fast, drying time is short, it can avoid material stick on the wall and deterioration effectively.





XZG-6 Stirrer Spin Flash Dryer Technical Parameters

Type Barrel diameter(mm) Main machine dimensions(mm) Main machine power(kw) Treatment wind capacity(m3/h) Water evaporatoion(kgg/h)
SFD-2 200 250x2800 5-9 300-800 10-20
SFD-3 300 4400x3300 8-15 600-1500 20-50
SFD-4 400 500x3500 10-17.5 1250-2500 25-70
SFD-5 500 600x4000 12-24 1500-4000 30-100
SFD-6 600 700x4200 20-29-2500 5000 40-200
SFD-8 800 900xx4600 24-35 3000-8000 60-600
SFD-10 1000 1100x5000 40-62 5000-12500 100-1000
SFD-12 1200 1300x5200 50-89 10000-20000 150-1300
SFD-14 1400 1500x5400 60-105 14000-27000 200-1600
SFD-16 1600 1700x6000 70-135 18700-36000 250-2000







XZG-6 Stirrer Spin Flash Dryer Flowchart



Thermal Oil Heat Source XZG-6 Stirrer Spin Flash Dryer For Filter Cake 0

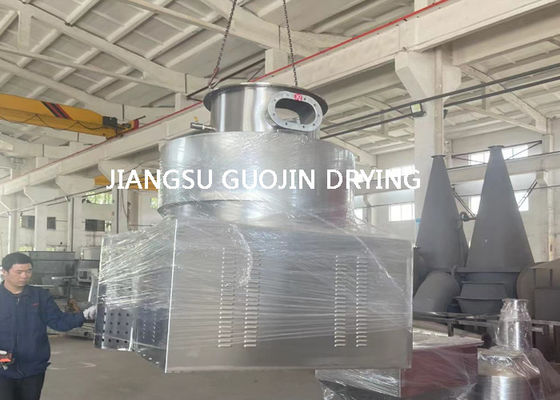

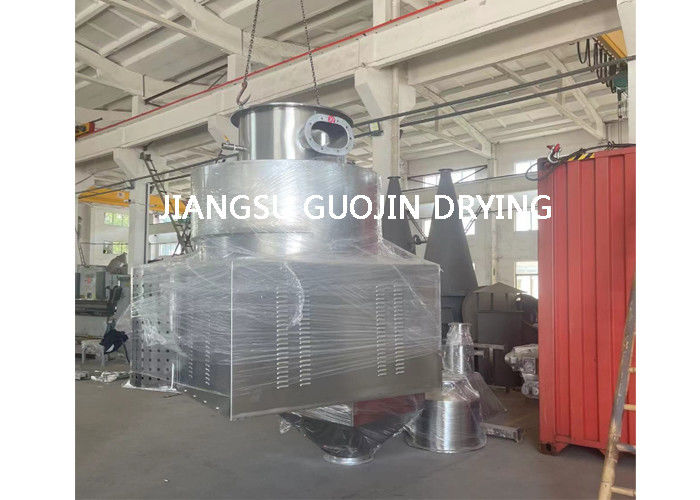

XZG-6Stirrer Spin Flash Dryer Show

Thermal Oil Heat Source XZG-6 Stirrer Spin Flash Dryer For Filter Cake 1
