66KW 384 Trays SS316L GMP Standard Tunnel Drying Oven Salt Dryer
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | CE,ISO |
| Model Number: | GMP drying oven |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | 66KW 384 Trays SS316L GMP Standard Tunnel Drying Oven Salt Dryer | Application: | Foodstuff Industry, Pharmaceutical Industry |
|---|---|---|---|
| Tray: | 384 Units | Tray Size: | 640x460x45MM |
| Trolley: | 16 Units | Drying Capacity: | 2 Tons/day |
| Electric Heating Power: | 66 Kw | Overall Dimension: | 8.8x2.2x2 M |
| Heat Source: | Natural Gas,300000kcals | Insulation Thickness: | 50mm |
| Insulation Material: | Aluminium Silicate | ||
| Highlight: | GMP Standard Tunnel Drying Oven,384 Trays Tunnel Drying Oven,SS316L Tunnel Drying Oven |
||
Product Description
66KW 384 Trays SS316L GMP Standard Tunnel Drying Oven Salt Dryer
The machine is widely used for heated drying or dehumidifying of materials in such industries as medicine, food and chemical
industry. Its working principle is that it uses steam or electric heater to heat the air, and then the heated air carries out circulated drying of materials. The temperature difference between any places in the oven is low and the drying is even. During the drying process, fresh air is supplied and wet and hot air is discharged continuously, so proper temperature is maintained inside the
oven, making the drying process always under the best status.
Working Principle
This drying oven is suitable for the material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming, side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, de-watering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.
Product Feature
1. Options of heat source: steam, electricity, or far infrared, or both steam electricity.
2. Drying temperature: steam heating 50-130 ℃ , Max.140 ℃ .
3. Electricity and far infrared:50-300 ℃ .Automatic control system and computer control system on request.
4. Commonly used steam pressure 0.2-0.8Mpa(2-8 bar).
5. For CT-C-I, electric heated, rated power consumption:15Kw, real consumption : 5-8Kw.
6. The special requirements should be indicated at the time of order.
7. Please consult as for any special requirements.
8. For operation temperature of over 140 ℃ or less than 60 ℃ , please indicate when order.
9. The ovens and baking trays made by our factory are uniform in dimensions, and can be exchanged each other.
10. Baking plate dimensions:460*640*45mm
Technical Parameters
| 1 | Raw material | Salt |
| 2 | Input capacity | 2000kg/d |
| 3 | Drying time | According to customer’s requirement |
| 4 | Electric power | 66KW |
| 6 | Heat resource |
Natural gas(RLY30,300000 kcals/h) Gas furnace size: Inner(20G steel): 800x2500x8mm Middle: 960x2500x6mm |
| 7 | Material | Complete 316 SS |
| 8 | Tunnel dryer type | Tunnel drying oven |
| 9 | Overall dimension | 8800mmX2200mmX2000mm |
| 10 | Circulation shaft fan | 0.45kw X8sets=3.6kw |
| 11 | Trolley | 16unit |
| 12 | Trays | 24pcs/unit |
| 13 | Total treys | 384pcs |
| 14 | Trey dimension | 640mmX460mmX45mm |
| 15 | Insulation thickness | 50mm |
| 16 | Insulation material | Aluminium silicate |
| 17 | Dehumidifying system | Automatic discharge via air pipe |
Product Application
This drying oven is suitable for the material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming, side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, de-watering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.

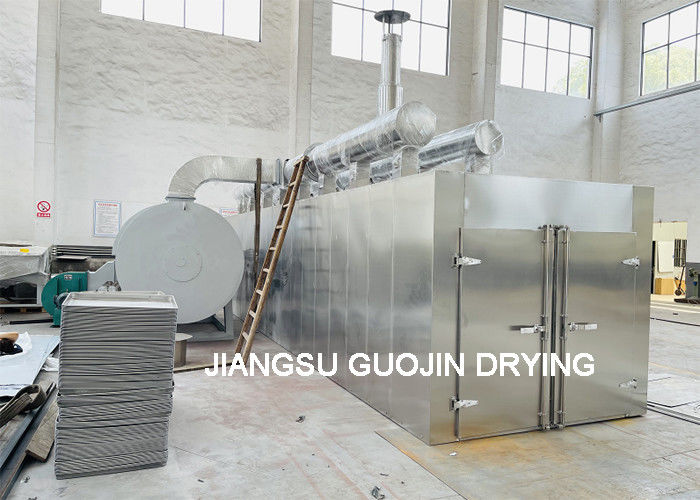

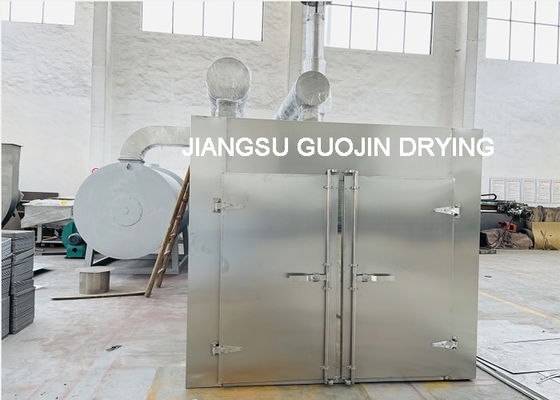

Product Show
