8.8M Length SS316L GMP Standard Tunnel Drying Oven Salt Drying Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | CE,ISO |
| Model Number: | GMP drying oven |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | 8.8M Length SS316L GMP Standard Tunnel Drying Oven Salt Drying Machine | Application: | Foodstuff Industry, Pharmaceutical Industry |
|---|---|---|---|
| Tray: | 384units | Tray Size: | 640x460x45 MM |
| Trolley: | 16units | Drying Capacity: | 2tons/day |
| Electric Heating Power: | 66kw | Overall Dimension: | 8.8x2.2x2M |
| Heat Source: | Natural Gas | Insulation Thickness: | 50mm |
| Highlight: | GMP Standard Hot Air Circulation Oven,8.8m Length Hot Air Circulation Oven,SS316L Air Circulation Oven |
||
Product Description
8.8M Length SS316L GMP Standard Tunnel Drying Oven Salt Drying Machine
Hot air circulation oven is equipped with low noise and high temperature resistant axial flow fan and automatic temperature control system. The whole circulation system is completely closed, which makes the thermal efficiency of the oven increase from 3-7% in the traditional drying room to 35-45% at present, and the maximum thermal efficiency can reach 50%.
Working Principle
This drying oven is suitable for the material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming, side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, de-watering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.
Product Feature
1. Options of heat source: steam, electricity, or far infrared, or both steam electricity.
2. Drying temperature: steam heating 50-130 ℃ , Max.140 ℃ .
3. Electricity and far infrared:50-300 ℃ .Automatic control system and computer control system on request.
4. Commonly used steam pressure 0.2-0.8Mpa(2-8 bar).
5. For CT-C-I, electric heated, rated power consumption:15Kw, real consumption : 5-8Kw.
6. The special requirements should be indicated at the time of order.
7. Please consult as for any special requirements.
8. For operation temperature of over 140 ℃ or less than 60 ℃ , please indicate when order.
9. The ovens and baking trays made by our factory are uniform in dimensions, and can be exchanged each other.
10. Baking plate dimensions:460*640*45mm
Technical Parameters
| 1 | Raw material | Salt |
| 2 | Input capacity | 2000kg/d |
| 3 | Drying time | According to customer’s requirement |
| 4 | Electric power | 66KW |
| 6 | Heat resource |
Natural gas(RLY30,300000 kcals/h) Gas furnace size: Inner(20G steel): 800x2500x8mm Middle: 960x2500x6mm |
| 7 | Material | Complete 316 SS |
| 8 | Tunnel dryer type | Tunnel drying oven |
| 9 | Overall dimension | 8800mmX2200mmX2000mm |
| 10 | Circulation shaft fan | 0.45kw X8sets=3.6kw |
| 11 | Trolley | 16unit |
| 12 | Trays | 24pcs/unit |
| 13 | Total treys | 384pcs |
| 14 | Trey dimension | 640mmX460mmX45mm |
| 15 | Insulation thickness | 50mm |
| 16 | Insulation material | Aluminium silicate |
| 17 | Dehumidifying system | Automatic discharge via air pipe |
Product Application
This drying oven is suitable for the material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming, side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, de-watering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.

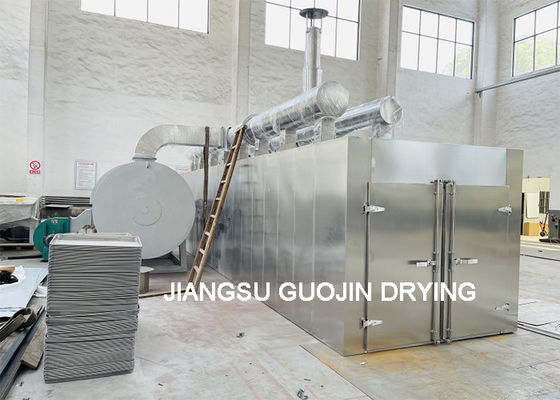

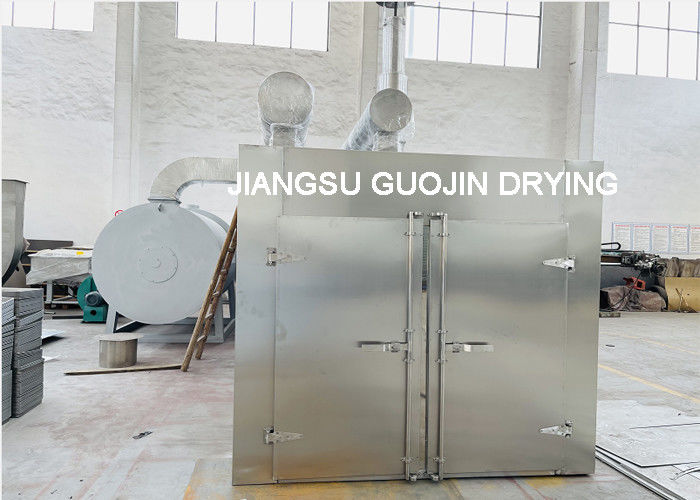

Product Show
