2tons/d Salt Stainless Steel 316L GMP Standard Tunnel Drying Oven
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | CE,ISO |
| Model Number: | GMP drying oven |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | 2tons/d Salt Stainless Steel 316L GMP Standard Tunnel Drying Oven | Application: | Foodstuff Industry,pharmaceutical Industry |
|---|---|---|---|
| Tray: | 384pieces | Tray Size: | 640x460x45MM |
| Trolley: | 16units | Drying Capacity: | 2 Tons/d |
| Electric Heating Power: | 66Kilowat | Overall Dimension: | 8800x2200x2000MM |
| Highlight: | 2tons/d Hot Air Circulation Oven,SS316L Hot Air Circulation Oven,Hot Air Circulation Oven 384pieces |
||
Product Description
2tons/d Salt Stainless Steel 316L GMP Standard Tunnel Drying Oven
Hot air circulation oven is equipped with low noise and high temperature resistant axial flow fan and automatic temperature control system. The whole circulation system is completely closed, which makes the thermal efficiency of the oven increase from 3-7% in the traditional drying room to 35-45% at present, and the maximum thermal efficiency can reach 50%.
Working Principle
This drying oven is suitable for the material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming, side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, de-watering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.
Product Feature
1,Most of hot air is circled inside the oven. The hot efficiency is high, The energy source can be saved.
2,Enhanced ventilation is used and it is equipped with adjustable air divider plate inside the oven. Raw materials can be dried evenly. The hot sources can be steam, hot water, electricity of far infrared.
3,The machine has low noise and stable operation. The temperature can be controlled automatically. The installation and maintenance are very convenient.
4,The applied fields are wide and can be suitable for all kinds of raw materials, lt is a comprehensive dry.
Technical Parameters
| 1 | Raw material | Salt |
| 2 | Input capacity | 2000kg/d |
| 3 | Drying time | According to customer’s requirement |
| 4 | Electric power | 66KW |
| 6 | Heat resource |
Natural gas(RLY30,300000 kcals/h) Gas furnace size: Inner(20G steel): 800x2500x8mm Middle: 960x2500x6mm |
| 7 | Material | Complete 316 SS |
| 8 | Tunnel dryer type | Tunnel drying oven |
| 9 | Overall dimension | 8800mmX2200mmX2000mm |
| 10 | Circulation shaft fan | 0.45kw X8sets=3.6kw |
| 11 | Trolley | 16unit |
| 12 | Trays | 24pcs/unit |
| 13 | Total treys | 384pcs |
| 14 | Trey dimension | 640mmX460mmX45mm |
| 15 | Insulation thickness | 50mm |
| 16 | Insulation material | Aluminium silicate |
| 17 | Dehumidifying system | Automatic discharge via air pipe |
Product Application
This drying oven is suitable for the material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming, side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, de-watering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.

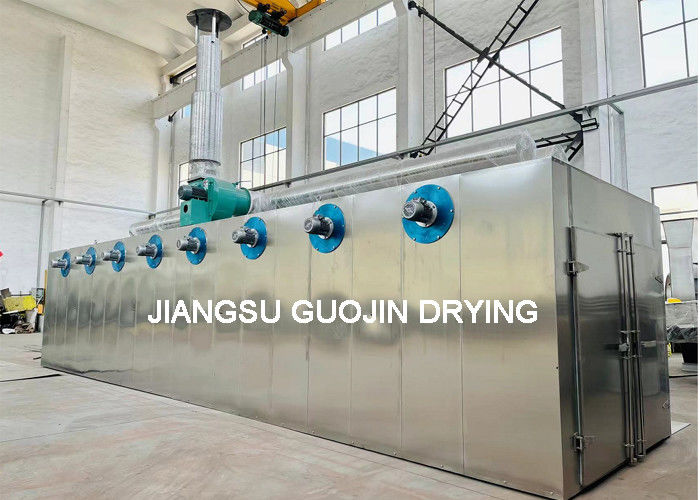

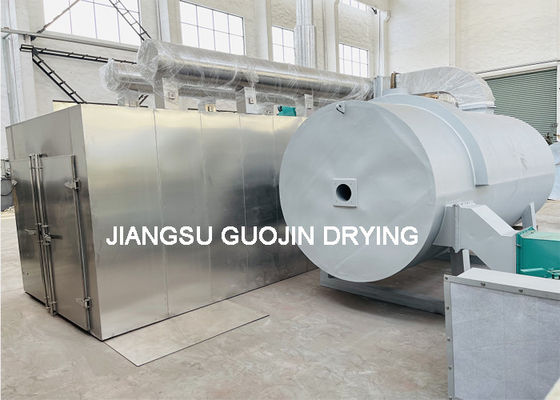

Product Show
