Stainless Steel 316L GMP Tunnel Drying Oven For Salt Drying 2tons Per Day
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | CE,ISO |
| Model Number: | GMP drying oven |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | 2tons Per Day Stainless Steel 316L GMP Tunnel Drying Oven For Salt Drying | Application: | Foodstuff Industry |
|---|---|---|---|
| Tray: | 384 PCS | Tray Size: | 640x460x45 Mm |
| Trolley: | 16 | Drying Capacity: | 2 Tons Per Day |
| Electric Heating Power: | 66 KW | Overall Dimension: | 8800x2200x2000mm |
| Highlight: | SS316L GMP Tunnel Drying Oven,2tons Per Day Tunnel Drying Oven,Foodstuff industry Tunnel Drying Oven |
||
Product Description
2tons per day Stainless Steel 316L GMP Tunnel Drying Oven For Salt Drying
Hot air circulation oven is equipped with low noise and high temperature resistant axial flow fan and automatic temperature control system. The whole circulation system is completely closed, which makes the thermal efficiency of the oven increase from 3-7% in the traditional drying room to 35-45% at present, and the maximum thermal efficiency can reach 50%.
Working Principle
This drying oven is suitable for the material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming, side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, de-watering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.
Product Feature
1,Most of hot air is circled inside the oven. The hot efficiency is high, The energy source can be saved.
2,Enhanced ventilation is used and it is equipped with adjustable air divider plate inside the oven. Raw materials can be dried evenly. The hot sources can be steam, hot water, electricity of far infrared.
3,The machine has low noise and stable operation. The temperature can be controlled automatically. The installation and maintenance are very convenient.
4,The applied fields are wide and can be suitable for all kinds of raw materials, lt is a comprehensive dry.
Technical Parameters
| 1 | Raw material | Salt |
| 2 | Input capacity | 2000kg/d |
| 3 | Drying time | According to customer’s requirement |
| 4 | Electric power | 66KW |
| 6 | Heat resource |
Natural gas(RLY30,300000 kcals/h) Gas furnace size: Inner(20G steel): 800x2500x8mm Middle: 960x2500x6mm |
| 7 | Material | Complete 316 SS |
| 8 | Tunnel dryer type | Tunnel drying oven |
| 9 | Overall dimension | 8800mmX2200mmX2000mm |
| 10 | Circulation shaft fan | 0.45kw X8sets=3.6kw |
| 11 | Trolley | 16unit |
| 12 | Trays | 24pcs/unit |
| 13 | Total treys | 384pcs |
| 14 | Trey dimension | 640mmX460mmX45mm |
| 15 | Insulation thickness | 50mm |
| 16 | Insulation material | Aluminium silicate |
| 17 | Dehumidifying system | Automatic discharge via air pipe |
Product Application
Heating, solidification, drying and dehydration of drugs, chemicals, food, agricultural and sideline products, marine products, e.g. raw medicines, crude drugs, traditional Chinese medicines prepared in ready-to-use forms, extracturms, powders, granular drugs, packing bottles, pigments, dyestuffs, vegetables, melons and fruits, sausages, plastic resins, electronic components and coatings.

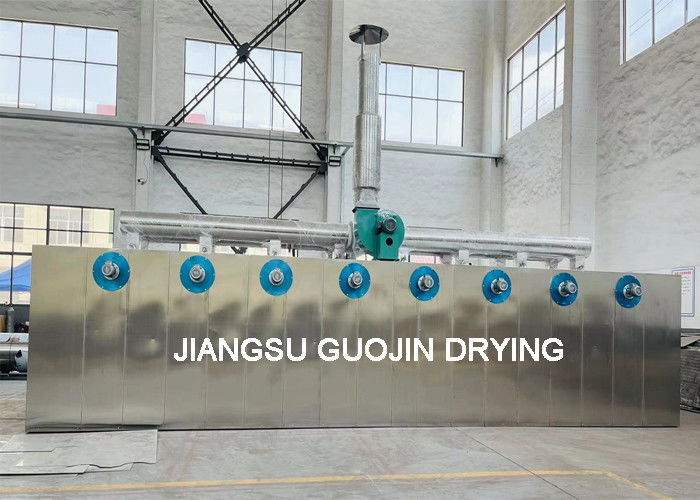

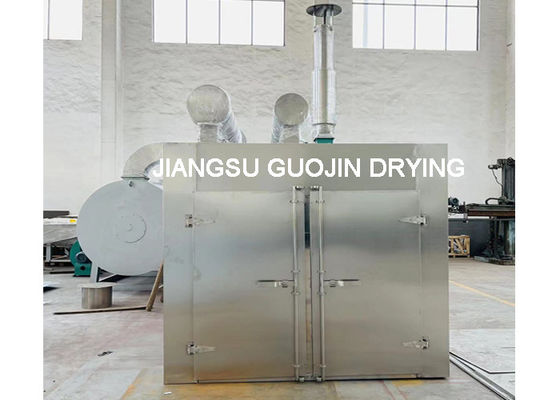

Product Show
