Industrial Horizontal Double Ribbon Blender for Mixing Dry Powder
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | WLDH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Industrial Horizontal Double Ribbon Blender For Mixing Dry Powder | Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing |
|---|---|---|---|
| Model Type: | WLDH-0.5 | Mixing Capacity: | 200-300kg |
| Equipped Power: | 4-11kw | Weight: | 1060kg |
| Material: | Stainless Steel | ||
| Highlight: | Horizontal Double Ribbon Blender,Dry Powder Double Ribbon Blender,11kw Industrial Horizontal Ribbon Mixer |
||
Product Description
Industrial Horizontal Double Ribbon Blender for Mixing Dry Powder
The Horizontal Ribbon Mixer is consisted of U-Shape tank, spiral and drive parts. Outer spiral make the material move from the sides to the center of the tank and the inner screw conveyor the material from the center to the sides to get the convective mixing. TDL series Ribbon Mixer can mix many kinds material especially for the powder and granular which with stick or cohesion character, or add a little liquid a paste material into powder and granular material. The cover of the tank can be made as open in order to clean and change parts easily.
Product Working Principle
WLDH series horizontal double blade ribbon blender mixer machine consists of a U-shaped horizontal trough and a specially fabricated agitator. A ribbon agitator consists of a set of inner and outer helical agitator. The outer ribbon moves materials in one direction and the inner ribbon moves the materials in the opposite direction.The ribbon ratates at approx. 45 RPM moves materials both radially and laterally to insure thorough blends in short cycle times. WLDH series horizontal double blade ribbon blender mixer machine is widely used to mix free-flowing powders, granules, small liquid additives to achieve paste and slurry product in food, chemical, and construction line.
Product Features
1. This mixer is wide application for mixing material, for the paste mixing even; keep granule mixing intact.
2. Material proportion different1:1000~5000 perfectly mixing.
3. The discon-nexion ribbon of the mixer can make the material mixed with more high speed and uniformity in short time.
4. This mixer also can be designed with the function to keep cold or heat. Add one layer outside the tank and put into medium into the interlayer to get the mixing material cold or heat. Usually use water for cool and hot steam or use electrical for heat.
Product Application
Powder-Powder, Powder-Grain, Powder-Liquid, Grain-Grain etc.
Technical Parameters
| Model | WLDH-0.1 | WLDH-0.3 | WLDH-0.5 | WLDH-1 | WLDH-1.5 | WLDH-2 | WLDH-3 | WLDH-4 | WLDH-6 | WLDH-8 | WLDH-10 |
| Mixed amount/batch(kg) | 30-50 | 100-150 | 200-300 | 400-600 | 600-900 | 800-1200 | 1200-1800 | 1600-2400 | 2400-3600 | 3200-4800 | 4000-6000 |
| Equipped power(kw) | 1.5-4 | 3-5.5 | 4-11 | 7.5-15 | 11-18.5 | 15-22 | 18.5-30 | 22-37 | 37-55 | 37-55 | 45-75 |
| Weight(kg) | 420 | 850 | 1060 | 1790 | 1900 | 2750 | 3500 | 4280 | 5300 | 6800 | 7800 |
Product More Details

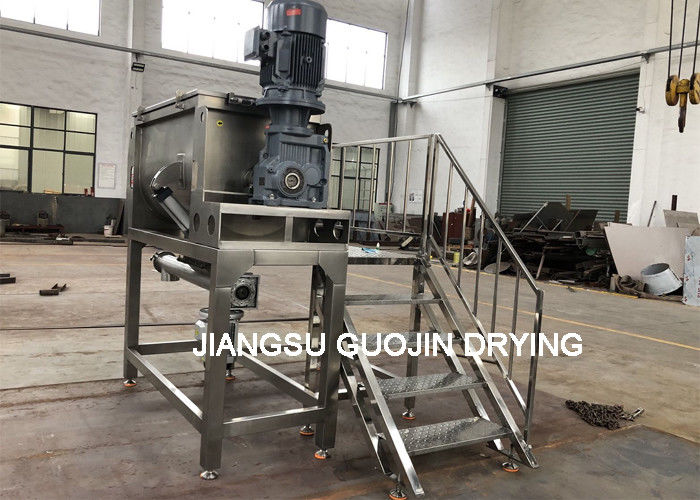

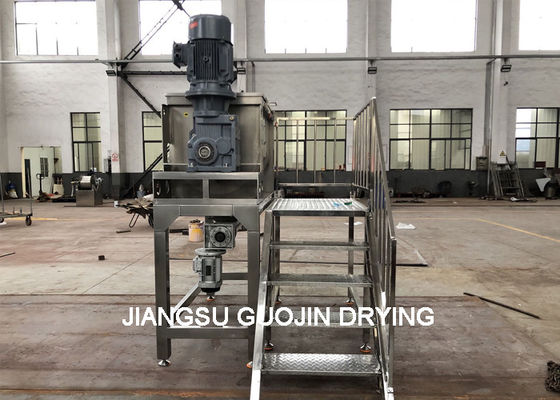

Product Show
electrical, steam, natural gas or other
