Manual Cut Film Pallet Stretch Wrapping Machine With PLC Touch Screen

Manual Cut Film Pallet Stretch Wrapping Machine With PLC Touch Screen

Product Details:

Place of Origin: China
Brand Name: Guojin
Certification: CE
Model Number: Smart Wasp

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export Carton
Delivery Time: 20-30days
Payment Terms: L/C, T/T
Supply Ability: 100sets per month
Get Best Price Contact Now

Detail Information
Model: XPS Voltage: 220V
Weight: 620KG Dimension: 2330*1500*2448MM
Max Load Weight: 1500KG Packing Height: 2000MM
Up&down Speed: 30loads/h Film Diameter: 250MM
Film Weight: 15KG Film Width: 500MM
Film Paper Core: 76MM Core Components: PLC, Motor, Engine
Turntable Speed: 0-12r/min Turntable Size: 1500MM
Highlight:

12r/min Pallet Stretch Wrapping Machine

,

PLC Screen Pallet Stretch Wrapping Machine

,

Manual Cut Film Pallet Wrapping Machine

Product Description

Effectively Pre-Stretch Pallet Stretch Wrapping Machine With PLC Touch Screen



Model
Smart Wasp X0ps
Spare Parts
Brand
Brand
Smart Wasp
Inverter
X-LINE
Cut Film
Manual
Position sensor
SICK(Germany)
Turntable speed
3-12RPM/mins
PLC
X-LINE
Packing height
2000mm/2400/2800 Optional
Travel Switch
OMRON(Japan)
Turntable size
1500mm/1650/1800 Optional
Relay
OMRON(Japan)
Pre-stretch rate
200% (1m stretch to 3m) or 250% (1m stretch to 3.5m)
Touch Screen
X-line With IoT function
Up & down speed
1.5~5.5 m/min
OPTIONAL FUNCTION
Wrapping speed
30 Load/H (1*1.2*1.8m pallet wrap two layers)
Remote control
Optional
Machine power
1.5KW
Top pressure function
Optional
Voltage
220V-240V/50/60HZ Single-Phase( 110V/ 50HZ optional)
Ramp
Optional
Machine weight
620kg
Weighing scale
Optional
Machine size
2330*1500*2448mm(L*W*H)

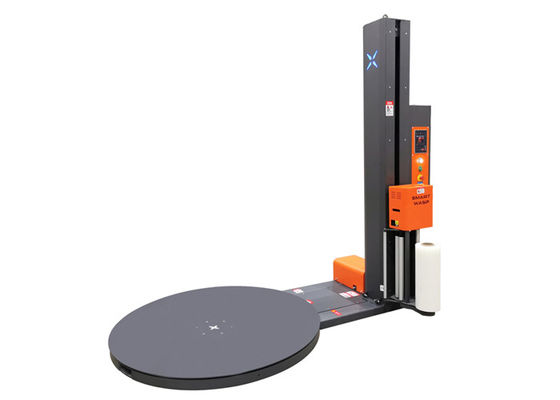

Manual Cut Film Pallet Stretch Wrapping Machine With PLC Touch Screen 0

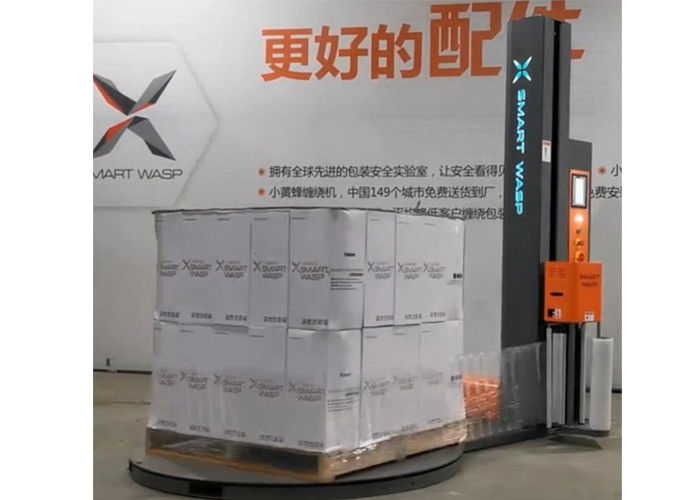

Manual Cut Film Pallet Stretch Wrapping Machine With PLC Touch Screen 1

Manual Cut Film Pallet Stretch Wrapping Machine With PLC Touch Screen 2

Manual Cut Film Pallet Stretch Wrapping Machine With PLC Touch Screen 3



Contact me

Manual Cut Film Pallet Stretch Wrapping Machine With PLC Touch Screen 4
