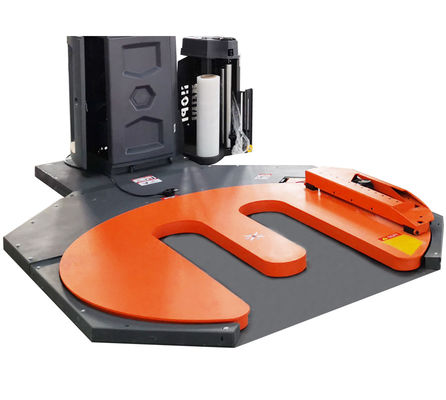

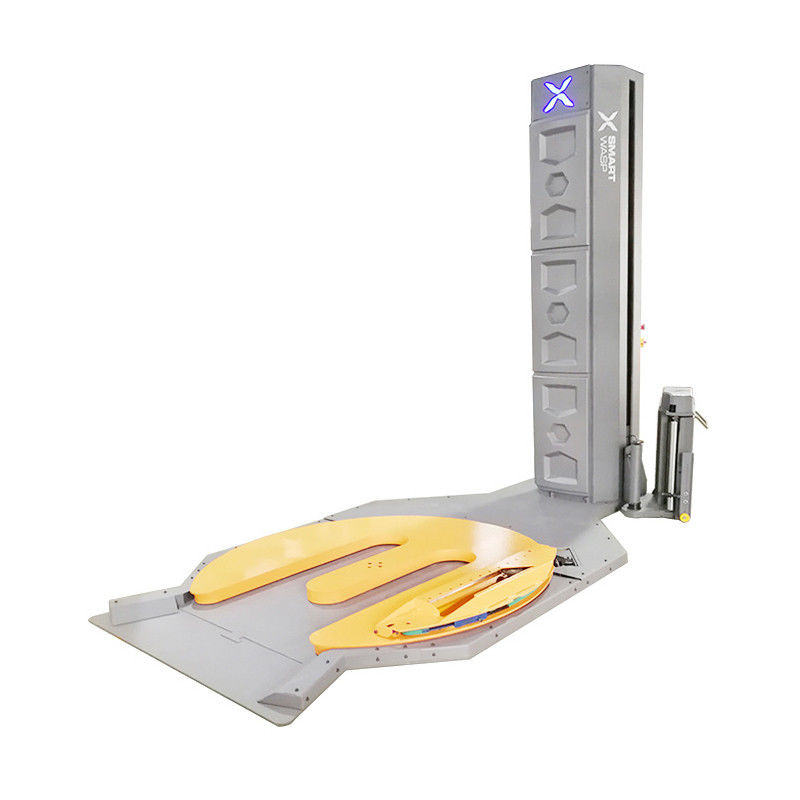

E Type Turntable Automatic Pallet Wrapper Easy For Pallet Jack
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | CE |
| Model Number: | Smart Wasp |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100sets per month |
|
Detail Information |
|||
| Model: | X500 | Power: | 1.5KW |
|---|---|---|---|
| Voltage: | 220V/110V/50/60HZ 1 PHASE | Weight: | 700kg |
| Dimension: | 2800*1650*2745mm(L*W*H) | Max Load Weight: | Maximum 2000KG |
| Packing Spead: | 30-40 Loads/hour (1x1.2x1.8 M 2 Layer NOT Include Loading And Unload Time) | Up&down Speed: | 1.5 ~5.5 M/mins |
| Film Diameter: | 250mm | Film Weight: | Maximum 15KG |
| Film Width: | 500mm(750mm Optional) | Film Paper Core: | 76mm |
| Core Components: | PLC, Motor, Engine | Turntable Speed: | 3-12 RPM/mins |
| Turntable Size: | 1650mm(1500mm/1800mm/2000mm Optional) | ||
| Highlight: | Automatic Pallet Stretch Wrapping Machine,E Type Turntable Automatic Pallet Wrapper,PLC Automatic Pallet Wrapper |
||
Product Description
E Type Turntable Fully Automatic Pallet Stretch Wrapping Machine Pallet Wrapper Easy For Pallet Jack
Technical Parameter
|
Model
|
Smart Wasp X500
|
Spare Parts
|
Brand
|
|
Maximum wrapping speed
|
30-40 loads/hour
(1x1.2x1.8 m 2 layer NOT include loading and Unload time)
|
Inverter
|
X-LINE
|
|
Max Load Weight
|
800KG
|
Position sensor
|
SICK(Germany)
|
|
Maximum Wrapping Height
|
2400mm(for pallet height:2300mm +100mm over top)
|
PLC
|
SIEMENS
|
|
Pallet Lifted Height
|
Minmum 70mm
|
Travel Switch
|
OMRON(Japan)
|
|
Turntable Size
|
1650mm(1500mm/1800mm/2000mm optional)
|
Motor
|
GPG Taiwan
|
|
Machine Power
|
1.5KW
|
Relay
|
OMRON(Japan)
|
|
Film Cut and Clamp
|
Fully Automatic (Mechanical type)
|
Touch screen
|
SIEMENS Touch screen
|
|
Fork Overall Width
|
Maximum 695mm
|
Switch
|
Schneider
|
|
Standard Film Width
|
500mm
|
Photoelectric sensor
|
Autonics
|
|
Constant Film Delivery Force
|
Standard
|
Terminal block
|
Weidmuller(Germany)
|
|
Standard Pre-Stretch
|
250%
|
24V power supply
|
OMRON
|
|
Film Capacity
|
250mm Diameter
|
|
|
|
Up&down Drive system
|
Up&down Drive system
|
|
|
|
Fix Film on Pallet
|
Auto
|
OPTIONAL FUNCTION
|
|
|
Roping system
|
Have
|
Ramp
|
Optional
|
|
Muti-layer function
|
Have
|
weighing scale
|
Optional
|
|
Machine Size
|
2.8*1.65*2.74m
|
Top pressure function
|
Optional
|
|
Machine weight
|
750KG
|
|
|
|
Voltage
|
110-240V/50HZ/60 HZ 3P
|
|
|
