Smart Wasp Fully Automatic Pallet Wrapping Machine With CE Certificate
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | CE |
| Model Number: | Smart Wasp |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100sets per month |
|
Detail Information |
|||
| Model: | X100 | Voltage: | 220V/110V/50/60HZ 1 PHASE |
|---|---|---|---|
| Weight: | 750kg | Dimension: | 2800*1650*2745mm(L*W*H) |
| Max Load Weight: | Maximum 2000KG | Packing Spead: | 20-30 Pallets/H |
| Up&down Speed: | 1.5 ~5.5 M/mins | Film Diameter: | 250mm |
| Film Weight: | Maximum 15KG | Film Width: | 500mm(750mm Optional) |
| Film Paper Core: | 76mm | Core Components: | PLC, Motor, Engine |
| Turntable Speed: | 3-12 RPM/mins | Turntable Size: | 1500mm |
| Highlight: | CE Certificate Pallet Wrapping Machine,Fully Automatic Pallet Wrapping Machine,PLC Pallet Packing Machine |
||
Product Description

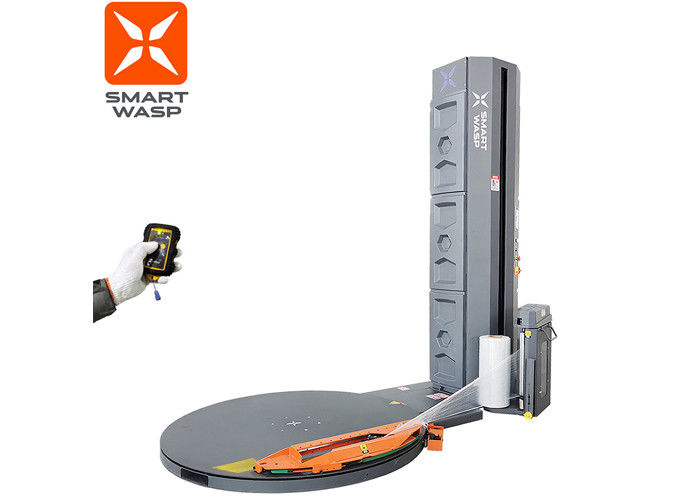

Smart Wasp Fully automatic pallet wrapping machine with CE Certificate
Technical Parameter
| Brand | SmartWasp | Soft start&stop | Inclued | ||||||||
| Model | X100 | Intelligent Alarm | Inclued | ||||||||
| Load weight | Maximum 2000KG | stop at original | Inclued | ||||||||
| Turntable speed | 3-12 RPM/mins | Speed Adjustable | Inclued | ||||||||
| Wrapping height | Maximum 2300mm (1800mm /3000mm optional) |
Pallet grip system | Inclued | ||||||||
| Turntable size | 1650mm(1800mm/2000mm/optional) | Measure height | Automatic (black/blue color optional) | ||||||||
| Pre-stretch rate | 200%(1m stretch to 3m) | Wrapping force | Adjustable | ||||||||
| Up&down speed | 1.5 ~5.5 m/mins | Product Memory | Five Mode | ||||||||
| Wrapping speed | 30 - 40 load / H (1x1.2x1.8m pallet Warp Two Layers) | cut film clamp film | Fully automatic | ||||||||
| Film Width | 500mm(750mm optional) | Remote start machine | Have | ||||||||
| Film diameter | 250mm | PLC | SIEMENS | ||||||||
| Film paper Core | 76 mm (50 mm optional) | Inverter | SIEMENS | ||||||||
| Film weight | Maximum 15KG | Touch screen | SMARTWASP IoT | ||||||||
| Machine power | 1.5KW | Sensor brand | SICK (Germany Brand) | ||||||||
| Voltage | 220V-240V/50/60HZ Single-Phase (110V/50 Hz optional) |
safety device | film carriage bottom safety sensor | ||||||||
| Machine weight | 750KG | Certificate | CE | ||||||||
| Machine size | 2800*1650*2745mm(L*W*H) | Optional device | Ramp ,Weighing scale |
