Foodstuff Chilli Dryer Conveyor Mesh Belt Drying Machine Single Layer 2x10 Meter

Foodstuff Chilli Dryer Conveyor Mesh Belt Drying Machine Single Layer 2x10 Meter

Product Details:

Place of Origin: China
Brand Name: Guojin
Certification: ISO,CE
Model Number: SPCD-2-10

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export Carton
Delivery Time: 20-30days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Get Best Price Contact Now

Detail Information

Item Name: Foodstuff Chilli Dryer 2x10 Meter Single Layer Conveyor Mesh Belt Drying Machine Model Type: SPCD-2-10
Application: Foodstuff Processing Belt Width: 2 M
Length Of Drying Section: 10 M Thickness Of Maaterial Covered: 10-80 Mm
Temperature: 60-150 Deg. Steam Pressure: 0.2-0.8 Mpa
Steam Consumption: 150-375 Kg/h Drying Time: 0.25-1.5h
Blower Power: 16 Kw Equipment Power: 16.75 Kw
Heat Source: Electricity,Steam
Highlight:

Conveyor Mesh Belt Drying Machine

,

Foodstuff Single Layer Belt Drying Machine

,

Foodstuff Chilli Dryer

Product Description

Foodstuff Chilli Dryer 2x10 Meter Single Layer Conveyor Mesh Belt Drying Machine

Mesh Belt Dryer is continuous drying equipment for batch production.The machine is used for drying material in pieces,tapes and particles shape,such as de-watering egetables and herbs.Especially it is good for heat sensitive raw materials.The advantage of the machine is fast drying speed,high evaporation efficiency,good product quality.For pasty and mushy material,it can be dried in a strip shape processed by a granulator.




Product Application

The vegetable dryer is an industrial continuous drying equipment. It is widely used for chemical industry, foodstuff industry( fruit and vegetable or nut ), pharmaceutical industry, construction materials industry, electronic industry and so on. Especially it is suitable for drying raw materials that are good in breathability and have the shape of pieces or strip of granule. It is also possible to dry the pasted raw materials such as filter cake after shaped through granulator or extruder.





Product Working Principle

The material is uniformly spread on the stainless steel net by feeder.The mesh belt uses generally 12-60 mesh stainless steel wire net and it is drawn and moved inside the dryer by a transferring device.The dryer is composed of several units.For each unit,hot air is circulated separately.In the first unit,air out from circulation air blower(5) passes through beside in to low unit after air is up and heated by steam heater(4)be shared by separator (3)the air is sprayed through mesh belt in to top of the machine.The drying process is hot air passes through the mesh belt covered with special moisture from the top to the bottom or from the bottom to the top.This will complete the heat and mass transfer process.The air pipe of the top is connected with a fan,some air is recycled,and some is exhausted.Exhausted gas is discharged with a special moisture elimination blower and other waster gas is controlled through and adjustment valve.The top and low circulation units can be freely equipped according to the users’ requirement.The unit number can be selected according to the demand.





Technical Parameters

Type SPCD-2-10
Unit number 5
Belt width(m) 2
Length of drying section(m) 10
Thickness of the mataerial to be covered(mm) 10~80
Temperature(oC) 60~150
Steam pressure(Mpa) 0.2~0.8
Steam consumption(kg/h) 225-600
Drying time(h) 0.25-1.5
Drying efficiency(kg H2O/h) 120-300
Total power of the blower(kw) 16
Total power of the equipment(kw) 16.75





Product Show

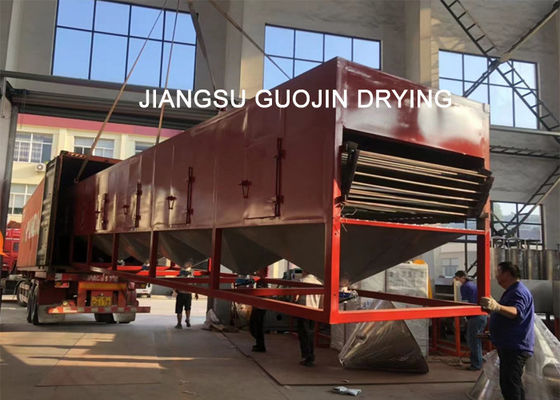

Foodstuff Chilli Dryer Conveyor Mesh Belt Drying Machine Single Layer 2x10 Meter 0

Contact Me

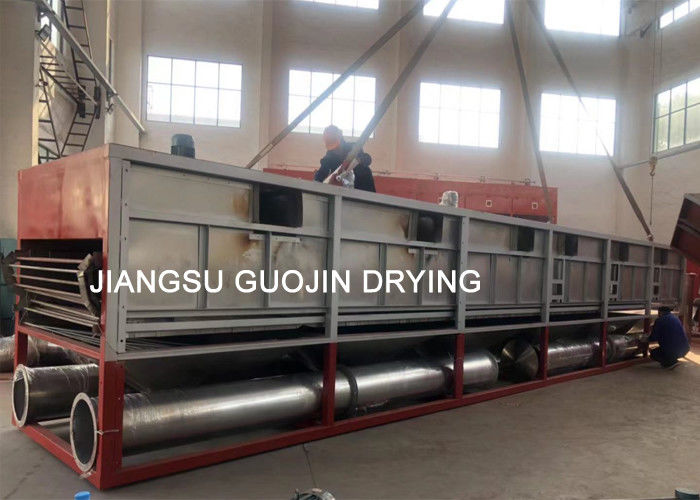

Foodstuff Chilli Dryer Conveyor Mesh Belt Drying Machine Single Layer 2x10 Meter 1
