Conveyor Mesh Belt Hot Air Drying Machine Single Layer 2x10 Meter For Chilli
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO,CE |
| Model Number: | SPCD-2-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | 2x10 Meter Single Layer Conveyor Mesh Belt Drying Machine For Chilli | Model Type: | SPCD-2-10 |
|---|---|---|---|
| Application: | Foodstuff Processing | Belt Width: | 2M |
| Length Of Drying Section: | 10M | Thickness Of Maaterial Covered: | 10-80mm |
| Temperature: | 60-150Deg. | Steam Pressure: | 0.2-0.8Mpa |
| Steam Consumption: | 150-375kg/h | Drying Time: | 0.25-1.5h |
| Blower Power: | 16kw | Equipment Power: | 16.75kw |
| Heat Source: | Electricity,Steam | ||
| Highlight: | Chilli Conveyor Hot Air Drying Machine,Single Layer Hot Air Drying Machine,2x10 Meter Mesh Belt Dryer |
||
Product Description
2x10 Meter Single Layer Conveyor Mesh Belt Drying Machine For Chilli
Mesh Belt Dryer is continuous drying equipment for batch production.The machine is used for drying material in pieces,tapes and particles shape,such as de-watering egetables and herbs.Especially it is good for heat sensitive raw materials.The advantage of the machine is fast drying speed,high evaporation efficiency,good product quality.For pasty and mushy material,it can be dried in a strip shape processed by a granulator.
Product Application
The vegetable dryer is an industrial continuous drying equipment. It is widely used for chemical industry, foodstuff industry( fruit and vegetable or nut ), pharmaceutical industry, construction materials industry, electronic industry and so on. Especially it is suitable for drying raw materials that are good in breathability and have the shape of pieces or strip of granule. It is also possible to dry the pasted raw materials such as filter cake after shaped through granulator or extruder.
Product Features
In particle application,we recognized that one design solution for various materials’ drying process is unrealistic.
Therefore, mesh belt dryer emphasizes is specificity compare with the versatility. Different models in SPCD series are designed for different material,such as vegetable dehydrating dryer,rice dryer,pigment dryer,cotton and wool dryer,roasted food dryer,plastic granules,magnetic,yellow iron oxide pigments,light calcium carbonate,white carbon and so on.Customers can have a discussion with our sales when they choose for the specific material.According to the material,sales will suggest the amount of wind,temperature,relative humidity,operating speed and other technical parameters of the equipment,in order to the suitability,reliability,optimum operating performance.
Technical Parameters
| Type | SPCD-2-10 |
| Unit number | 5 |
| Belt width(m) | 2 |
| Length of drying section(m) | 10 |
| Thickness of the mataerial to be covered(mm) | 10~80 |
| Temperature(oC) | 60~150 |
| Steam pressure(Mpa) | 0.2~0.8 |
| Steam consumption(kg/h) | 225-600 |
| Drying time(h) | 0.25-1.5 |
| Drying efficiency(kg H2O/h) | 120-300 |
| Total power of the blower(kw) | 16 |
| Total power of the equipment(kw) | 16.75 |

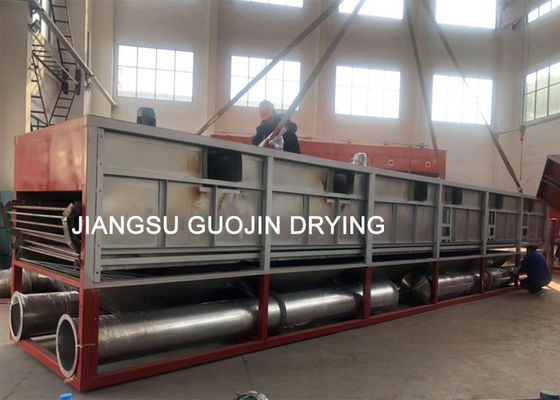

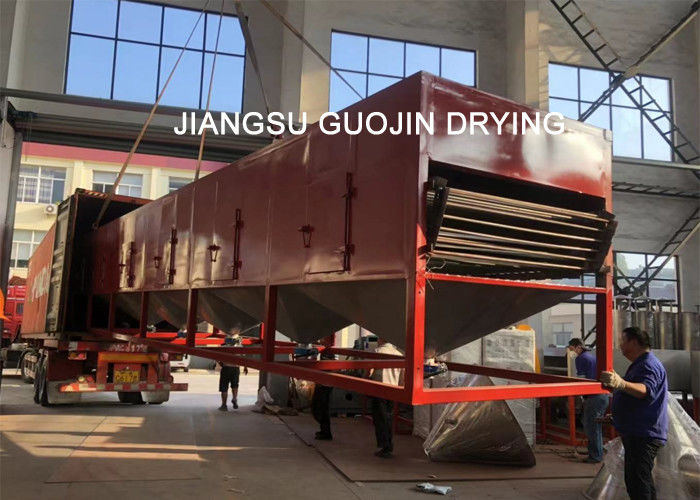

Product Show
