Hot Air Conveyor Mesh Belt Dryer Pharmaceutical Processing 1.6x12 Meter
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO,CE |
| Model Number: | SPCD-1.6x12 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | 1.6x12 Meter Single Layer Conveyor Mesh Belt Drier Mesh Belt Drying Machine | Model Type: | SPCD-1.6x12 |
|---|---|---|---|
| Application: | Chemical Processing, Pharmaceutical Processing | Belt Width: | 1.6M |
| Length Of Drying Section: | 12M | Thickness Of Maaterial Covered: | 10-80mm |
| Temperature: | 60-150Deg. | Steam Pressure: | 0.2-0.8Mpa |
| Steam Consumption: | 150-375kg/h | Drying Time: | 0.2-1.2h |
| Blower Power: | 15kw | Equipment Power: | 12kw |
| Heat Source: | Electricity,Steam | ||
| High Light: | Hot Air Conveyor Mesh Belt Dryer,Conveyor Mesh Belt Dryer 12M,Pharmaceutical Processing Conveyor Belt Dryer |
||
Product Description
1.6x12 Meter Single Layer Conveyor Mesh Belt Drier Mesh Belt Drying Machine
The mesh belt dryer is conceptually very simple. Product is carried through the dryer on conveyors and hot air is forced through the bed of product. It is often described as simply a conveyor in a box with hot air. The reality, however, is that the belt dryer is one of the most versatile dryers available. Few drying technologies can match the belt dryer’s ability to handle such a wide range of products. Products as varied in composition, shape, and size as coated breakfast cereals, nuts, animal feed, charcoal briquettes, and rubber can be dried in a conveyor dryer.
Product Application
The vegetable dryer is an industrial continuous drying equipment. It is widely used for chemical industry, foodstuff industry( fruit and vegetable or nut ), pharmaceutical industry, construction materials industry, electronic industry and so on. Especially it is suitable for drying raw materials that are good in breathability and have the shape of pieces or strip of granule. It is also possible to dry the pasted raw materials such as filter cake after shaped through granulator or extruder.
Product Features
In particle application,we recognized that one design solution for various materials’ drying process is unrealistic.
Therefore, mesh belt dryer emphasizes is specificity compare with the versatility. Different models in SPCD series are designed for different material,such as vegetable dehydrating dryer,rice dryer,pigment dryer,cotton and wool dryer,roasted food dryer,plastic granules,magnetic,yellow iron oxide pigments,light calcium carbonate,white carbon and so on.Customers can have a discussion with our sales when they choose for the specific material.According to the material,sales will suggest the amount of wind,temperature,relative humidity,operating speed and other technical parameters of the equipment,in order to the suitability,reliability,optimum operating performance.
Technical Parameters
| Type | SPCD-1.6x12 |
| Unit number | 5 |
| Belt width(m) | 1.6 |
| Length of drying section(m) | 12 |
| Thickness of the mataerial to be covered(mm) | 10~80 |
| Temperature(oC) | 60~150 |
| Steam pressure(Mpa) | 0.2~0.8 |
| Steam consumption(kg/h) | 180-500 |
| Drying time(h) | 0.2-1.2 |
| Drying efficiency(kg H2O/h) | 100-260 |
| Total power of the blower(kw) | 15 |
| Total power of the equipment(kw) | 12.55 |

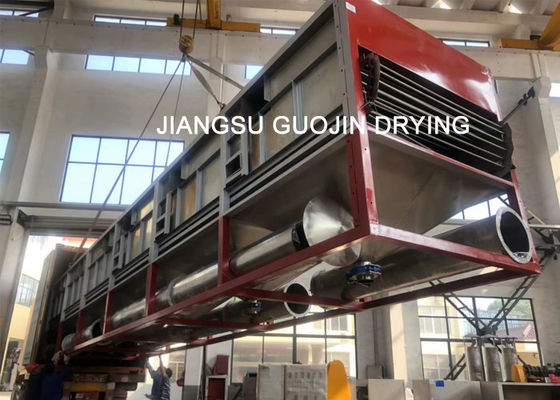

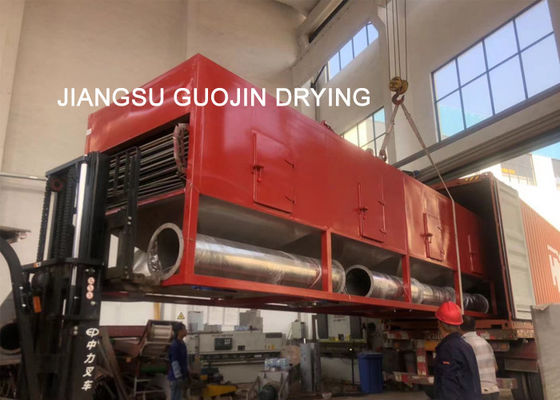

Product Show
