Single Pass Conveyor Mesh Belt Dryer 1.6x12M Shipped to Pakistan
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO,CE |
| Model Number: | SPCD-1.6-12 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | 1.6x12Meter Single Layer Conveyor Mesh Belt Dryer Shipped To Pakistan | Model Type: | SPCD-1.6-12 |
|---|---|---|---|
| Application: | Food Processing | Belt Width: | 1.6Meter |
| Length Of Drying Section: | 12Meter | Thickness Of Maaterial Covered: | 10-80 Mm |
| Temperature: | 60-150Deg. C | Steam Pressure: | 0.2-0.8 Mpa |
| Steam Consumption: | 150-375 Kg/h | Drying Time: | 0.2-1.2h |
| Blower Power: | 15KW | Equipment Power: | 12KW |
| Heat Source: | Electricity,Steam | ||
| Highlight: | Single Pass Conveyor Mesh Belt Dryer,1.6M Conveyor Mesh Belt Dryer,150kg/h Hot Air Drying Machine |
||
Product Description
1.6x12Meter Single Layer Conveyor Mesh Belt Dryer Shipped to Pakistan
SPCD Single Pass/Single Plate Conveyor Dryer is continuous dryer for large production. It is used for drying sheet materials, bar masterials granules materials that have good air permeability. As to dehydrated vegetable Chineseherb pieces which have high moisture and need low drying temperature, SPCD belt dryer is specially suitable.
The mesh belt dryer is conceptually very simple. Product is carried through the dryer on conveyors and hot air is forced through the bed of product. It is often described as simply a conveyor in a box with hot air. The reality, however, is that the belt dryer is one of the most versatile dryers available. Few drying technologies can match the belt dryer’s ability to handle such a wide range of products. Products as varied in composition, shape, and size as coated breakfast cereals, nuts, animal feed, charcoal briquettes, and rubber can be dried in a conveyor dryer.
Product Application
The vegetable dryer is an industrial continuous drying equipment. It is widely used for chemical industry, foodstuff industry( fruit and vegetable or nut ), pharmaceutical industry, construction materials industry, electronic industry and so on. Especially it is suitable for drying raw materials that are good in breathability and have the shape of pieces or strip of granule. It is also possible to dry the pasted raw materials such as filter cake after shaped through granulator or extruder.
Technical Parameters
| Type | SPCD-1.6-12 |
| Unit number | 5 |
| Belt width(m) | 1.6 |
| Length of drying section(m) | 12 |
| Thickness of the mataerial to be covered(mm) | 10~80 |
| Temperature(oC) | 60~150 |
| Steam pressure(Mpa) | 0.2~0.8 |
| Steam consumption(kg/h) | 180-500 |
| Drying time(h) | 0.2-1.2 |
| Drying efficiency(kg H2O/h) | 100-260 |
| Total power of the blower(kw) | 15 |
| Total power of the equipment(kw) | 12.55 |

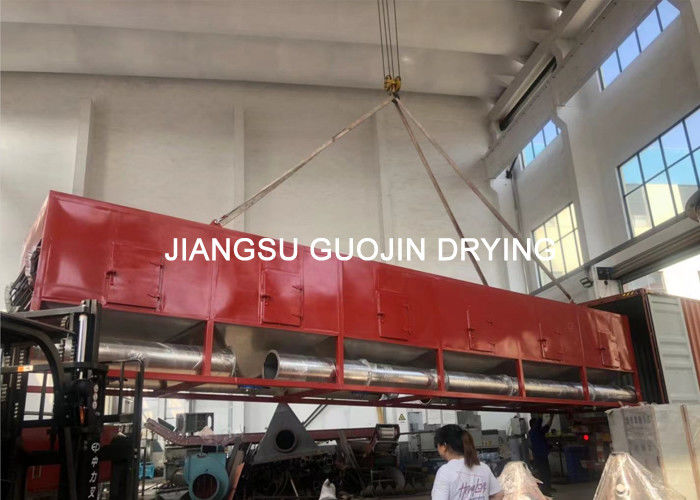

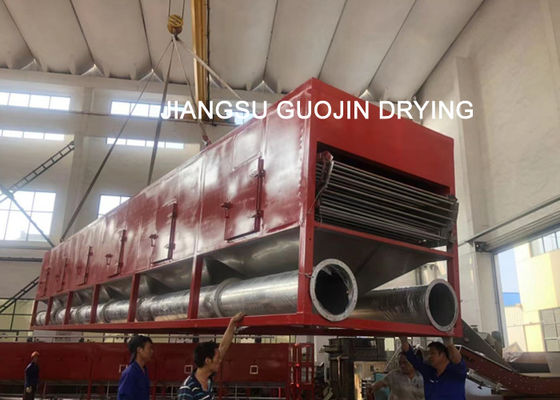

Product Show
