Chemical Industry 7.5KW 100kg/h Pressure Nozzle Spray Dryer
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | CE |
| Model Number: | PNSD-100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | 100kg/h Water Evaporation Chemical IndustryPressure Nozzle Spray Drier | Model Type: | PNSD-100 |
|---|---|---|---|
| Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing | Water Evaporation: | 100 Kg/h |
| Diaphragm Pump Power: | 7.5 Kw | Diaphragm Pump Pressure: | It Can Be Regulated From 0.6-5, In General, It Will Be From 1 To 3. |
| Heating Way: | Electricity + Steam | Diameter Of Tower Body: | 2400 Mm |
| Total Height: | 11600 Mm | Control: | PLC Touch Screen |
| Highlight: | 100kg/h Pressure Nozzle Spray Dryer,7.5KW Pressure Nozzle Spray Dryer,100kg/h Pressure Spray Dryer |
||
Product Description
100kg/h Water Evaporation Chemical IndustryPressure Nozzle Spray Drier
Pressure Spray Dryer drying speed, greatly increasing the surface area of the material after the liquid is atomized in a stream of hot air, it can instantly evaporate moisture 95-98, to complete the drying time of just ten seconds to tens of seconds species, particularly suitable for drying heat sensitive materials.
Spray Dryer wide pressure range, according to the characteristics of materials, can be dried with hot air, it can also be used cold granulation, strong adaptability to the material properties.
Simple pressure spray dryer operation is stable, easy to control, easy to automate operations. Pressure is a spray dryer can be completed simultaneously drying and granulating device. Press pressure spray dryer process to adjust the pressure of the feed pump, the size of the flow orifice of the desired size by a certain proportion of spherical particles.
Working Principle
After fresh air is filtered and heated, it enters into the air distributor which on the top of the drier. The hot air in spiral
form equably enters into the drying room. When liquid raw material is passed through the high-speed centrifugal sprayer on the top of the tower, it will be rotated and sprayed into the extreme slim mist liquid beads. Raw material can be dried to the final products instantly while it contact with the heated air. Finished products are discharged continuously from bottom of the drying tower and cyclones segregator. Wasted air is discharged from the blower.
Features
1. The tower is equipped with a cold air jacket;
2. The towers is equipped with automatic vibration device;
3. There are quick opening cleaning hole and sewage hole in the tower and piping system;
4. The dryer can be equipped with automatic control & thermostatic feeding tank;
5. Manual supplied accessories for the high-pressure washing system is available;
6. The material contacting area is constructed by stainless steel; (or use all stainless steel);
7. The material is collected by two-stage cyclone dust collector. Or use a cyclone operator and wet dust collector instead;
8. The inlet air temperature can be controlled by a continuous automatic control device.
9. The dryer can be equipped with gas cleaning device.
Application
Chemical industry: Sodium Fluoride (Potassium ), Alkaline Dyestuff And Pigment,Dyestuff Intermediate, Mn3o4, Compound Fertilizer, Formic Silicic Acid, Catalyst, Sulphuric Acid Agent, Amino Acid,White Carbon, and etc.
Food Industry: Fatty Milk Powder, Protein, Cocoa Milk Powder, Subsitute Milk Powder,Egg White (Yolk), Food And Plant,Oats,Chicken Juice, Coffee, Instant Dissoluble Tea ,Seasoning Meat,Protein ,Soybean,Peanut Protein, Hydrolysate, Sugar,Corn Syrup,Corn Starch,Glucose, Pectin,Malt Sugar, Sorbic Acid Potassium, and etc.
Pharmaceutical Industry: Chinese Traditional Medicines, Pesticide, Antibiotic, Medical Drinking Agent,and etc.
Plastics and Resin: AB, ABS Emulsion, Uric Acid Resin, Phenolic Aldehyde Resin, Urea-Formaldehyde Resin, Formaldehyde Resin, Polythene, Poly-Chloroprene, And etc.
Detergent: Common Washing Powder,Advanced Washing Powder,Soap Powder, Soda Ash, Emulsifier, Brightening Agent, Orthophosphoric Acid, and etc.
Ceramic: Aluminium Oxide, Ceramic Tile Material, MagnesiumOxide, Talcum, and etc. Other: Calmogastrin, Hime Chloride , Stearic Acid Agent, and etc.
Other: Calmogastrin, Hime Chloride , Stearic Acid Agent, and etc.
Technical Parameter
| Model | PNSD-25 | PNSD-50 | PNSD-100 | PNSD-150 | PNSD-200 | PNSD-300 | PNSD-500 | PNSD-1000-2000 | |
| Water Evaporation capacity | 25 | 50 | 100 | 150 | 200 | 300 | 500 | The index can be affirmed in accordance with practical conditions. | |
| Diaphragm pump | Power(KW) | 0.35 | 4 | 7.5 | 11 | 15 | 22 | 30 | |
| Pressure(Mpa) | It can be regulated from 0.6 to 5, in general, it will be from 1 to 3. | ||||||||
| Heating way | electricity | electricity+steam | electricity+coal fuel oil hot air furnace | ||||||
| Diameter of tower body(mm) | 1300 | 1800 | 2400 | 2600 | 2800 | 3200 | 3800 | ||
| Total height(mm) | 7800 | 9200 | 11600 | 14000 | 15300 | 17100 | 19000 | ||
| Remark |
1. The evaporated amount is related to characteristics of raw material. The evaporated amount listed in the table is related to temperature. The data can be used for reference only. 2. The atomizing pressure and Model of pump will be equipped in accordance with the amount of raw material to be treated and the size require of product. 3. The power of fan should be iincreased suitably after equipped with cloth bag duster. |
||||||||
- -What is the raw material? Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.
- -What is the capacity per hour you need (kg/h)?
- -What is the initial moisture and final moisture of finished products you require to get?
- -What about the maximum heat temperature of raw material?
- -What kind of fuel you use to heat the dryer? Natural gas, electricity, fuel oil or steam?
- -Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?
- -Provide us your country’s electricity information, such as phases, voltage, HZ?
- -How about dust collect requirements?
- -Other special requirements?
Flow Diagram

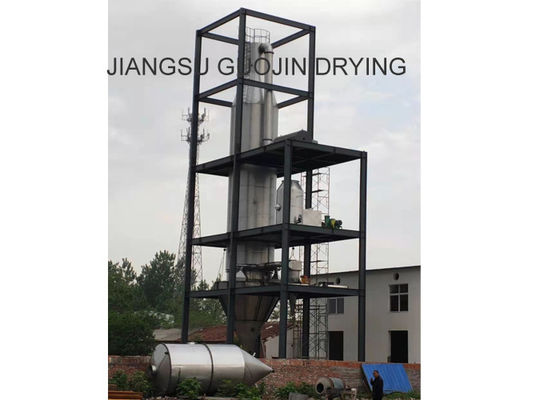

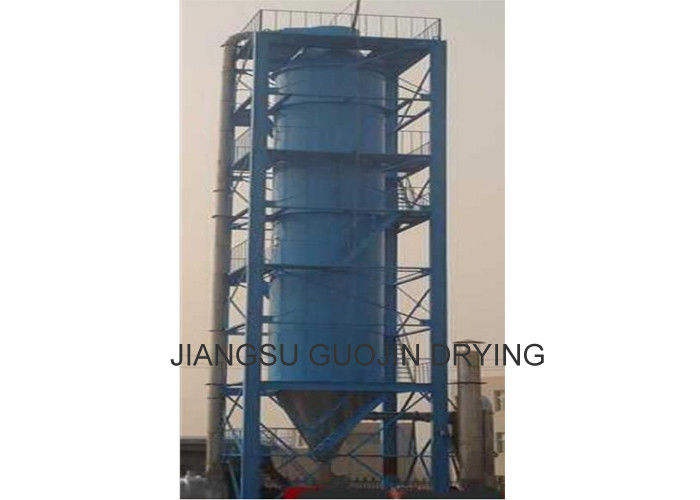

Product Show
