2000L 4000L 6000L Double Spiral Horizontal Ribbon Mixer
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | WLDH-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | 2000L/4000L/6000L Low Speed Horizontal Double Spiral Ribbon Mixer | Application: | Chemical Industry |
|---|---|---|---|
| Model Type: | WLDH-1 | Mixing Capacity: | 400-600 Kg |
| Equipped Power: | 7.5-15 Kw | Weight: | 1790 Kg |
| Material: | Stainless Steel 304 | ||
| Highlight: | Double Spiral Horizontal Ribbon Mixer,6000L Horizontal Ribbon Mixer,4000L Double Spiral Mixer |
||
Product Description
2000L/4000L/6000L Low Speed Horizontal Double Spiral Ribbon Mixer
1. ribbon mixer for powder
2. it can be added liquid pumping.
3. spiral ribbon
4.mixing powder or suspended liquid
Product Working Principle
WLDH series horizontal double blade ribbon blender mixer machine consists of a U-shaped horizontal trough and a specially fabricated agitator. A ribbon agitator consists of a set of inner and outer helical agitator. The outer ribbon moves materials in one direction and the inner ribbon moves the materials in the opposite direction.The ribbon ratates at approx. 45 RPM moves materials both radially and laterally to insure thorough blends in short cycle times. WLDH series horizontal double blade ribbon blender mixer machine is widely used to mix free-flowing powders, granules, small liquid additives to achieve paste and slurry product in food, chemical, and construction line.
Product Features
1) Stable working, noiseless, easy to disassemble;
2) Available for continuous use;
3) Energy saving, compact structure, high precision transmission;
4) Strong loading capability and easy to assemble;
5) Less influenced by particle size and density;
6) With jacket or coil to heating;
7) Dedusting system and injection system for option;
8) Star/knife-edge/butterfly types valve for option;
9) Manual or pneumatic valve discharge.
Product Application
The Horizontal ribbon mixer is generally used to mix viscous or adhesive powder material,or powder with liquid additive,or pasty material.Because it is difficult to clean viscous material,the machine is good at mixing material with large capacity and continuous demand.
This machine is applied in the industry of pharmaceutical,foodstuff,chemical,pesticides,plastic,pigment and cosmetics.
Technical Parameters
| Model | WLDH-0.1 | WLDH-0.3 | WLDH-0.5 | WLDH-1 | WLDH-1.5 | WLDH-2 | WLDH-3 | WLDH-4 | WLDH-6 | WLDH-8 | WLDH-10 |
| Mixed amount/batch(kg) | 30-50 | 100-150 | 200-300 | 400-600 | 600-900 | 800-1200 | 1200-1800 | 1600-2400 | 2400-3600 | 3200-4800 | 4000-6000 |
| Equipped power(kw) | 1.5-4 | 3-5.5 | 4-11 | 7.5-15 | 11-18.5 | 15-22 | 18.5-30 | 22-37 | 37-55 | 37-55 | 45-75 |
| Weight(kg) | 420 | 850 | 1060 | 1790 | 1900 | 2750 | 3500 | 4280 | 5300 | 6800 | 7800 |
Product More Details

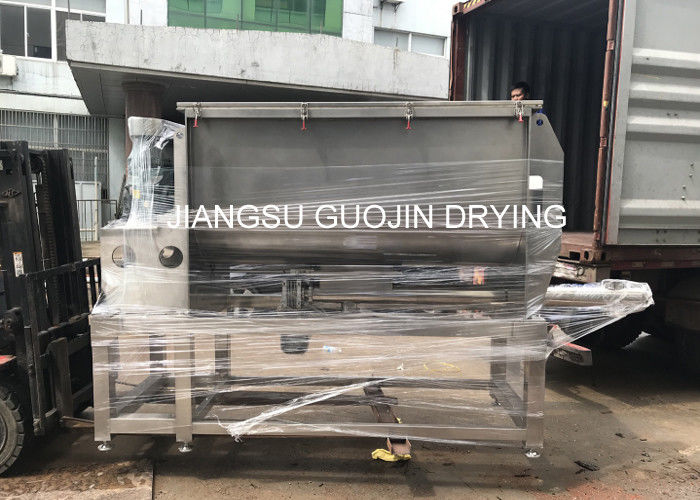

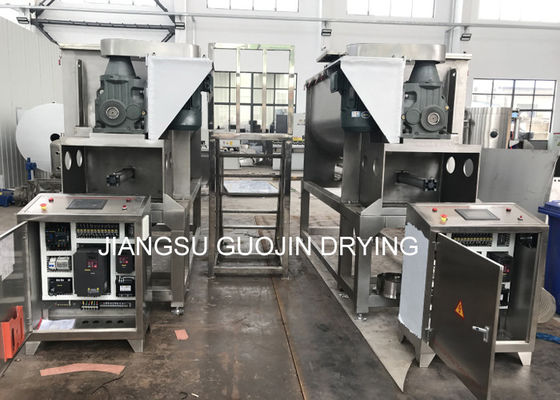

Product Show
electrical, steam, natural gas or other
