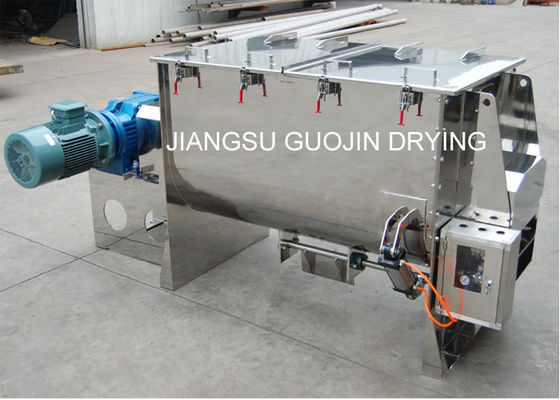

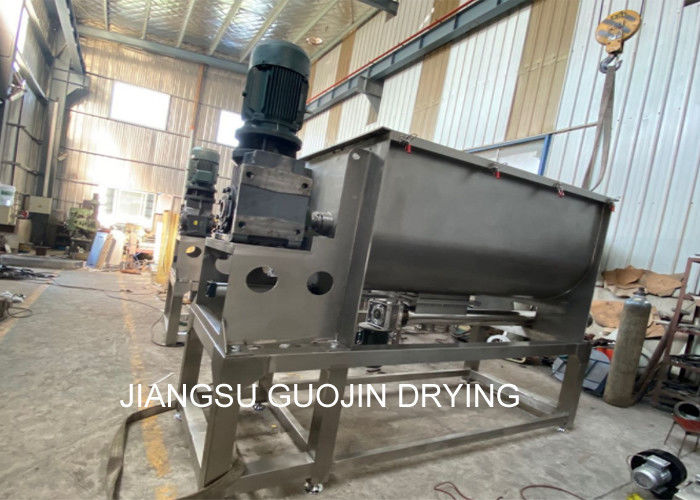

66rpm Horizontal Ribbon Paddle Mixing Machine For Powder
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | WLDH-0.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Horizontal Ribbon Paddle Mixing Blending Machine For Dry Wet Powder Granule Paste | Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing |
|---|---|---|---|
| Model Type: | WLDH-0.1 | Mixing Capacity: | 30-50 Kg |
| Equipped Power: | 1.5-4 Kw | Weight: | 420 Kg |
| Rotate Speed: | 66r/min | Heating Source: | Electrical |
| Highlight: | Ribbon Paddle Mixing Machine,66rpm Paddle Mixing Machine,66rpm Horizontal Ribbon Mixer |
||
Product Description
Horizontal Ribbon paddle Mixing Blending Machine For Dry Wet Powder Granule Paste
Horizontal ribbon mixer consists of transmission parts, double ribbon agitators and U-shape cylinder. In the direction of rotation, the outer ribbon pushes materials from both ends to the middle, while the inner ribbon pushes materials from the middle to both ends. Ribbon wind with different angle direction carries the materials flowing in different directions. Through continuous convective circulation, the materials are sheared.
Product Working Principle
WLDH series horizontal double blade ribbon blender mixer machine consists of a U-shaped horizontal trough and a specially fabricated agitator. A ribbon agitator consists of a set of inner and outer helical agitator. The outer ribbon moves materials in one direction and the inner ribbon moves the materials in the opposite direction.The ribbon ratates at approx. 45 RPM moves materials both radially and laterally to insure thorough blends in short cycle times. WLDH series horizontal double blade ribbon blender mixer machine is widely used to mix free-flowing powders, granules, small liquid additives to achieve paste and slurry product in food, chemical, and construction line.
Technical Advantages
Technical Parameters
| Model | WLDH-0.1 | WLDH-0.3 | WLDH-0.5 | WLDH-1 | WLDH-1.5 | WLDH-2 | WLDH-3 | WLDH-4 | WLDH-6 | WLDH-8 | WLDH-10 |
| Mixed amount/batch(kg) | 30-50 | 100-150 | 200-300 | 400-600 | 600-900 | 800-1200 | 1200-1800 | 1600-2400 | 2400-3600 | 3200-4800 | 4000-6000 |
| Equipped power(kw) | 1.5-4 | 3-5.5 | 4-11 | 7.5-15 | 11-18.5 | 15-22 | 18.5-30 | 22-37 | 37-55 | 37-55 | 45-75 |
| Weight(kg) | 420 | 850 | 1060 | 1790 | 1900 | 2750 | 3500 | 4280 | 5300 | 6800 | 7800 |
Product More Details
Product Show
electrical, steam, natural gas or other
