Zinc Stearate Micron Powder Grinding Machine 3800r/min
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | ACM-30 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Zinc Stearate Micron Powder Grinding Machine Air Classifier Mill | Application: | Medicine Processing,Chemicals Processing, Plastics Processing, Food Processing |
|---|---|---|---|
| Model Type: | ACM-30 | Production Capacity: | 30-800kg/h |
| Feeding Size: | <10mm | Discharge Size: | 60-450mesh |
| Total Power: | 46kw | Main Speed: | 3800r/min |
| Weight: | 2800kg | Overall Dimension: | 6640x1300x3960mm |
| Highlight: | Zinc Stearate Powder Grinding Machine,Micron Powder Grinding Machine,Air Classifier Mill 3800r/min |
||
Product Description
Zinc Stearate Micron Powder Grinding Machine Air Classifier Mill
This machine consisted of the main motor, auxiliary motor and electrical control cabinet with the capabilities of winnowing, non-sieve or mesh, equality of granule size and continuous processing etc. It meets the international advanced level and is suitable for the material grinding by the trade of pharmaceutics, chemical, and foodstuff etc.
Product Features
1) Simple structure, easy in installation and maintenance.
2) Adopting advanced world famous brand motor, electric parts, bearing and operation parts.
3) No dust during production, and dust can be collected in dust collecting box.
4) No need screen, particle size can be changed by change speed.
5) Around mill chamber and bearing, there is water-cooling jacket to cool the machine.
Technical Parameters
| Model | Production capacity(kg/h) | Feeding size(mm) | Discharge motor(mesh) | Total power(kw) | Main speed(r/min) | Overall size(LxWxH)(mm) | Weight(kg) |
| ACM-15 | 10-200 | <10 | 80-320 | 13.5 | ~6000 | 4200*1200*2700 | 850 |
| ACM-20 | 20-300 | <12 | 80-320 | 17.5 | ~4800 | 4700*1250*2900 | 1250 |
| ACM-30 | 30-800 | <10 | 60-450(adjustable) | 46 | 3800 | 6640*1300*3960 | 2800 |
| ACM-60 | 50-1200 | <10 | 60-450(adjustable) | 84.15 | 2800 | 7500*2300*4530 | 4500 |
| ACM-80 | 100-2000 | <15 | 60-450(adjustable) | 145 | 2200 | 9800*2600*6800 | 9500 |
| ACM-110 | 200-3000 | <20 | 60-450(adjustable) | 230 | 1480 | 13000*3500*7200 | 16000 |
Product Work Principle

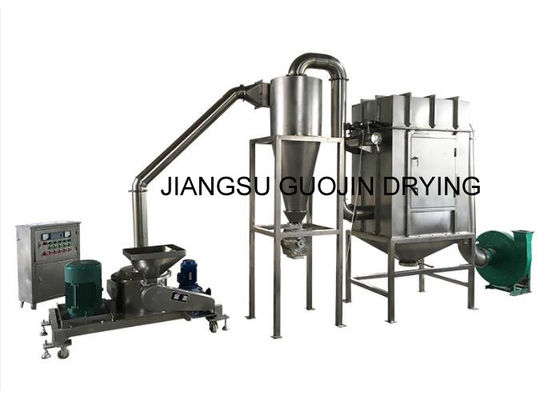

The ultra-fine grinder is a vertical axis reflecting type grinder that can simultaneously complete two processing steps of fine grinding and fine separation. It consists of the machine body, machine frame, feeding device, crushing device, discharge pipe, transmission device and motor, and is composed of main machine, dust collector, high-pressure centrifugal fan, air lock, cyclone collector, electric control cabinet and complete air turbine micro powder unit. The granularity can be arbitrarily adjusted without stopping the machine. The product has a uniform particle size and a fineness of 80-320 mesh. The machine has a self-cooling function.

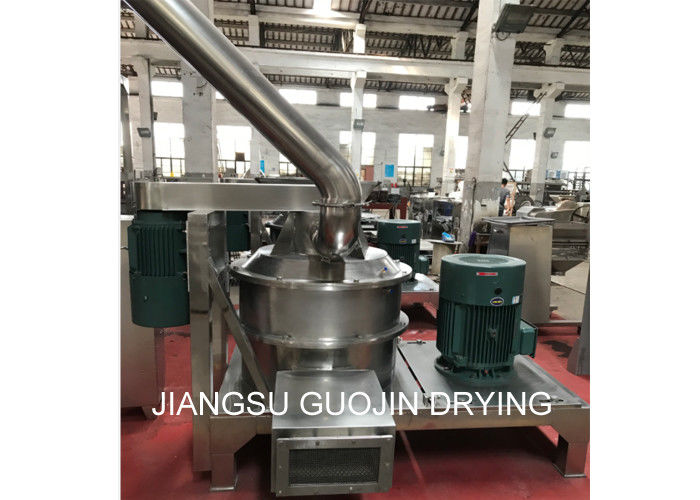

Product Show
electrical, steam, natural gas or other
