17.5KW 300kg/h Ultra Fine Powder Grinder For Foodstuff
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | ACM-20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Air Classifier Mill ACM Grinder Ultra Fine Powder Grinder | Application: | Medicine Processing,Chemicals Processing, Plastics Processing, Food Processing |
|---|---|---|---|
| Model Type: | ACM-20 | Production Capacity: | 20-300 Kg/h |
| Feeding Size: | <12 Mm | Discharge Size: | 80-320 Mesh |
| Total Power: | 17.5 Kw | Main Speed: | 4800 R/min |
| Weight: | 1250 Kg | Overall Dimension: | 4700x1250x2900 Mm |
| Highlight: | 300kg/h Ultra Fine Powder Grinder,17.5KW Ultra Fine Powder Grinder,Foodstuff ACM Grinder |
||
Product Description
Air Classifier Mill ACM Grinder Ultra Fine Powder Grinder
This machine consisted of the main motor, auxiliary motor and electrical control cabinet with the capabilities of winnowing, non-sieve or mesh, equality of granule size and continuous processing etc. It meets the international advanced level and is suitable for the material grinding by the trade of pharmaceutics, chemical, and foodstuff etc.
Product Features
1.Integration of mill and classifier,it is free from over grinding.
2.Sharp particle size distribution,fineness d97=2～100um is adjustable.
3.Inner temperature is reduced by airflow,and grinding chamber is used water cooling jacket for cooling,suitable for heat-sensitive materials.
4.Negative operation is free of dust pollution.
5.Depolymerizing agglomerated material
6.Grinder equipped with slag discharge device,which can automatic discharge the hard and impurity materials
7.Compact structure.
8.A little wearing parts and easy maintenance.
Technical Parameters
| Model | Production capacity(kg/h) | Feeding size(mm) | Discharge motor(mesh) | Total power(kw) | Main speed(r/min) | Overall size(LxWxH)(mm) | Weight(kg) |
| ACM-15 | 10-200 | <10 | 80-320 | 13.5 | ~6000 | 4200*1200*2700 | 850 |
| ACM-20 | 20-300 | <12 | 80-320 | 17.5 | ~4800 | 4700*1250*2900 | 1250 |
| ACM-30 | 30-800 | <10 | 60-450(adjustable) | 46 | 3800 | 6640*1300*3960 | 2800 |
| ACM-60 | 50-1200 | <10 | 60-450(adjustable) | 84.15 | 2800 | 7500*2300*4530 | 4500 |
| ACM-80 | 100-2000 | <15 | 60-450(adjustable) | 145 | 2200 | 9800*2600*6800 | 9500 |
| ACM-110 | 200-3000 | <20 | 60-450(adjustable) | 230 | 1480 | 13000*3500*7200 | 16000 |
Product Work Principle
The ultra-fine grinder is a vertical axis reflecting type grinder that can simultaneously complete two processing steps of fine grinding and fine separation. It consists of the machine body, machine frame, feeding device, crushing device, discharge pipe, transmission device and motor, and is composed of main machine, dust collector, high-pressure centrifugal fan, air lock, cyclone collector, electric control cabinet and complete air turbine micro powder unit. The granularity can be arbitrarily adjusted without stopping the machine. The product has a uniform particle size and a fineness of 80-320 mesh. The machine has a self-cooling function.

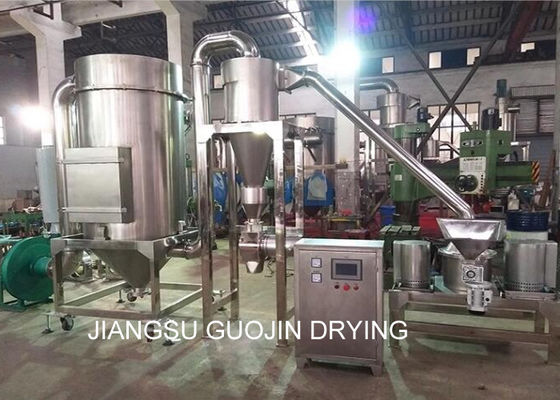

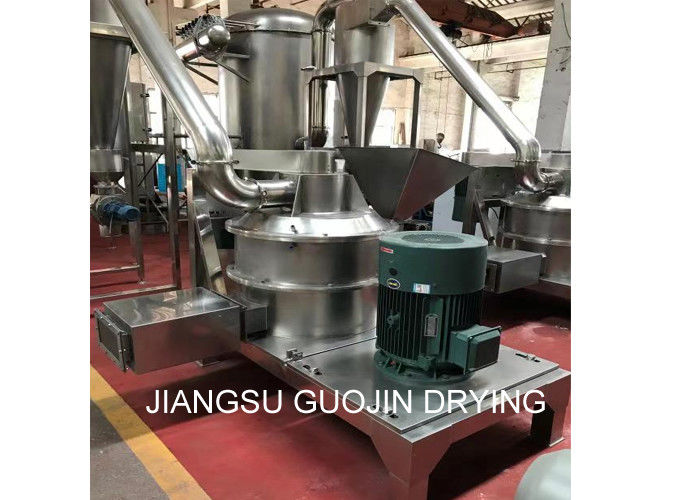

Product Show
