320 Mesh Air Classifying Mill 4800r/min For Mineral Fine Powder
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | ACM-20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Chemicals Non-Metallic Mineral Fine Powder Air Classifying Mill | Application: | Medicine Processing,Chemicals Processing, Plastics Processing, Food Processing |
|---|---|---|---|
| Model Type: | ACM-20 | Production Capacity: | 20-300kg/h |
| Feeding Size: | <12mm | Discharge Size: | 80-320mesh |
| Total Power: | 17.5kw | Main Speed: | 4800r/min |
| Weight: | 1250kg | Overall Dimension: | 4700x1250x2900mm |
| Highlight: | 320 Mesh Air Classifying Mill,Air Classifying Mill 4800r/min,ACM Grinder 4800r/min |
||
Product Description
Chemicals Non-Metallic Mineral Fine Powder Air Classifying Mill
This machine consisted of the main motor, auxiliary motor and electrical control cabinet with the capabilities of winnowing, non-sieve or mesh, equality of granule size and continuous processing etc. It meets the international advanced level and is suitable for the material grinding by the trade of pharmaceutics, chemical, and foodstuff etc.
Technical Advantages
Technical Parameters
| Model | Production capacity(kg/h) | Feeding size(mm) | Discharge motor(mesh) | Total power(kw) | Main speed(r/min) | Overall size(LxWxH)(mm) | Weight(kg) |
| ACM-15 | 10-200 | <10 | 80-320 | 13.5 | ~6000 | 4200*1200*2700 | 850 |
| ACM-20 | 20-300 | <12 | 80-320 | 17.5 | ~4800 | 4700*1250*2900 | 1250 |
| ACM-30 | 30-800 | <10 | 60-450(adjustable) | 46 | 3800 | 6640*1300*3960 | 2800 |
| ACM-60 | 50-1200 | <10 | 60-450(adjustable) | 84.15 | 2800 | 7500*2300*4530 | 4500 |
| ACM-80 | 100-2000 | <15 | 60-450(adjustable) | 145 | 2200 | 9800*2600*6800 | 9500 |
| ACM-110 | 200-3000 | <20 | 60-450(adjustable) | 230 | 1480 | 13000*3500*7200 | 16000 |
Product Work Principle
The ultra-fine grinder is a vertical axis reflecting type grinder that can simultaneously complete two processing steps of fine grinding and fine separation. It consists of the machine body, machine frame, feeding device, crushing device, discharge pipe, transmission device and motor, and is composed of main machine, dust collector, high-pressure centrifugal fan, air lock, cyclone collector, electric control cabinet and complete air turbine micro powder unit. The granularity can be arbitrarily adjusted without stopping the machine. The product has a uniform particle size and a fineness of 80-320 mesh. The machine has a self-cooling function.

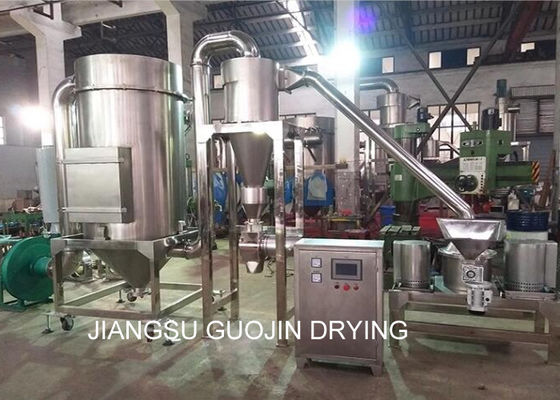

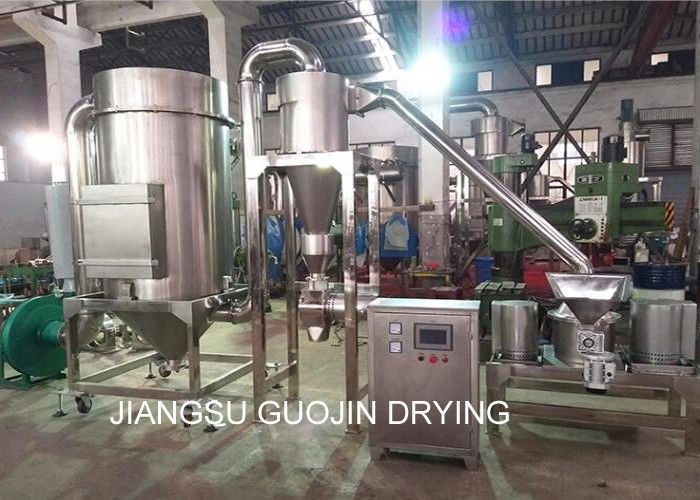

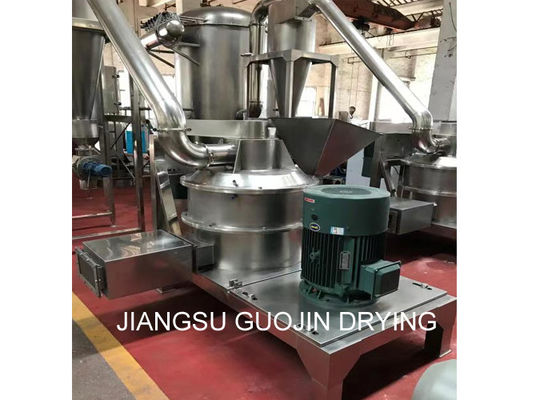

Product Show
