GMP Design 13.5KW Fine Powder ACM Grinding Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | ACM-15 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Fine Powder Air Classifing Grinding Machine | Application: | Medicine Processing,Chemicals Processing, Plastics Processing, Food Processing |
|---|---|---|---|
| Model Type: | ACM-15 | Production Capacity: | 10-200 Kg/h |
| Feeding Size: | <10 Mm | Discharge Size: | 80-320 Mesh |
| Total Power: | 13.5 Kw | Main Speed: | 6000 R/min |
| Weight: | 850 Kg | Overall Dimension: | 4200x1200x2700 Mm |
| Highlight: | Fine Powder ACM Grinding Machine,13.5KW ACM Grinding Machine,GMP ACM Grinder |
||
Product Description
Fine Powder Air Classifing Grinding Machine
This machine consists of three parts: the main machine, the auxiliary sail and the electric control box. The design is compact, the structure is reasonable, with air separation, no sieve and no net. The machine is equipped with a grading mechanism. The crushing and grading can be completed at one time. Negative pressure transportation enables the heat generated in the cavity to be continuously discharged during the crushing process, so it is also suitable for the crushing of thermosensitive materials. The machine has wide application range, continuous production process and adjustable discharging granularity. It can handle the crushing and grading of many materials such as chemicals, food, medicine, cosmetics, fuel, resin, shell, etc. The machine has reached the international advanced level.
Technical Advantages
Technical Parameters
| Model | Production capacity(kg/h) | Feeding size(mm) | Discharge motor(mesh) | Total power(kw) | Main speed(r/min) | Overall size(LxWxH)(mm) | Weight(kg) |
| ACM-15 | 10-200 | <10 | 80-320 | 13.5 | ~6000 | 4200*1200*2700 | 850 |
| ACM-20 | 20-300 | <12 | 80-320 | 17.5 | ~4800 | 4700*1250*2900 | 1250 |
| ACM-30 | 30-800 | <10 | 60-450(adjustable) | 46 | 3800 | 6640*1300*3960 | 2800 |
| ACM-60 | 50-1200 | <10 | 60-450(adjustable) | 84.15 | 2800 | 7500*2300*4530 | 4500 |
| ACM-80 | 100-2000 | <15 | 60-450(adjustable) | 145 | 2200 | 9800*2600*6800 | 9500 |
| ACM-110 | 200-3000 | <20 | 60-450(adjustable) | 230 | 1480 | 13000*3500*7200 | 16000 |
Product Work Principle

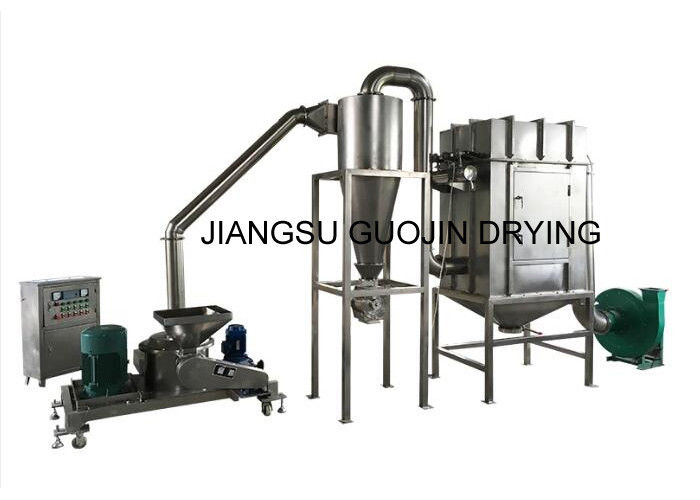

The ultra-fine grinder is a vertical axis reflecting type grinder that can simultaneously complete two processing steps of fine grinding and fine separation. It consists of the machine body, machine frame, feeding device, crushing device, discharge pipe, transmission device and motor, and is composed of main machine, dust collector, high-pressure centrifugal fan, air lock, cyclone collector, electric control cabinet and complete air turbine micro powder unit. The granularity can be arbitrarily adjusted without stopping the machine. The product has a uniform particle size and a fineness of 80-320 mesh. The machine has a self-cooling function.

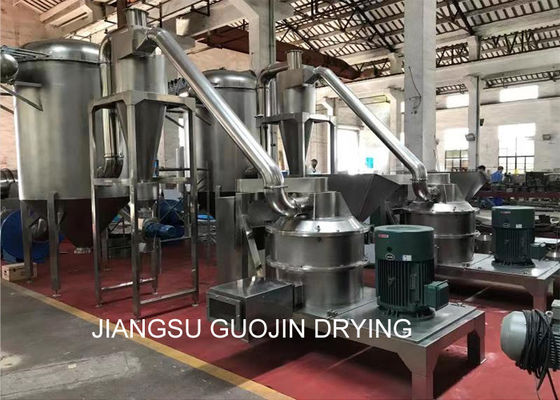

Product Show
