Turmeric Ginger Coarse Crusher 960rpm For Laboratory
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | CSJ-300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Turmeric Ginger Coarse Crusher Herb Grinder Machine | Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing |
|---|---|---|---|
| Model Type: | CSJ-300 | Capacity: | 100-800kg/h |
| Input Granules Size: | <100mm | Crushing Finess: | 0.5-20kg/h |
| Speed Of Principal Axis: | 960rpm | Motor Power: | 4kw |
| Weight: | 300kg | Overall Dimension: | 900x700x1440 Mm |
| Highlight: | Turmeric Ginger Coarse Crusher,Coarse Crusher 960rpm,Turmeric Ginger Coarse Grinder |
||
Product Description
Turmeric Ginger Coarse Crusher Herb Grinder Machine
CSJ herb grinder machine is applied as supporting equipment before fine crushing process in industries of chemical, pharmaceutical, electronics, foodstuff... etc.
CSJ stainless steel herb grinder is used as specialized equipment for coarse crushing of materials in preparatory process, and crush hard and tough materials like plastics, rubber, etc. Especilally, it is not limited by viscosity, hardn ess, softness and fiber shape of material and has good effectt to all materials.
Product Feature
1. Stainless steel coarse crusher is a hammering type mill used to pulverize drugs, chemical materials, food staff and other materials with medium hardness and low viscosity. It is suitable for the suitable for the production in middle and small-batches or sample experiments in laboratories. Materials are fed into the pulverizing chamber by a helical conveyer, and pulverized instead of other energies of other energies of revolving parts of the machine.
2. The stainless steel coarse crusher is simple in structure and the pulverizing chamber can be dismounted assemble and be dismounted and cleaned easily. All the parts in the chamber which contact materials are treated specially and corrosion resistama. As a result, in addition.
3. Any material ,drifted into grind chamber through feed bucket ,punched by knife edges and knife stands ,cut and grinded simultaneously by revolving and fixed knives, and due to the centrifugal force of revolving object ,automatically runs to exit.
Technical Parameters
| Model | CSJ-200 | CSJ-300 | CSJ-400 | CSJ-600 |
| Capacity(kg/h) | 80-300 | 100-800 | 200-1000 | 500-1500 |
| Size of input granules(mm) | <100 | <100 | <100 | <100 |
| Crushing Fineness(kg/h) | 0.5-20 | 0.5-20 | 0.5-20 | 0.5-20 |
| Speed of principal axis(rpm) | 960 | 960 | 960 | 960 |
| Motor power(kw) | 3 | 4 | 5.5 | 11 |
| Overall size(LxWxH)(mm) | 900*600*1440 | 900*700*1440 | 900*800*1440 | 1000*900*1440 |
| Weight(kg) | 200 | 300 | 380 | 500 |
Product Work Principle

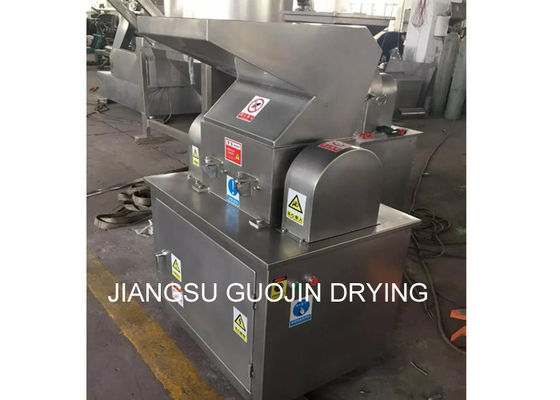

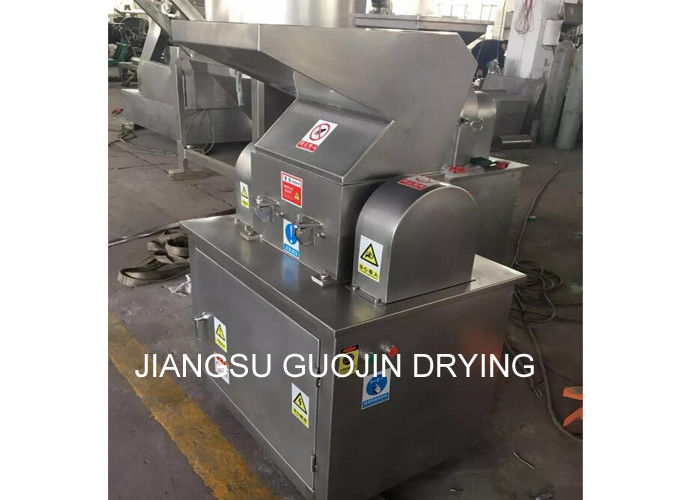

Product Show
