960rpm SS Seaweed Coarse Grinder With 3KW Motor
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | CSJ-200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Stainless Steel Seaweed Coarse Grinder Crusher Rough Mill | Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing |
|---|---|---|---|
| Model Type: | CSJ- 200 | Capacity: | 80-300 Kg/h |
| Input Granules Size: | <100 Mm | Crushing Finess: | 0.5-20 Kg/h |
| Speed Of Principal Axis: | 960 Rpm | Motor Power: | 3 Kw |
| Weight: | 200 Kg | Overall Dimension: | 900x600x1440 Mm |
| Highlight: | SS Coarse Grinder,960rpm Coarse Grinder,960rpm Rough Mill |
||
Product Description

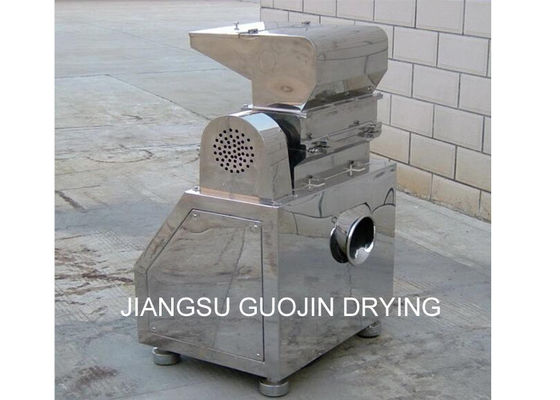

Stainless Steel Seaweed Coarse Grinder Crusher Rough Mill
It’s used as specialized equipment for roughly crushing material in previous process, and can crush hard and tough material like plastics and steel wire. Especially it is not limited by glutinousness ,hardness, softness or fiber shape of material and has good crushing effect to all materials.
Purpose of crusher: To crush big size carrageenan in to small pieces 0.5-20mm.
Product Features
1. Stainless steel coarse crusher is a hammering type mill used to pulverize drugs, chemical materials, food staff and other materials with medium hardness and low viscosity. It is suitable for the suitable for the production in middle and small-batches or sample experiments in laboratories. Materials are fed into the pulverizing chamber by a helical conveyer, and pulverized instead of other energies of other energies of revolving parts of the machine.
2. The stainless steel coarse crusher is simple in structure and the pulverizing chamber can be dismounted assemble and be dismounted and cleaned easily. All the parts in the chamber which contact materials are treated specially and corrosion resistama. As a result, in addition.
3. Any material ,drifted into grind chamber through feed bucket ,punched by knife edges and knife stands ,cut and grinded simultaneously by revolving and fixed knives, and due to the centrifugal force of revolving object ,automatically runs to exit.
Technical Parameters
| Model | CSJ-200 | CSJ-300 | CSJ-400 | CSJ-600 |
| Capacity(kg/h) | 80-300 | 100-800 | 200-1000 | 500-1500 |
| Size of input granules(mm) | <100 | <100 | <100 | <100 |
| Crushing Fineness(kg/h) | 0.5-20 | 0.5-20 | 0.5-20 | 0.5-20 |
| Speed of principal axis(rpm) | 960 | 960 | 960 | 960 |
| Motor power(kw) | 3 | 4 | 5.5 | 11 |
| Overall size(LxWxH)(mm) | 900*600*1440 | 900*700*1440 | 900*800*1440 | 1000*900*1440 |
| Weight(kg) | 200 | 300 | 380 | 500 |
Product Work Principle
The machine has horizontal crushing structure and the whole machine is made of stainless steel. Any raw material, being fed into the grind chamber through the upper feeder, stroked by the revolving and fixed knives, cut and grind and then automatically runs to the exit by the centrifugal force of revolving object. The machine is designed according to "GMP" standard, with the characteristics of compact structure, easy washing, and low noise. So it is the most ideal new product in current crusher market.

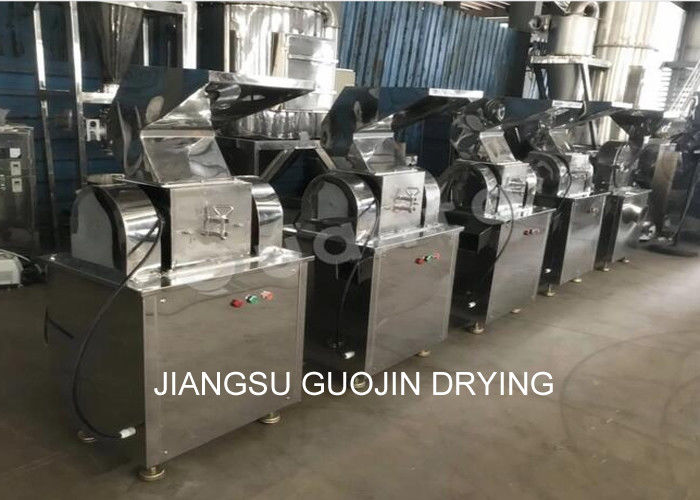

Product Show
