Stainless Steel Universal Pulverizer 1500kg/h With Bag Filter
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | UIM-60B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Stainless Steel 60B Universal Pulverizer With Cyclone&Bag Filter | Application: | Medicine Processing, Chemicals Processing, Food Processing |
|---|---|---|---|
| Model Type: | UIM- 60B | Production Capacity: | 300-1500Kg/h |
| Spindle Rotation Speed: | 3800R/min | Feeding Granularity: | 15MM |
| Crushing Granularity: | 20-120Mesh | Crushing Motor: | 22KW |
| Dust Removal Motor: | 2.2KW | Dimension Of Single Machine: | 850x800x1820 |
| Dimension With Dust Removal: | 1600x900x2300 | ||
| Highlight: | Stainless Steel Universal Pulverizer,Universal Pulverizer 1500kg/h,stainless steel pulverizer machine |
||
Product Description
Stainless Steel 60B Universal Pulverizer With Cyclone&Bag Filter

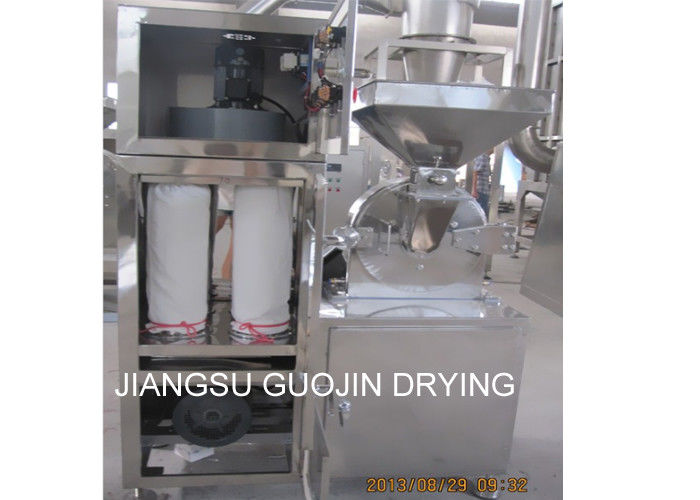

This machine consist of universal pulverizer , dust collecting cabinet and dedusting collector, preventing dust flying during powder grinding, suits for pulverizing sugar, herbs, chemical products, food materials and spices etc into the powder of 20-120mesh.
This machine is widely used for weak current substances and high temperature resistant substances such as chemical industry, medicine(traditional Chinese medicine), food, spices, resin powder, coating powder, etc.
Product Technical Advantage
1. Alloy steel disc and cutter head pins
2. GMP and food grade design
3. Negative working condition can prevent dust and be suitable for heat sensitive material grinding
4. Output size is adjustable by changing filtering sieve
5. Feeding rate can be automatically and accurately controlled
6. Different types of dust collector can be equipped to prevent dusting
7. Air cooling or water cooling can be equippeed
Product Features
1. Provide coarse to fine grinding of soft to medium hard materials into controlled particle sizes
2. Size of output product: 20-120 mesh (adjustable by changing sieves)
3. Capacity: 5-400 kg/h
4. GMP design
5. Different types of dust collector can be equipped
Technical Parameters
| Model | 20B | 30B | 40B | 50B | 60B | 80B | |
| Production capacity(kg/h) | 60-150 | 100-300 | 160-800 | 200-1000 | 300-1500 | 500-2000 | |
| Spindle rotation speed(r/min) | 5300 | 4200 | 3800 | 3200 | 2800 | 2200 | |
| Feeding granularity(mm) | 10 | 10 | 10 | 15 | 15 | 15 | |
| Crushing granularity(目) | 20-150 | 20-120 | 20-120 | 20-120 | 20-120 | 20-120 | |
| Crushing motor(kw) | 4 | 5.5 | 7.5 | 18 | 22 | 30 | |
| Dust removal motor(kw) | 0.55 | 0.55 | 1.1 | 1.5 | 2.2 | 3 | |
| Dimensions(LxWxH) | With dust removal | 1100x600x1650 | 1300x700x1850 | 1350x700x1920 | 1400x800x2700 | 1600x900x2300 | 1800x1200x2500 |
| Single machine | 550x500x1200 | 600x550x1320 | 650x600x1550 | 700x650x1680 | 850x800x1820 | 950x900x1960 | |
Product Working Principle
Centrifugal impact pin mill is a compact, high speed impact mill capable of fine size reduction specially designed for chemical, pharmaceutical and food application.

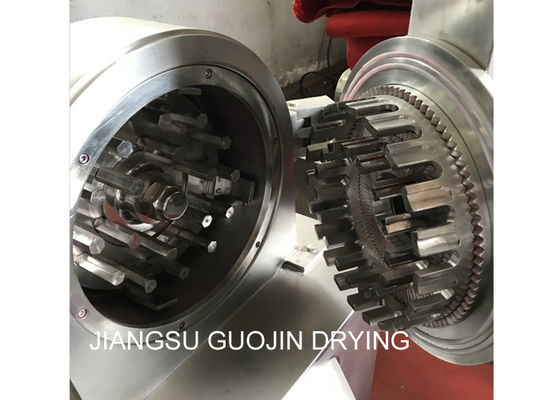

Material is fed into the grinding chamber via the central inlet of the opposing stationary disc by gravity or screw feeder. High speed rotation of the inner disc creates centrifugal force that accelerates bulk material moving from the center to the periphery of the discs at high speed. As materials pass through a path of intermeshing rows of rotating and stationary pins, grinding is done by strong impact and shearing between the pins. The centrifugal force or air stream generated by draft fan force the product go through a filtering sieve which is around the grinding chamber to get required particle size. Different particle size is determined by the speed, number, type of pins and hole size on the sieve.
Centrifugal impact pin mill has been commonly used for coarse to fine grinding of soft to medium hard, brittle and crystalline materials in food, chemical and pharmaceutical industry.
Product Structure:
Product Show
