Foodstuff Universal Shredder 1500kg/h For Fish Powder
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | UIM-60B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | 60B Universal Foodstuff Shredder For Fish Powder | Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing |
|---|---|---|---|
| Model Type: | UIM- 60B | Production Capacity: | 300-1500 Kg/h |
| Spindle Rotation Speed: | 3800 R/min | Feeding Granularity: | 15 Mm |
| Crushing Granularity: | 20-120 Mesh | Crushing Motor: | 22 Kw |
| Dust Removal Motor: | 2.2 Kw | Dimension Of Single Machine: | 850x800x1820 Mm |
| Dimension With Dust Removal: | 1600x900x2300 Mm | ||
| Highlight: | Foodstuff Universal Shredder,Universal Shredder 1500kg/h,Grinding Equipment 1500kg/h |
||
Product Description
60B Universal Foodstuff Shredder For Fish Powder
This machine consist of universal pulverizer , dust collecting cabinet and dedusting collector, preventing dust flying during powder grinding, suits for pulverizing sugar, herbs, chemical products, food materials and spices etc into the powder of 20-150mesh.
This machine is widely used for weak current substances and high temperature resistant substances such as chemical industry, medicine(traditional Chinese medicine), food, spices, resin powder, coating powder, etc.
Product Features
1. This grinding machine is widely used in food, chemical and pharmaceutical industry.
2. For normal material, it can grind into 20-120 mesh.Customer can use different size of sieves to get the fineness they need.
3. This machine has different models, capacity from 20-1000 kg/h, customers can choose the right model according to their requirement.
4. The temperature during the crushing process is less than 40 ℃. For sensitive material, customer can choose water cooler or air cooler.
5. Stable quality of finished product with low consumption to save cost.
6. Simple structure, convenient cleaning and low noise.
7. The machine can be equipped with dust collector, no fine powder flying during the grinding process.
8. We can make the input hopper be magnetic to avoid metal damage if you need.
Technical Parameters
| Model | 20B | 30B | 40B | 50B | 60B | 80B | |
| Production capacity(kg/h) | 60-150 | 100-300 | 160-800 | 200-1000 | 300-1500 | 500-2000 | |
| Spindle rotation speed(r/min) | 5300 | 4200 | 3800 | 3200 | 2800 | 2200 | |
| Feeding granularity(mm) | 10 | 10 | 10 | 15 | 15 | 15 | |
| Crushing granularity(目) | 20-150 | 20-120 | 20-120 | 20-120 | 20-120 | 20-120 | |
| Crushing motor(kw) | 4 | 5.5 | 7.5 | 18 | 22 | 30 | |
| Dust removal motor(kw) | 0.55 | 0.55 | 1.1 | 1.5 | 2.2 | 3 | |
| Dimensions(LxWxH) | With dust removal | 1100x600x1650 | 1300x700x1850 | 1350x700x1920 | 1400x800x2700 | 1600x900x2300 | 1800x1200x2500 |
| Single machine | 550x500x1200 | 600x550x1320 | 650x600x1550 | 700x650x1680 | 850x800x1820 | 950x900x1960 | |
Product Working Principle
By means of relative motion between movable and fixed discs,material is crushed through impact and friction of the teeth
and impact among the material.The machine is designed according to GMP standard and made of stainless steel 304.The advantages of it are simple structure,high production capacity and convenient cleaning.Currently it is the pretty ideal one among coarse crushing machines.
Product Structure:

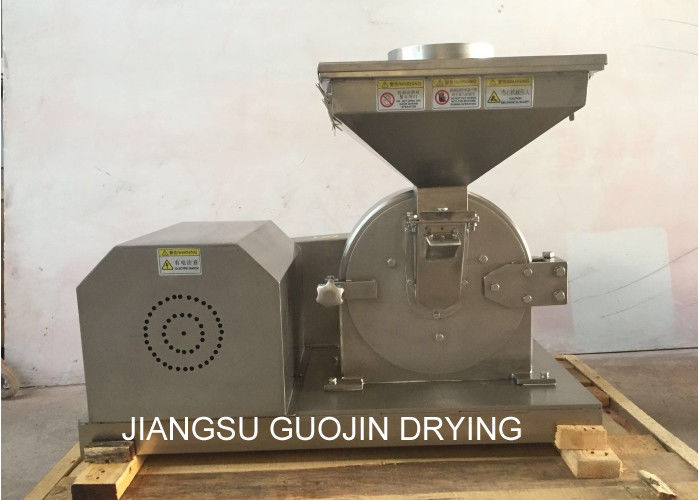

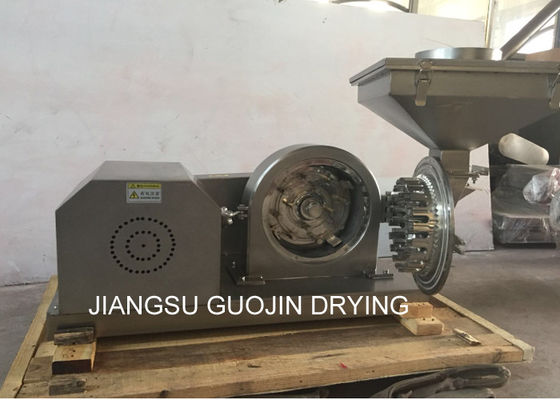

Product Show
electrical, steam, natural gas or other
