3800r/min 120 Mesh Universal Grinder For resin powder
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | UIM-60B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | 60B 20-120mesh Crushing Granularity Universal Grinder | Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing |
|---|---|---|---|
| Model Type: | UIM-60B | Production Capacity: | 300-1500kg/h |
| Spindle Rotation Speed: | 3800r/min | Feeding Granularity: | 15mm |
| Crushing Granularity: | 20-120mesh | Crushing Motor: | 22kw |
| Dust Removal Motor: | 2.2kw | Dimension Of Single Machine: | 850x800x1820mm |
| Dimension With Dust Removal: | 1600x900x2300mm | ||
| Highlight: | 3800r/min Universal Grinder,120 Mesh Resin Powder Universal Grinder,3800r/min Grinding Equipment |
||
Product Description
60B 20-120mesh Crushing granularity Universal Grinder
This machine consist of universal pulverizer , dust collecting cabinet and dedusting collector, preventing dust flying during powder grinding, suits for pulverizing sugar, herbs, chemical products, food materials and spices etc into the powder of 20-150mesh.
This machine is widely used for weak current substances and high temperature resistant substances such as chemical industry, medicine(traditional Chinese medicine), food, spices, resin powder, coating powder, etc.
Product Features
This machine adopts a wind wheel type high-speed rotating knife. The fixed knife performs impact, shearing and grinding. Not only is the grinding effect good, but also a strong airflow is generated in the cavity at the grinding time. The heat of the grinding chamber and the finished product flow out of the screen together. The grinding fineness can be determined by changing the screen.
Technical Parameters
| Model | 20B | 30B | 40B | 50B | 60B | 80B | |
| Production capacity(kg/h) | 60-150 | 100-300 | 160-800 | 200-1000 | 300-1500 | 500-2000 | |
| Spindle rotation speed(r/min) | 5300 | 4200 | 3800 | 3200 | 2800 | 2200 | |
| Feeding granularity(mm) | 10 | 10 | 10 | 15 | 15 | 15 | |
| Crushing granularity(目) | 20-150 | 20-120 | 20-120 | 20-120 | 20-120 | 20-120 | |
| Crushing motor(kw) | 4 | 5.5 | 7.5 | 18 | 22 | 30 | |
| Dust removal motor(kw) | 0.55 | 0.55 | 1.1 | 1.5 | 2.2 | 3 | |
| Dimensions(LxWxH) | With dust removal | 1100x600x1650 | 1300x700x1850 | 1350x700x1920 | 1400x800x2700 | 1600x900x2300 | 1800x1200x2500 |
| Single machine | 550x500x1200 | 600x550x1320 | 650x600x1550 | 700x650x1680 | 850x800x1820 | 950x900x1960 | |
Product Working Principle
By means of relative motion between movable and fixed discs,material is crushed through impact and friction of the teeth
and impact among the material.The machine is designed according to GMP standard and made of stainless steel 304.The advantages of it are simple structure,high production capacity and convenient cleaning.Currently it is the pretty ideal one among coarse crushing machines.
Product Structure:

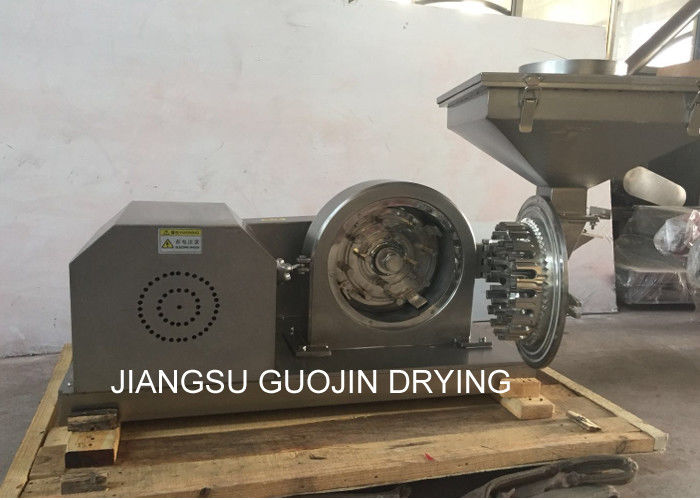

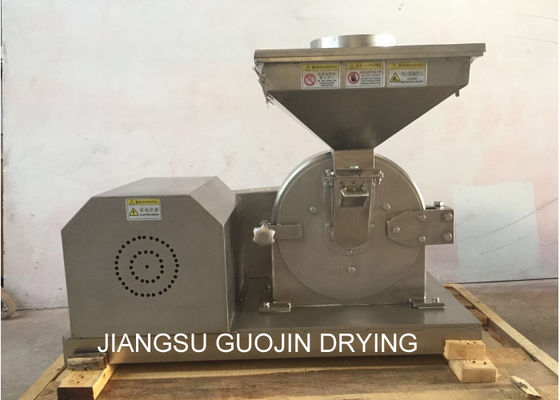

Product Show
electrical, steam, natural gas or other
