150 Mesh Universal Impact Crusher 150kg/h for Chemical Industry
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | UIM-60B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | 60B 20-150mesh Crushing Granularity Universal Impact Crusher | Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing |
|---|---|---|---|
| Model Type: | UIM- 60B | Production Capacity: | 60-150 Kg/h |
| Spindle Rotation Speed: | 5300 R/min | Feeding Granularity: | 10 Mm |
| Crushing Granularity: | 20-150 Mesh | Crushing Motor: | 4 Kw |
| Dust Removal Motor: | 0.55 Kw | Dimension Of Single Machine: | 550x500x1200 Mm |
| Dimension With Dust Removal: | 1100x600x1650 Mm | ||
| Highlight: | Universal Impact Crusher,Impact Crusher 150kg/h,150kg/h Grinding Equipment |
||
Product Description
60B 20-150mesh Crushing granularity Universal Impact Crusher
This machine is widely used for weak current substances and high temperature resistant substances such as chemical industry, medicine(traditional Chinese medicine), food, spices, resin powder, coating powder, etc.
Product Features
This machine adopts a wind wheel type high-speed rotating knife. The fixed knife performs impact, shearing and grinding. Not only is the grinding effect good, but also a strong airflow is generated in the cavity at the grinding time. The heat of the grinding chamber and the finished product flow out of the screen together. The grinding fineness can be determined by changing the screen
Technical Parameters
| Model | 20B | 30B | 40B | 50B | 60B | 80B | |
| Production capacity(kg/h) | 60-150 | 100-300 | 160-800 | 200-1000 | 300-1500 | 500-2000 | |
| Spindle rotation speed(r/min) | 5300 | 4200 | 3800 | 3200 | 2800 | 2200 | |
| Feeding granularity(mm) | 10 | 10 | 10 | 15 | 15 | 15 | |
| Crushing granularity(mesh) | 20-150 | 20-120 | 20-120 | 20-120 | 20-120 | 20-120 | |
| Crushing motor(kw) | 4 | 5.5 | 7.5 | 18 | 22 | 30 | |
| Dust removal motor(kw) | 0.55 | 0.55 | 1.1 | 1.5 | 2.2 | 3 | |
| Dimensions(LxWxH) | With dust removal | 1100x600x1650 | 1300x700x1850 | 1350x700x1920 | 1400x800x2700 | 1600x900x2300 | 1800x1200x2500 |
| Single machine | 550x500x1200 | 600x550x1320 | 650x600x1550 | 700x650x1680 | 850x800x1820 | 950x900x1960 | |
Product Working Principle

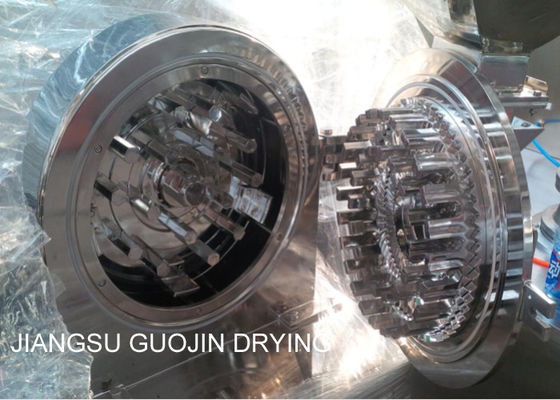

By means of relative motion between movable and fixed discs,material is crushed through impact and friction of the teeth
and impact among the material.The machine is designed according to GMP standard and made of stainless steel 304.The advantages of it are simple structure,high production capacity and convenient cleaning.Currently it is the pretty ideal one among coarse crushing machines.

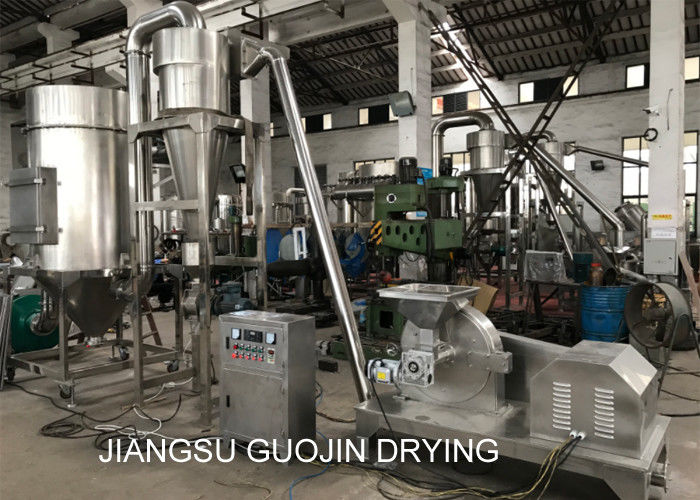

Product Show
