5.5KW Food Dehydrator Machine 32M2 With Conveyor Mesh Belt
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO,CE |
| Model Number: | MPCD-32 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Foodstuff Seaweed Conveyor Mesh Belt Dehydrator Machine | Model Type: | MPCD-32 |
|---|---|---|---|
| Application: | Foodstuff Processing | Loading Area: | 32 M2 |
| Steam Pressure: | 0.4-0.7 Mpa | Steam Consumption: | 240-480 Kg/h |
| Drying Period: | 100-1000 (Stepless) | Evaporation Capacity: | 160-320 Kg.H2O/h |
| Power: | 5.5 KW | Weigth: | 8.5T |
| Overall Dimensions: | 11475x2408x3385mm | Heating Source: | Steam,Natural Gas,LPG,Electricity |
| Highlight: | 5.5KW Food Dehydrator Machine,Food Dehydrator Machine 32M2,5.5KW Electric Dehydrator Machine |
||
Product Description
Foodstuff Seaweed Conveyor Mesh Belt Dehydrator Machine
Raw materials are uniformly fed on the mesh-belt / plate belt by distributor. The mesh-belt / plate belt is drawn and moved inside the dryer by a driving device. The dryer is consisted of several independent drying sections. Hot air circulated separately and independently in each section. Part of damp air will be exhausted by exhausting fan. Hot air penetrates the belt from top to bottom or from bottom to top, and this will complete the heat and mass transfer process. Moving speed of belt is adjustable. The top and bottom circulation units can be freely equipped according to customer's requirement.
MPCD Mesh Belt Dryer Work Principle
1. The dryer consists of feeder, drying bed, heat exchanger, damp exhaust fan, etc.
2. When operation, air will be entered into dryer and heated through heat exchanger. Being adopted scientific and reasonable cycle method, the hot air will pass through raw materials to be dried on the bed and carry out iniform heat exchange. Under the action of cycle fan, the hot air steam inside each unit of the dryer will carry out hot air cycle. Final air with low temperature and high damp will be out. The whole drying process with stably and high effect will be finished.
MPCD Mesh Belt Dryer Technical Parameters
| Type | MPCD-20 | MPCD-25 | MPCD-32 | MPCD-36 | MPCD-48 | MPCD-60 | MPCD-80 |
| Loading area(m2) | 20 | 25 | 32 | 36 | 48 | 60 | 80 |
| Steam pressure(Mpa) | 0.4-0.7 | ||||||
| Steam consumption(kg/h) | 150-300 | 180-375 | 240-480 | 270-540 | 360-720 | 450-900 | 600-1200 |
| Drying period(Min) | 20-200 | 60-600 | 100-1000(Stepless) | ||||
| Evaporating Capacity(kg.H2O/h) | 100-200 | 125-250 | 160-320 | 180-360 | 300-480 | 300-600 | 400-800 |
| Power(kw) | 5.5 | 5.5 | 5.5 | 5.5 | 14.2 | 15.2 | 15.2 |
| Weight(t) | 8 | 8 | 8.5 | 10 | 11 | 13 | 15 |
| Overall Dimension LxWxH(mm) | 8875*2408*3385 | 9875*2408*3385 | 11475*2408*3385 | 11475*2408*3385 | 14675*2408*3385 | 14675*2408*3385 | 15675*2408*3385 |
MPCD Mesh Belt Dryer Feature
1. Amount of air, heating temperature, time of material stay on thebelt and velocity of feeding material can be adjusted in order to obtain the best drying effect.
2. Equipment's configuration is very flexible. It can use the netlike beltwashing system and cooling raw material system.
3. Hot air can be circularly applied, the energy is greatly saved.
4. Unique air dividing device, it makes hot air distribute uniformly; this canguarantee products' quality.
5. Heating source can be selected from steam, conducting heat oil,
electricity, coal furnace and oil burner.
MPCD Mesh Belt Dryer Application
◆MPCD belt dryer is continuous-production drying equipment. The dryer being widely used for drying the piece, strip and particle shape materials in good ventilation. The dryer is suitable for de-watering fruit & vegetable which the moisture content is high and high drying temperature is not allowed. Drying speed of belt dryer is fast, evaporation strength is high and the product quality is good.
◆MPCD belt dryer is widely used and support for drying various kind of material such as pigment, fiber, fruit & vegetable, briquette etc.

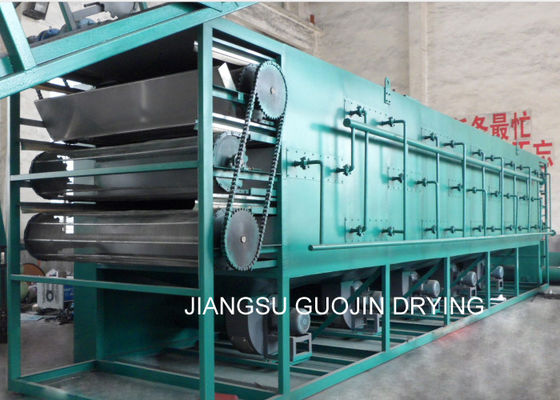

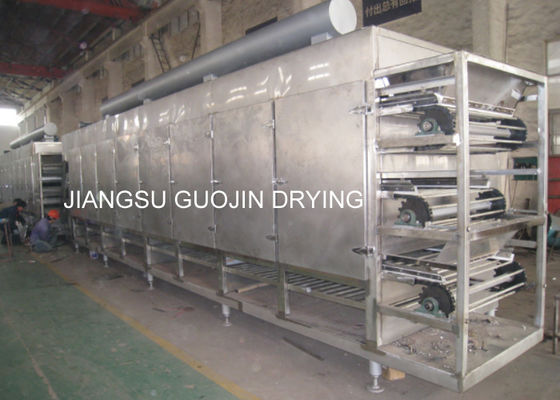

MPCD Mesh Belt Dryer Show
