5.5KW 25M2 Conveyor Mesh Belt Dryer For Foodstuff Processing

5.5KW 25M2 Conveyor Mesh Belt Dryer For Foodstuff Processing

Product Details:

Place of Origin: China
Brand Name: Guojin
Certification: ISO,CE
Model Number: MPCD-25

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export Carton
Delivery Time: 20-30days
Supply Ability: 10 sets per month
Get Best Price Contact Now

Detail Information

Item Name: Tunnel Oven Drying Conveyor Mesh Belt Dryer Model Type: MPCD-25
Application: Foodstuff Processing Loading Area: 25 M2
Steam Pressure: 0.4-0.7 Mpa Steam Consumption: 180-375 Kg/h
Drying Period: 60-600 Min Evaporation Capacity: 125-250 Kg.H2O/h
Power: 5.5KW Weigth: 8t
Overall Dimensions: 9875x2408x3385mm Heating Source: Steam,Natural Gas, LPG, Electricity
Highlight:

5.5KW Conveyor Mesh Belt Dryer

,

25M2 Conveyor Mesh Belt Dryer

,

Foodstuff Processing Mesh Belt Dryer

Product Description

Tunnel Oven Drying Conveyor Mesh Belt Dryer

Raw materials are uniformly fed on the mesh-belt / plate belt by distributor. The mesh-belt / plate belt is drawn and moved inside the dryer by a driving device. The dryer is consisted of several independent drying sections. Hot air circulated separately and independently in each section. Part of damp air will be exhausted by exhausting fan. Hot air penetrates the belt from top to bottom or from bottom to top, and this will complete the heat and mass transfer process. Moving speed of belt is adjustable. The top and bottom circulation units can be freely equipped according to customer's requirement.​





MPCD Mesh Belt Dryer Work Principle

1. The dryer consists of feeder, drying bed, heat exchanger, damp exhaust fan, etc.

2. When operation, air will be entered into dryer and heated through heat exchanger. Being adopted scientific and reasonable cycle method, the hot air will pass through raw materials to be dried on the bed and carry out iniform heat exchange. Under the action of cycle fan, the hot air steam inside each unit of the dryer will carry out hot air cycle. Final air with low temperature and high damp will be out. The whole drying process with stably and high effect will be finished.





MPCD Mesh Belt Dryer Technical Parameters

Type MPCD-20 MPCD-25 MPCD-32 MPCD-36 MPCD-48 MPCD-60 MPCD-80
Loading area(m2) 20 25 32 36 48 60 80
Steam pressure(Mpa) 0.4-0.7
Steam consumption(kg/h) 150-300 180-375 240-480 270-540 360-720 450-900 600-1200
Drying period(Min) 20-200 60-600 100-1000(Stepless)
Evaporating Capacity(kg.H2O/h) 100-200 125-250 160-320 180-360 300-480 300-600 400-800
Power(kw) 5.5 5.5 5.5 5.5 14.2 15.2 15.2
Weight(t) 8 8 8.5 10 11 13 15
Overall Dimension LxWxH(mm) 8875*2408*3385 9875*2408*3385 11475*2408*3385 11475*2408*3385 14675*2408*3385 14675*2408*3385 15675*2408*3385







MPCD Mesh Belt Dryer Feature

◆◆ Different heating and circulation method is available for choice.
◆◆ Length , width and layer quantity of belt is designed based on production requirement.
◆◆ The machine pre-dehydration process could remove massive moisture on leaf surface, thus reduced the drying strength, and reduced the energy consumption.
◆◆ Special hot air drying system, increase material penetrability and drying rate.
◆◆ The adjustment of belt speed and the different section temperature control, it guaranteed the drying time and material quality and color.
◆◆ Strong magnetism iron removal device is available for choice, it could remove metal impurities effectively.





MPCD Mesh Belt Dryer Application

The Industrial continuous mesh belt dryer machine is an industrial continuous drying equipment. It is widely used for chemical industry, foodstuff industry, pharmaceutical industry, construction materials industry, electronic industry and so on. Especially it is suitable for drying raw materials that are good in breathability and have the shape of pieces or strip of granule. It is also possible to dry the pasted raw materials such as filter cake after shaped through granulator or extruder.





MPCD Mesh Belt Dryer Show

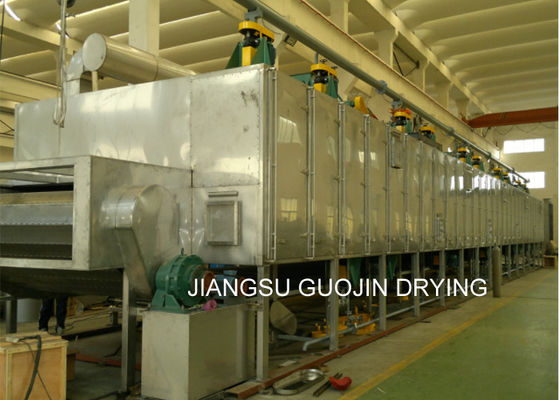

5.5KW 25M2 Conveyor Mesh Belt Dryer For Foodstuff Processing 0

Contact Me

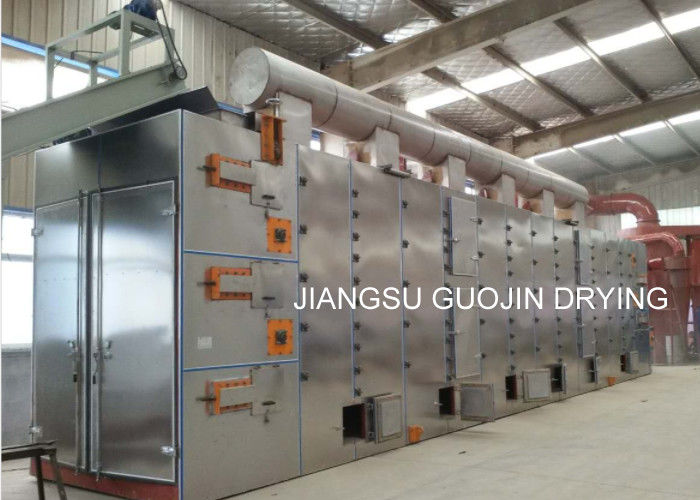

5.5KW 25M2 Conveyor Mesh Belt Dryer For Foodstuff Processing 1
